SWING ARM ('84 A2)
KX500-A1 KX500 1983 USA CANADA

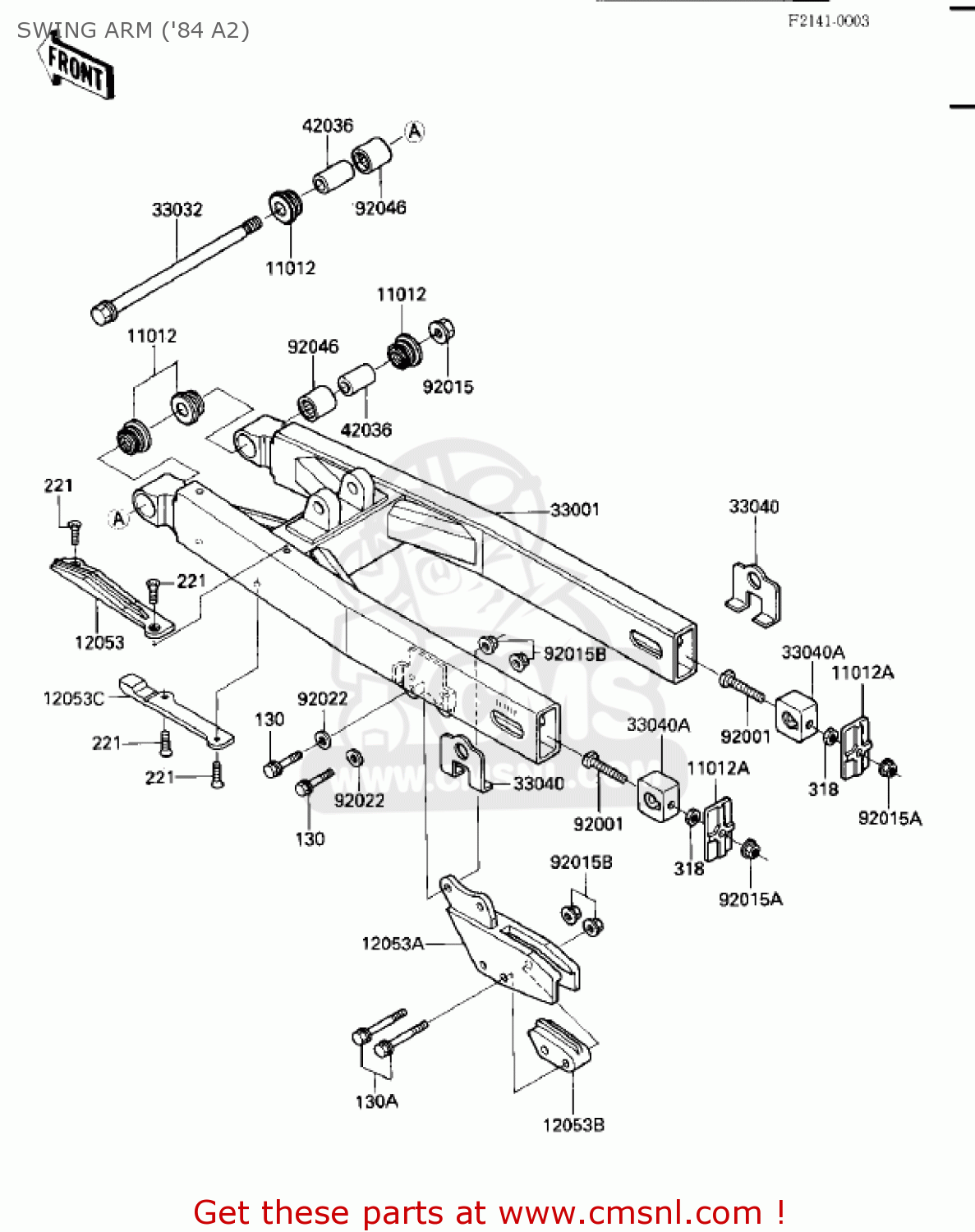

Swing arm ('84 a2) diagram KX500-A1 KX500 1983 USA CANADA
SWING ARM ('84 A2) KX500-A1 KX500 1983 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11012
110121355
ref: 11012
CAP,SWING ARM
€ 12.50
11012A
110121431
ref: 11012A
CAP,CHAIN ADJUSTER
€ 10.00
12053
120531101
ref: 12053
GUIDE-CHAIN,FR,UPP
€ 27.00
12053A
120531136
ref: 12053A
GUIDE-CHAIN,RR
€ 54.00
12053B
120531105
ref: 12053B
GUIDE-CHAIN,RR,INSIDE
€ 27.50
12053C
120531144
ref: 12053C
GUIDE-CHAIN,FR,LWR
€ 21.00
33001
330011205
ref: 33001
ARM-COMP-SWING
€ 430.50
33032
330321042
ref: 33032
SHAFT-SWING ARM
€ 49.00
33040
330401053
ref: 33040
ADJUSTER-CHAIN,OUTSID
€ 10.50
33040A
330401062
ref: 33040A
ADJUSTER-CHAIN,INSIDE
€ 38.00
42036
420361064
ref: 42036
SLEEVE,SWING ARM
€ 14.50
92001
920011976
ref: 92001
BOLT,8X57
€ 6.50
92015
920151407
ref: 92015
NUT,14MM
€ 6.50
92015A
920151143
ref: 92015A
NUT,8MM
€ 0.50
92015B
920151078
ref: 92015B
NUT,6M/M
€ 1.50
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
€ 1.00
92046
920461031
ref: 92046
BEARING-NEEDLE,HMK203
€ 20.50
130
130G0625
ref: 130
BOLT,FLANGED,6X25
€ 0.50
130A
130G0640
ref: 130A
BOLT,FLANGED,6X40
€ 0.50
221
221B0610
ref: 221
SCREW-CNTSNK HD,6X10
€ 2.50
318
318G0800
ref: 318
NUT-HEX-SMALL,8MM
€ 1.00
