SEAT ('83 A1)

KX500-A1 KX500 1983 USA CANADA

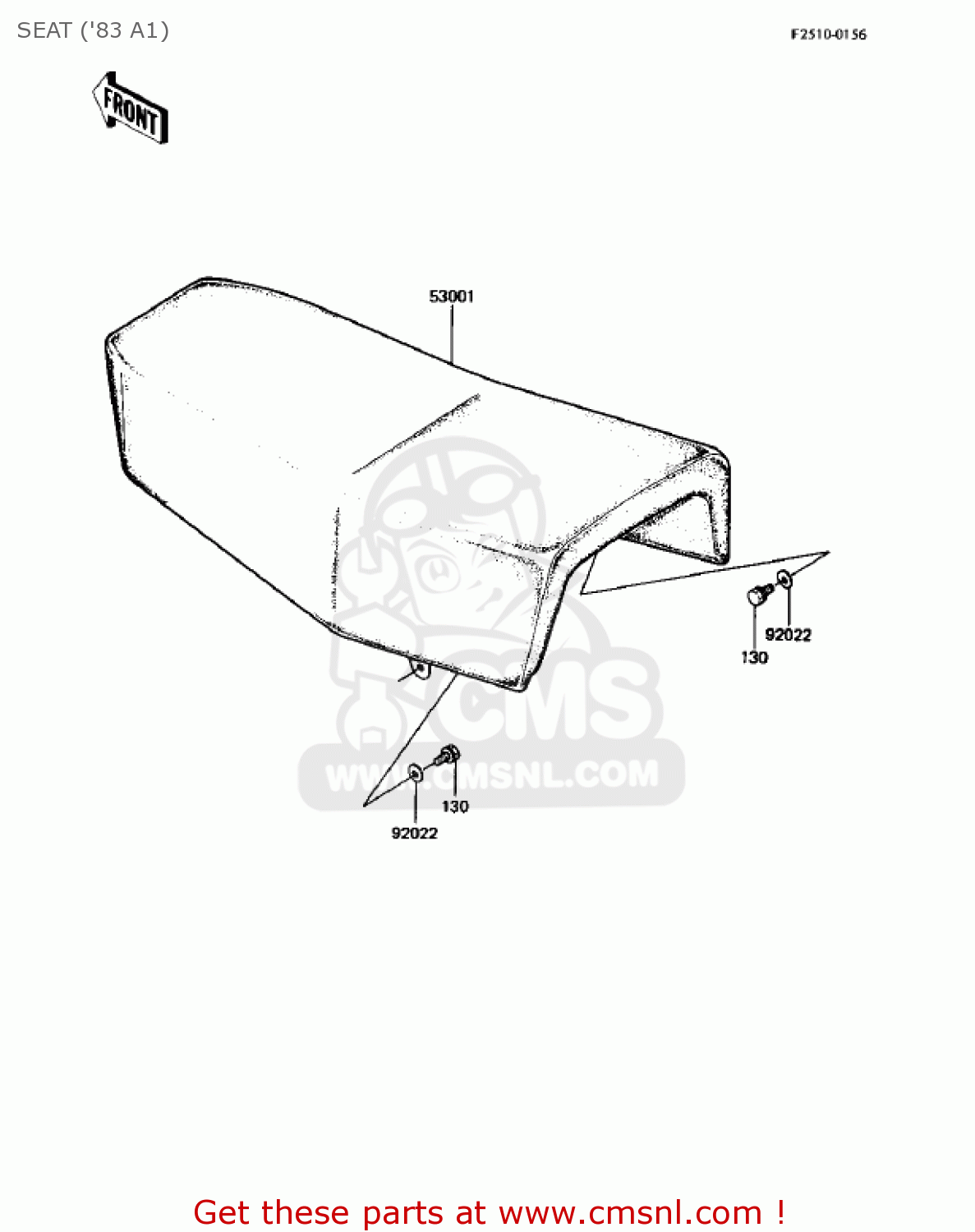

Seat ('83 a1) diagram KX500-A1 KX500 1983 USA CANADA

SEAT ('83 A1) KX500-A1 KX500 1983 USA CANADA

SEAT ('83 A1) KX500-A1 KX500 1983 USA CANADA

prices are in EUR

ref

part #

description

quantity

53001

530011269
ref: 53001

SEAT-ASSY

€ 295.50

92022

92022125
ref: 92022

WASHER,6.5X20X1.6

€ 1.00

130

130G0612
ref: 130

BOLT,FLANGE,6X12

€ 0.50
