CYLINDER HEAD/CYLINDER/REED VALV

KX500-A1 KX500 1983 USA CANADA

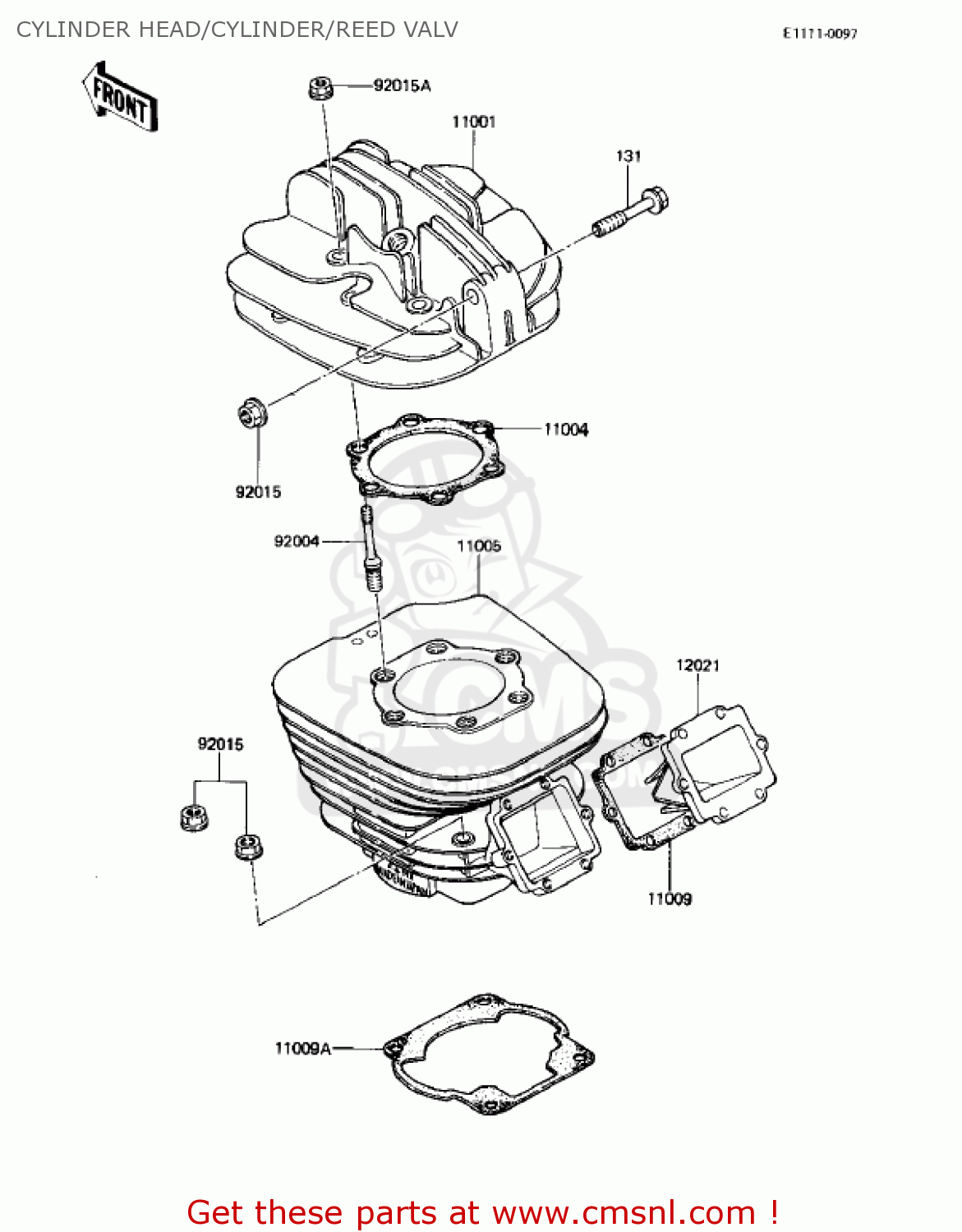

Cylinder head/cylinder/reed valv diagram KX500-A1 KX500 1983 USA CANADA

prices are in EUR

ref

part #

description

quantity

11001

110011095
ref: 11001

HEAD-CYLINDER

€ 157.50

11004

110041053
ref: 11004

GASKET-HEAD,T=1.0 (NAS)

€ 21.00

11005

110051188
ref: 11005

CYLINDER-ENGINE,ELECT

€ 654.00

11009

110091941
ref: 11009

GASKET,REED VALVE (NAS)

€ 6.00

11009A

110091288
ref: 11009A

GASKET,CYLINDER BASE (MCA)

€ 7.50

12021

120211025
ref: 12021

VALVE-ASSY-REED

€ 109.50

92004

920041022
ref: 92004

STUD,CYLINDER

€ 4.50

92015

920151415
ref: 92015

NUT,10MM

€ 3.00

92015A

920151014
ref: 92015A

NUT,8MM

€ 0.50

131

131P1055
ref: 131

BOLT-FLANGED,10X55

€ 3.00
