FENDERS ('83 A1)

KX500-A1 KX500 1983 USA CANADA

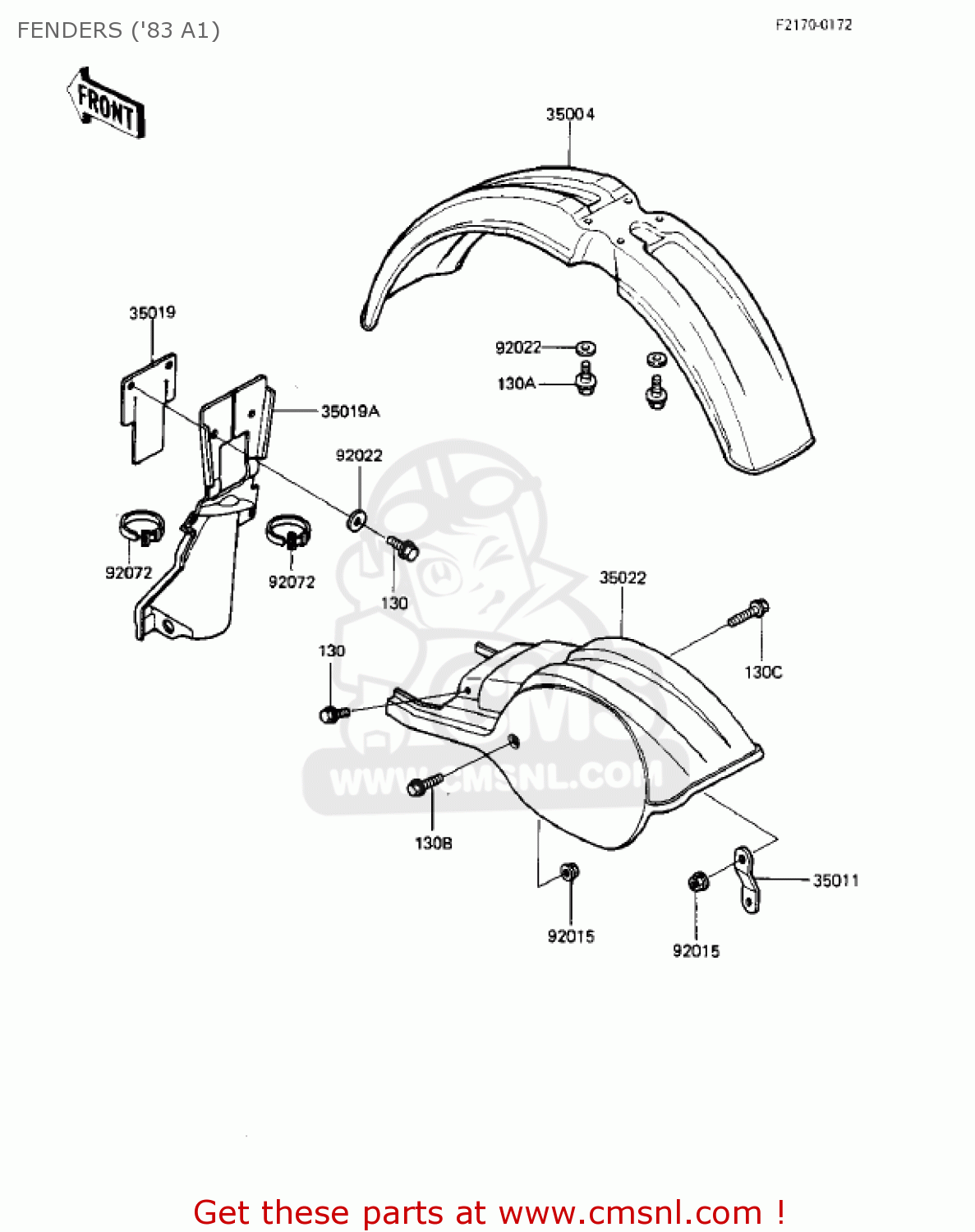

Fenders ('83 a1) diagram KX500-A1 KX500 1983 USA CANADA

prices are in EUR

ref

part #

description

quantity

35004

3500412336W
ref: 35004

FENDER-FRONT,L.GREEN

€ 61.50

35011

350111154
ref: 35011

STAY,MUFFLER

€ 13.00

35019

350191056
ref: 35019

FLAP,FENDER,RR

€ 9.50

35019A

350191062
ref: 35019A

FLAP,FENDER,RR

€ 15.50

35022

350221204AE
ref: 35022

FENDER-COMP-REAR

€ 161.50

92015

920151078
ref: 92015

NUT,6M/M

€ 1.50

92022

92022125
ref: 92022

WASHER,6.5X20X1.6

€ 1.00

92072

92072031
ref: 92072

BAND,MIDDLE

€ 3.00

130

130G0614
ref: 130

BOLT,FLANGED,6X14

€ 0.50

130A

130G0618
ref: 130A

BOLT-FLANGED,6X18

€ 1.00

130B

130G0620
ref: 130B

BOLT,FLANGED,6X20

€ 2.50

130C

130G0630
ref: 130C

BOLT, FLANGED, 6X30

€ 0.50
