BRAKE PEDAL/TORQUE LINK ('84 A2)

KX500-A1 KX500 1983 USA CANADA

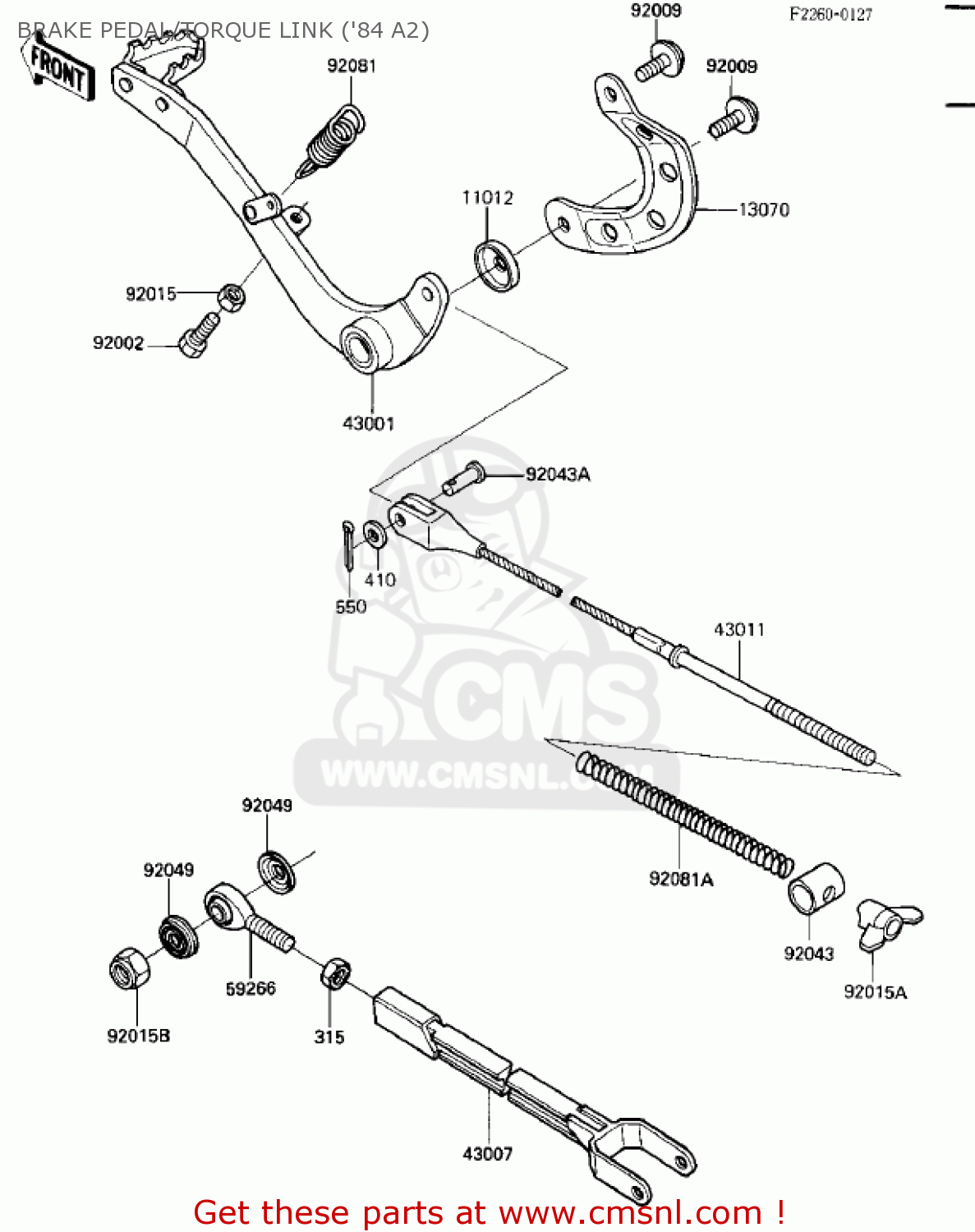

Brake pedal/torque link ('84 a2) diagram KX500-A1 KX500 1983 USA CANADA

BRAKE PEDAL/TORQUE LINK ('84 A2) KX500-A1 KX500 1983 USA CANADA
BRAKE PEDAL/TORQUE LINK ('84 A2) KX500-A1 KX500 1983 USA CANADA
BRAKE PEDAL/TORQUE LINK ('84 A2) KX500-A1 KX500 1983 USA CANADA
prices are in EUR
ref
part #
description
quantity
11012
110121204
ref: 11012
CAP
110121204
€ 3.00
13070
130701072
ref: 13070
GUIDE,BRAKE ROD
€ 30.00
43001
430011159
ref: 43001
LEVER-BRAKE,PEDAL
€ 55.50
43007
430071101
ref: 43007
ROD-TORQUE
€ 86.50
43011
430111107
ref: 43011
ROD-BRAKE
430111107
€ 22.50
59266
592661005
ref: 59266
JOINT BALL
592661005
€ 64.00
92002
920021373
ref: 92002
BOLT,6X20
920021373
€ 2.50
92009
920091286
ref: 92009
SCREW,6X10
920091286
€ 2.50
92015
920151391
ref: 92015
NUT,6MM
920151391
€ 2.00
92015A
920154004
ref: 92015A
NUT,BRAKE ADJUSTING
920154004
€ 4.50
92015B
92019021
ref: 92015B
NUT,LOCK,10M/M
92019021
€ 2.00
92043
920431024
ref: 92043
PIN,BRAKE
920431024
€ 6.00
92043A
92043107
ref: 92043A
PIN,6X17
92043107
€ 4.50
92049
920491072
ref: 92049
OIL SEAL,BALL JOINT
€ 6.00
92081
920811059
ref: 92081
SPRING,RETURN
920811059
€ 5.50
92081A
920811688
ref: 92081A
SPRING,BRAKE ROD
920811688
€ 3.00
315
315B1000
ref: 315
NUT,10MM
315B1000
€ 0.50
410
410B0600
ref: 410
WASHER-PLAIN-SMALL,6M
410B0600
€ 0.50
550
550D2015
ref: 550
PIN-COTTER,2.0X15
550D2015
€ 1.00
