CARBURETOR ('83 A1)
KX500-A1 KX500 1983 USA CANADA

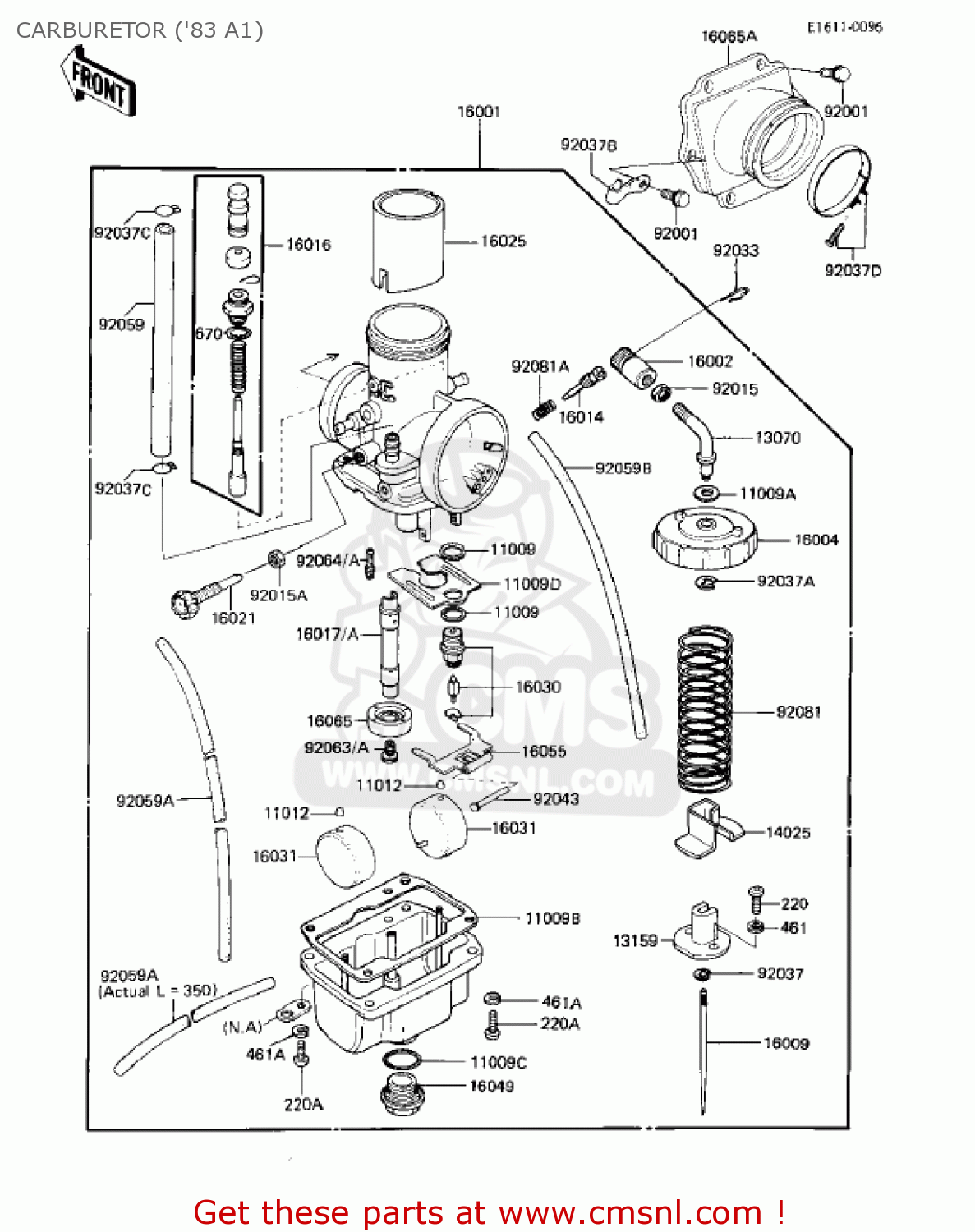

Carburetor ('83 a1) diagram KX500-A1 KX500 1983 USA CANADA
CARBURETOR ('83 A1) KX500-A1 KX500 1983 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091076
ref: 11009
GASKET,FLOAT VALVE (NAS)
€ 2.00
11009A
110091191
ref: 11009A
GASKET,CABLE GUIDE (NAS)
€ 4.50
11009B
16019028
ref: 11009B
GASKET,FLOAT CHAMBER (NAS)
€ 11.50
11009C
16038009
ref: 11009C
GASKET,MAIN JET COVER
€ 5.50
11009D
16038019
ref: 11009D
PLATE,FLOAT CHAMBER
€ 12.00
11012
110121047
ref: 11012
CAP,FLOAT
€ 3.50
13070
130701014
ref: 13070
GUIDE,CABLE
€ 24.50
13159
131591010
ref: 13159
CONNECTOR,THROTTLE
€ 9.00
14025
140251478
ref: 14025
COVER,THROTTLE
€ 5.50
16001
160011583
ref: 16001
CARBURETOR
€ 306.50
16002
160021006
ref: 16002
ADJUSTER-CABLE
€ 6.50
16004
160041010
ref: 16004
TOP,MIXING CHAMBER
€ 26.50
16009
160091126
ref: 16009
NEEDLE-JET,6CG5
€ 26.50
16014
16014006
ref: 16014
SCREW-PILOT AIR
€ 9.00
16016
160161026
ref: 16016
PLUNGER,STARTER
€ 40.50
16017
160171125
ref: 16017
JET-NEEDLE,S-2
€ 21.00
16017A
160171201
ref: 16017A
(OPTION)
JET-NEEDLE,S-4
€ 22.00
16021
160211030
ref: 16021
SCREW-THROTTLE STOP
€ 13.00
16025
160251077
ref: 16025
VALVE-THROTTLE,CA3.0
€ 66.50
16030
160301027
ref: 16030
VALVE-FLOAT,3.3
€ 29.00
16031
16031029
ref: 16031
FLOAT
€ 40.00
16049
16049006
ref: 16049
COVER-MAIN JET
€ 10.50
16055
16055009
ref: 16055
ARM-FLOAT
€ 12.50
16065
160651052
ref: 16065
HOLDER-CARBURETOR,NEE
€ 15.50
16065A
160651059
ref: 16065A
HOLDER-CARBURETOR
€ 88.00
92001
132G0620
ref: 92001
BOLT-FLANGED-SMALL
€ 1.50
92015
16003004
ref: 92015
NUT-CABLE ADJUST LOCK
€ 4.50
92015A
16003006
ref: 92015A
NUT-CABLE ADJUST LOCK
€ 4.50
92033
92036018
ref: 92033
CIRCLIP
€ 2.50
92037
16008010
ref: 92037
CLAMP,E-TYPE
€ 5.00
92037A
16008011
ref: 92037A
CLAMP,CABLE GUIDE
€ 4.50
92037B
92037016
ref: 92037B
CLAMP,WIRING HARNESS
€ 1.50
92037C
92037056
ref: 92037C
CLAMP,FUEL TUBE
€ 3.00
92037D
920371313
ref: 92037D
CLAMP,CARBURETOR HOLD
€ 7.00
92043
16032008
ref: 92043
PIN,FLOAT
€ 4.00
92059
920591026
ref: 92059
HOSE,FUEL,6.5OX11.5O
€ 14.50
92059A
920591142
ref: 92059A
TUBE,3.5X6.5X410
€ 16.50
92059B
920591250
ref: 92059B
TUBE,3.5X6.5X450
€ 3.50
92063
920631019
ref: 92063
(OPTION)
JET-MAIN,#162.5R
€ 11.50
92063A
92063121
ref: 92063A
MAIN JET,#152.5R
€ 7.00
92064
92064044
ref: 92064
JET-PILOT,#45
€ 13.00
92064A
920641062
ref: 92064A
JET-PILOT,#70
€ 7.50
92081
16006028
ref: 92081
SPRING,THROTTLE VALVE
€ 8.50
92081A
16022007
ref: 92081A
SPRING-THR STOP SCREW
€ 5.50
220
220B0308
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
214B0516A
ref: 220A
UNAVAILABLE IN PRICE BOOK
€ 0.50
461
461F0300
ref: 461
WASHER-SPRING,3MM
€ 0.50
461A
461F0500
ref: 461A
WASHER-SPRING,5MM
€ 0.50
670
670B1509
ref: 670
O RING,9MM
€ 1.00
