SEAT ('84 A2)

KX500-A1 KX500 1983 USA CANADA

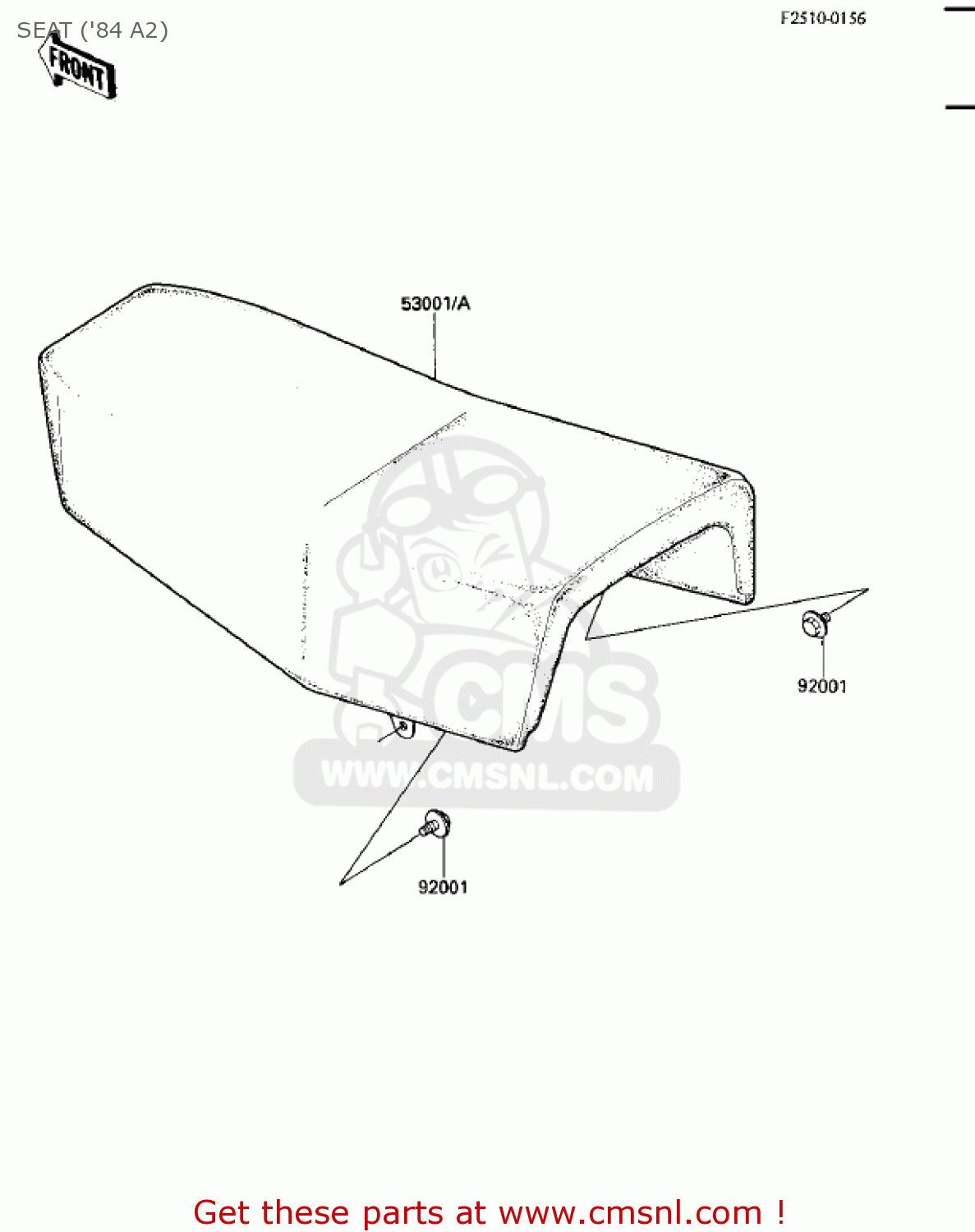

Seat ('84 a2) diagram KX500-A1 KX500 1983 USA CANADA

SEAT ('84 A2) KX500-A1 KX500 1983 USA CANADA

SEAT ('84 A2) KX500-A1 KX500 1983 USA CANADA

prices are in EUR

ref

part #

description

quantity

53001

530011354
ref: 53001

SEAT-ASSY

€ 222.00

53001

530011382
ref: 53001
(OPTION)

SEAT-ASSY

€ 206.00

92001

920011926
ref: 92001

BOLT,6X14

€ 2.50
