MUFFLER ('84 A2)
KX500-A1 KX500 1983 USA CANADA

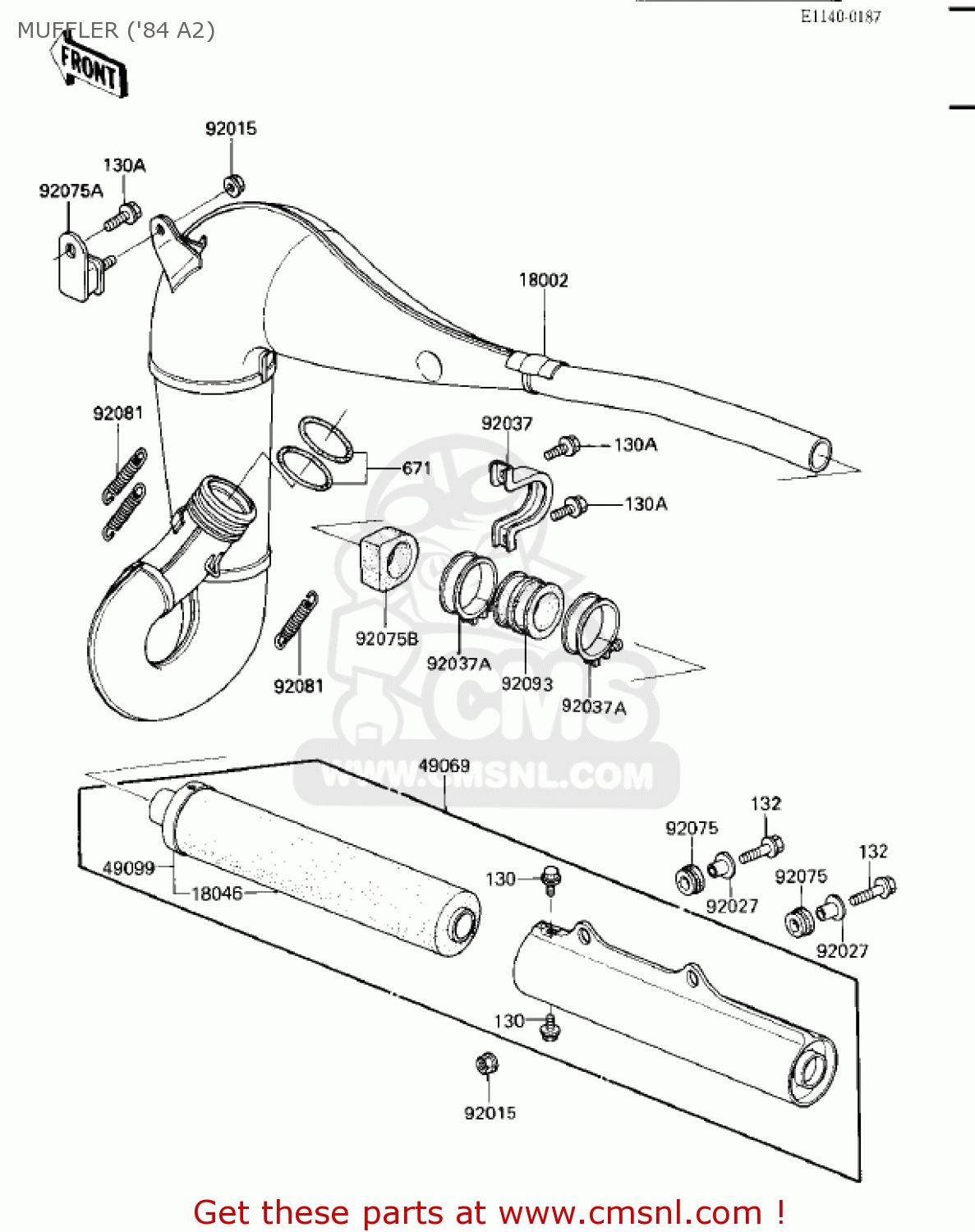

Muffler ('84 a2) diagram KX500-A1 KX500 1983 USA CANADA
MUFFLER ('84 A2) KX500-A1 KX500 1983 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
18002
180021427
ref: 18002
BODY-COMP-MUFFLER
€ 177.00
18046
180461017
ref: 18046
WOOL,MUFFLER BAFFLE P
€ 24.50
49069
490691069
ref: 49069
MUFFLER-ASSY
€ 197.50
49009
490991201
ref: 49009
BAFFLE-PIPE MUFFLER
€ 87.00
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92027
92027194
ref: 92027
COLLAR
€ 3.50
92037
920371494
ref: 92037
CLAMP,MUFFLER
€ 6.00
92037A
92037177
ref: 92037A
CLAMP
€ 7.50
92075
920751123
ref: 92075
DAMPER,RUBBER
€ 3.00
92075A
920751891
ref: 92075A
DAMPER,MUFFLER
€ 21.00
92075B
920751588
ref: 92075B
DAMPER,MUFFLER
€ 10.50
92081
18071003
ref: 92081
SPRING,MUFFLER CONNEC
€ 7.50
92093
920931014
ref: 92093
SEAL,MUFFLER
€ 19.50
130
130G0508
ref: 130
BOLT-FLANGED
€ 0.50
130A
130G0612
ref: 130A
BOLT,FLANGE,6X12
€ 0.50
132
132G0625
ref: 132
BOLT-FLANGED-SMALL
€ 3.00
671
671E2550
ref: 671
O RING,50MM
€ 10.50
