FRONT BRAKE ('84 A2)

KX500-A1 KX500 1983 USA CANADA

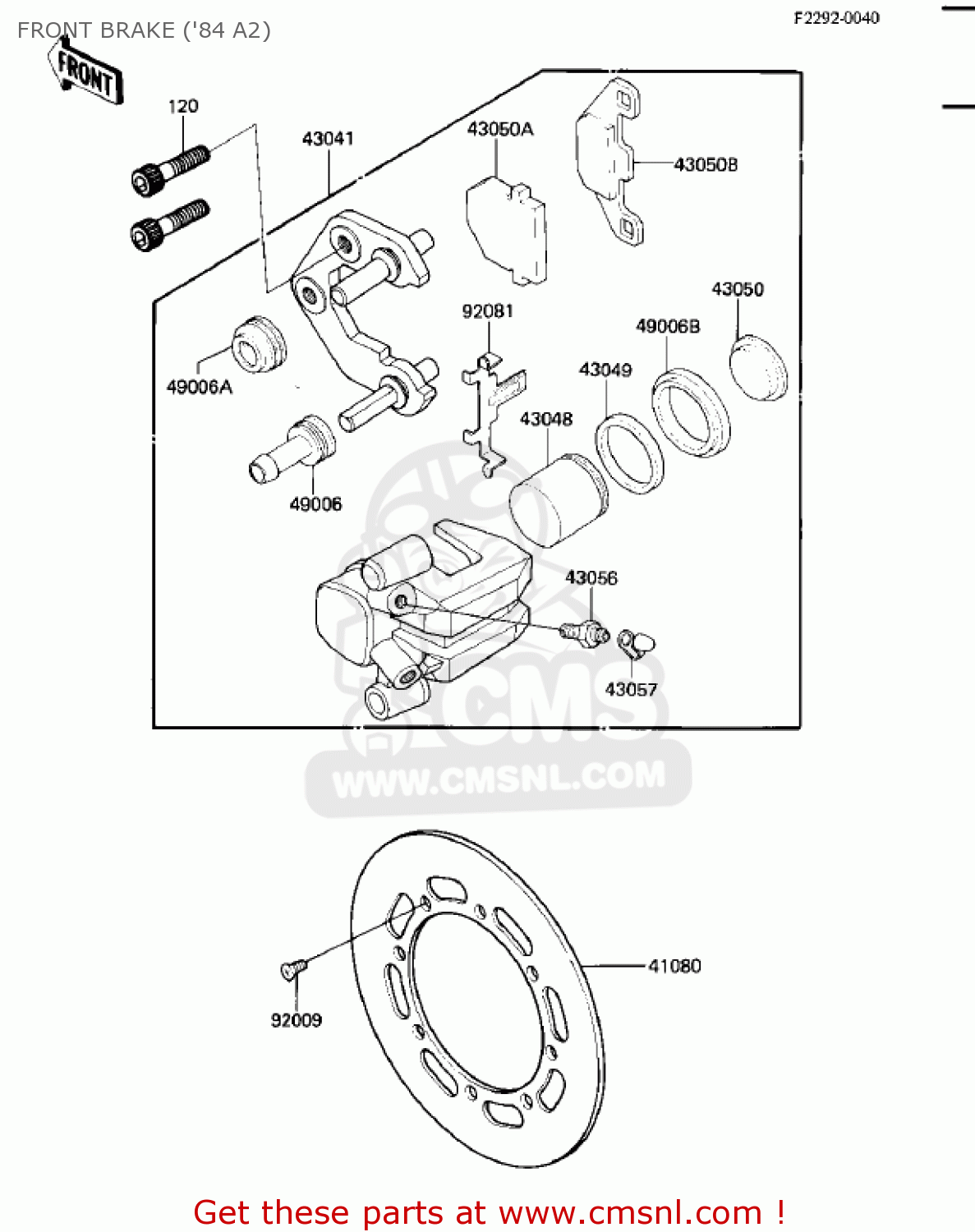

Front brake ('84 a2) diagram KX500-A1 KX500 1983 USA CANADA

prices are in EUR

ref

part #

description

quantity

41080

410801044
ref: 41080

DISK,REAR BRAKE

€ 199.00

43041

430411084
ref: 43041

CALIPER-ASSY

€ 309.00

43048

430481056
ref: 43048

PISTON-CALIPER

€ 66.50

43049

430491027
ref: 43049

PACKING,CALIPER (NAS)

€ 9.00

43050

430501051
ref: 43050

PAD-BRAKE

€ 14.50

43050A

430501063
ref: 43050A

PAD-BRAKE (MCA)

€ 32.50

43050B

430501064
ref: 43050B

PAD-BRAKE (MCA)

€ 32.50

43056

43056003
ref: 43056

BREATHER-BRAKE

€ 16.50

43057

43057003
ref: 43057

CAP-BREATHER

€ 3.00

49006

490061054
ref: 49006

BOOT,CALIPER

€ 8.00

49006A

490061055
ref: 49006A

BOOT,CALIPER

€ 4.50

49006B

490061093
ref: 49006B

BOOT,CALIPER

€ 11.00

92009

920091375
ref: 92009

SCREW,6X10

€ 2.50

92081

920811341
ref: 92081

SPRING

€ 10.00

120

120P0820
ref: 120

BOLT-SOCKET

€ 2.50
