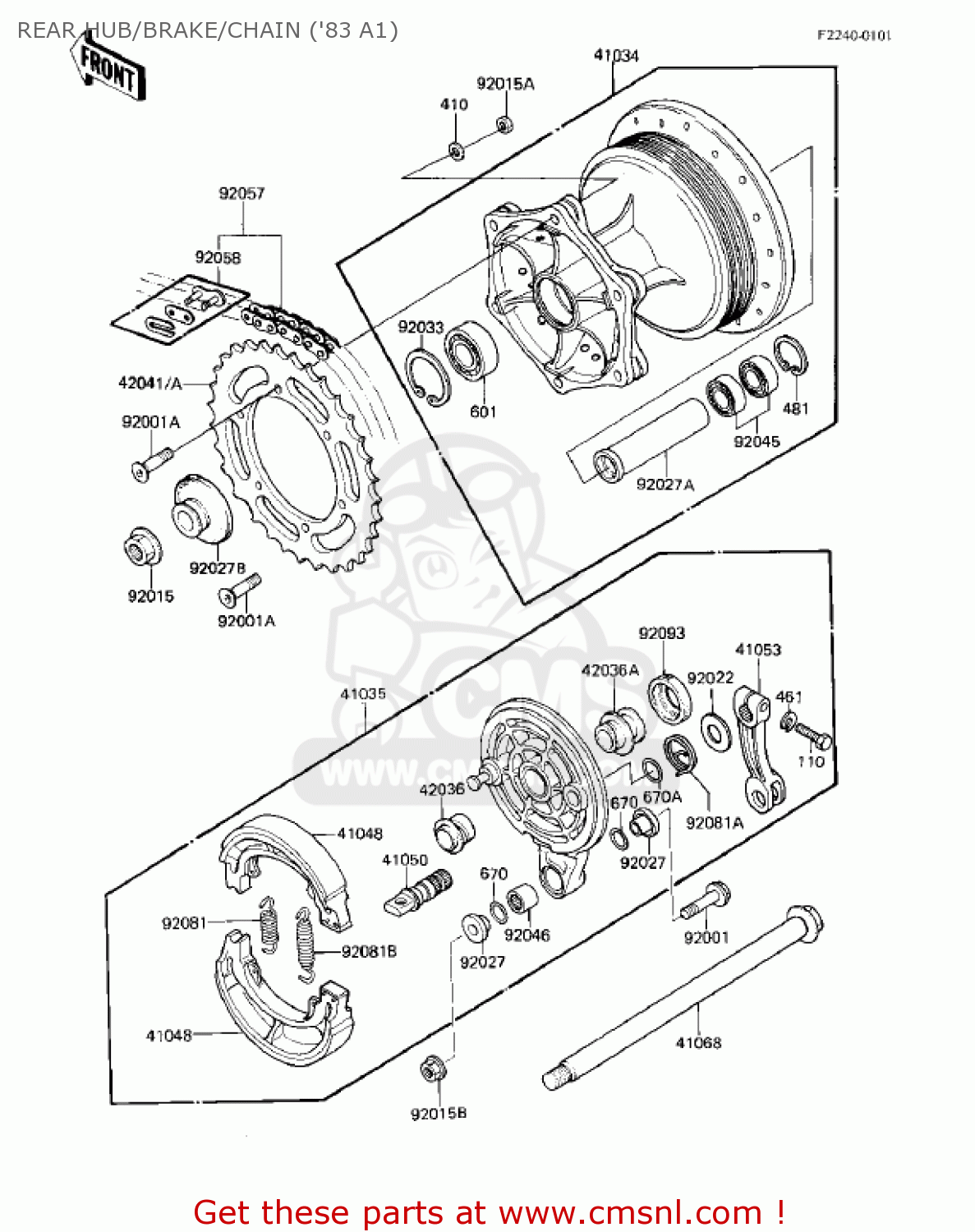

REAR HUB/BRAKE/CHAIN ('83 A1)

ref

part #

description

quantity

41034

410345005
ref: 41034

DRUM-ASSY,REAR BRAKE

€ 366.00

41035

410351107
ref: 41035

PANEL-ASSY-BRAKE,RR

€ 402.50

41048

42019010
ref: 41048

SHOE,BRAKE (MCA)

€ 26.00

41050

410501027
ref: 41050

CAM-BRAKE,RR

€ 29.00

41053

410531034
ref: 41053

LEVER-BRAKE CAM,RR

€ 84.00

41068

410681076
ref: 41068

AXLE,RR,L=264

€ 56.50

42036

420361052
ref: 42036

SLEEVE

€ 44.00

42036A

420361053
ref: 42036A

SLEEVE

€ 34.00

42041

420411127
ref: 42041

SPROCKET-HUB,43T

€ 48.00

42041A

420411154
ref: 42041A
(OPTION)

SPROCKET-HUB,45T

€ 84.00

92001

920011178
ref: 92001

BOLT,FLANGED,8X38

€ 7.00

92001A

920011521
ref: 92001A

BOLT

€ 6.00

92015

920151015
ref: 92015

NUT,16MM

€ 13.50

92015A

920151134
ref: 92015A

NUT,8MM

€ 3.50

92015B

920151143
ref: 92015B

NUT,8MM

€ 0.50

92022

920221402
ref: 92022

WASHER,14X30X0.8

€ 3.00

92027

920271040
ref: 92027

COLLAR,L=11.5

€ 12.50

92027A

920271384
ref: 92027A

COLLAR

€ 38.00

92027B

920271385
ref: 92027B

COLLAR

€ 26.00

92033

920331040
ref: 92033

RING,SNAP,40M/M

€ 4.00

92045

601B6003U
ref: 92045

BEARING-BALL,#6003UC3

€ 21.50

92046

920461009
ref: 92046

BEARING-NEEDLE,HK1216

€ 14.50

92057

920571073
ref: 92057

CHAIN.DID520DS

€ 68.00

92058

920581013
ref: 92058

JOINT-CHAIN,DRIVE

€ 6.50

92081

920811766
ref: 92081

SPRING,BRAKE SHOE

€ 5.50

92081A

920811520
ref: 92081A

SPRING,BRAKE LEVER

€ 4.00

92081B

920811550
ref: 92081B

SPRING,BRAKE SHOE

€ 6.00

92093

920931004
ref: 92093

OIL SEAL

€ 3.50

110

112G0622
ref: 110

BOLT-UPSET

€ 2.50

410

410B0800
ref: 410

WASHER-PLAIN-SMALL,8M

€ 0.50

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50

481

481J3500
ref: 481

CIRCLIP-TYPE-C,35MM

€ 1.00

601

601B6203U
ref: 601

BEARING-BALL,#6203LUC

€ 35.50

670

670B2011
ref: 670

O RING,11MM

€ 1.00

670A

670B2015
ref: 670A

O RING,15MM

€ 1.00

all assemblies
