BRAKE PEDAL/TORQUE LINK ('83 A1)

KX500-A1 KX500 1983 USA CANADA

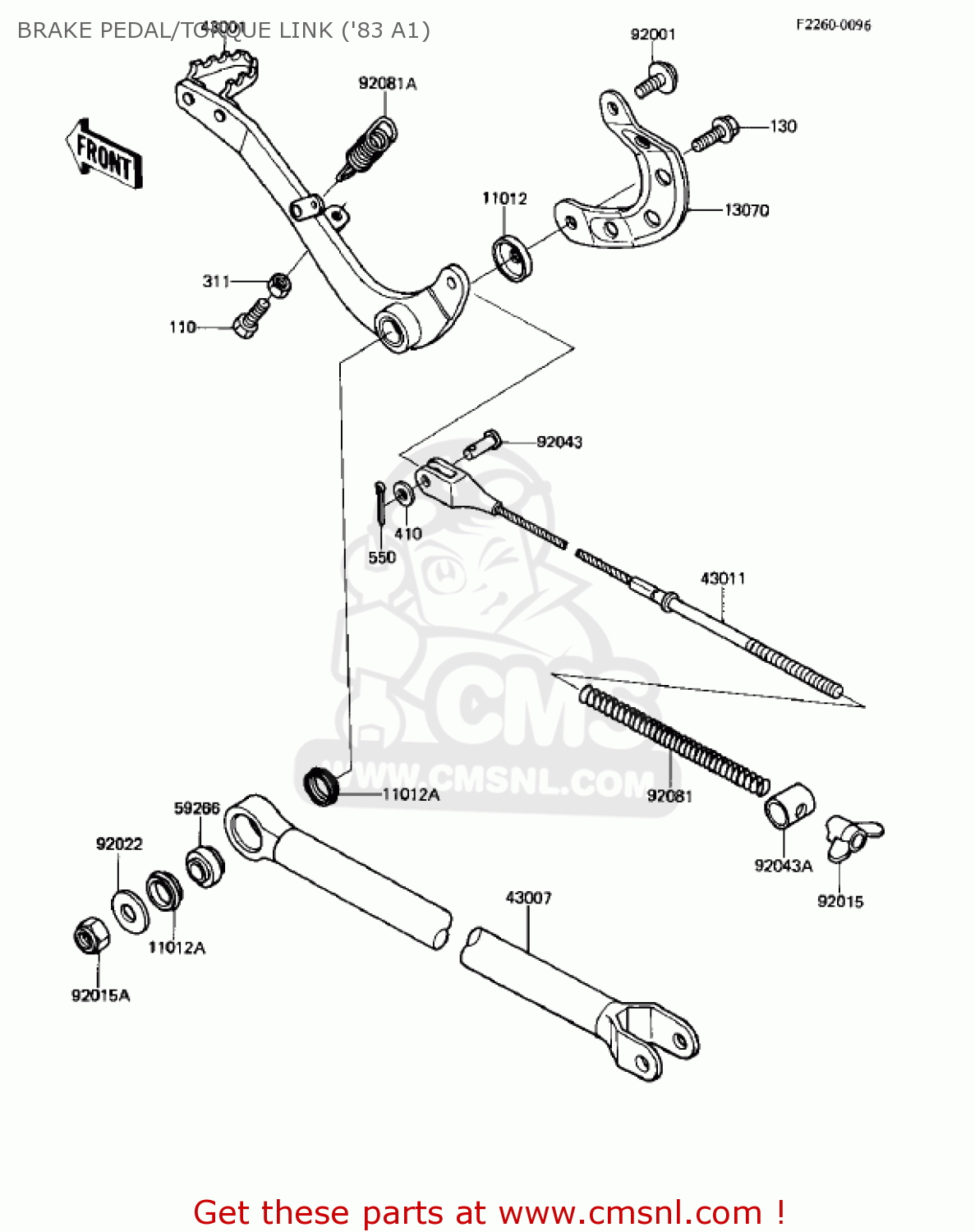

Brake pedal/torque link ('83 a1) diagram KX500-A1 KX500 1983 USA CANADA

BRAKE PEDAL/TORQUE LINK ('83 A1) KX500-A1 KX500 1983 USA CANADA

BRAKE PEDAL/TORQUE LINK ('83 A1) KX500-A1 KX500 1983 USA CANADA

prices are in EUR

ref

part #

description

quantity

11012

110121204
ref: 11012

CAP

€ 3.00

11012A

110121260
ref: 11012A

CAP,TORQUE ROD

€ 10.50

13070

130701072
ref: 13070

GUIDE,BRAKE ROD

€ 30.00

43001

430011103
ref: 43001

LEVER-BRAKE,PEDAL

€ 88.00

43007

430071040
ref: 43007

ROD-TORQUE

€ 98.00

43011

430111058
ref: 43011

ROD-BRAKE

€ 22.50

59266

592661010
ref: 59266

JOINT-BALL,TORQUE ROD

€ 65.00

92001

920091286
ref: 92001

SCREW,6X10

€ 2.50

92015

920154004
ref: 92015

NUT,BRAKE ADJUSTING

€ 4.50

92015A

92019021
ref: 92015A

NUT,LOCK,10M/M

€ 2.00

92022

920221137
ref: 92022

WASHER,10.5X24X1.6

€ 2.50

92043

92043064
ref: 92043

PIN-BRAKE ROD FITTING

€ 4.50

92043A

920431024
ref: 92043A

PIN,BRAKE

€ 6.00

92081

43012001
ref: 92081

SPRING,BRAKE ROD

€ 3.00

92081A

920811059
ref: 92081A

SPRING,RETURN

€ 5.50

110

112G0620
ref: 110

BOLT 6X20

€ 1.00

130

130G0612
ref: 130

BOLT,FLANGE,6X12

€ 0.50

311

311B0600
ref: 311

NUT,6MM

€ 0.50

410

410B0600
ref: 410

WASHER-PLAIN-SMALL,6M

€ 0.50

550

550D2015
ref: 550

PIN-COTTER,2.0X15

€ 1.00
