AIR CLEANER ('83 A1)

KX500-A1 KX500 1983 USA CANADA

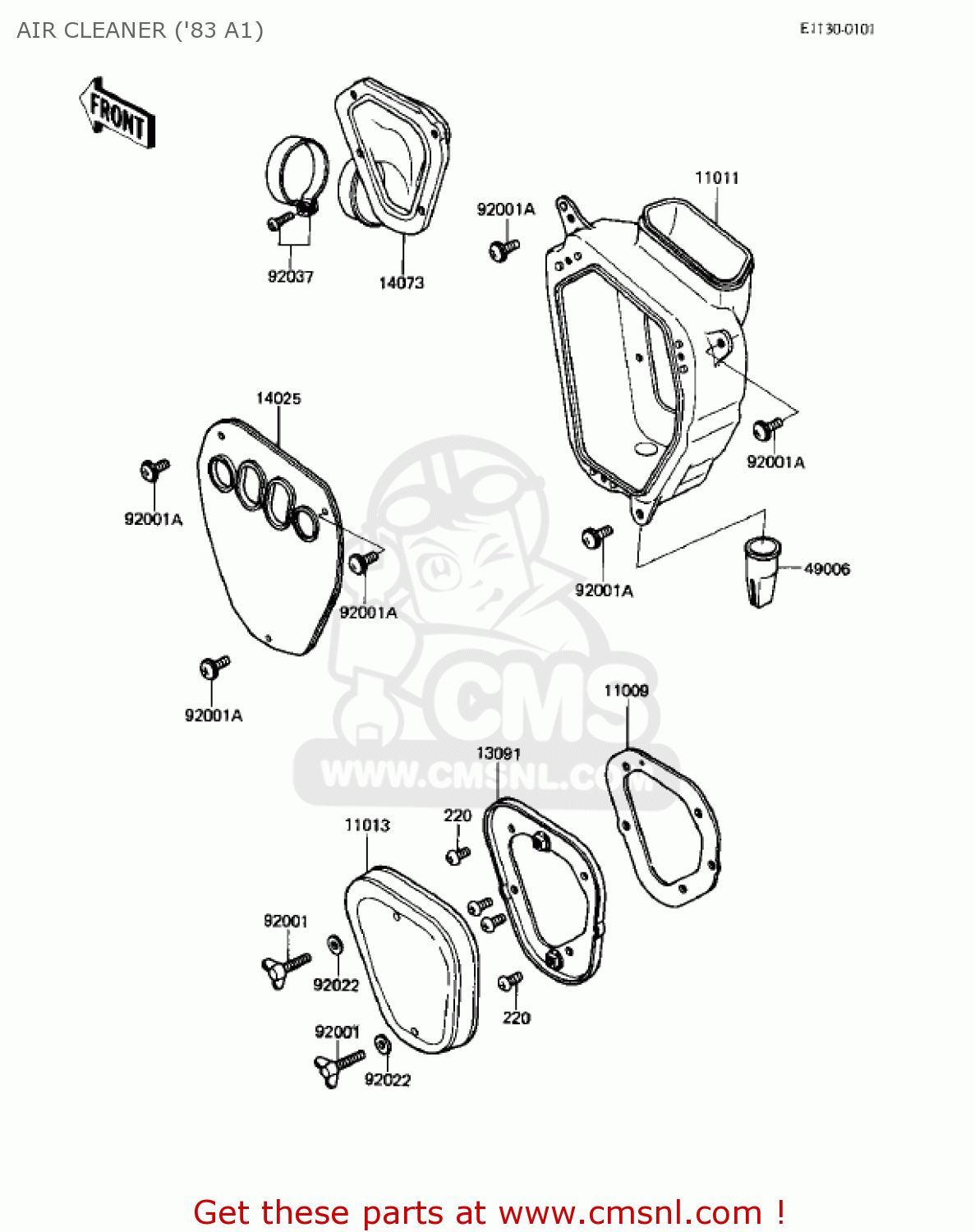

Air cleaner ('83 a1) diagram KX500-A1 KX500 1983 USA CANADA

prices are in EUR

ref

part #

description

quantity

11009

110091317
ref: 11009

GASKET,AIR FILTER CAS (NAS)

€ 4.00

11011

110111115
ref: 11011

CASE-AIR FILTER

€ 65.50

11013

110131063
ref: 11013

ELEMENT-AIR FILTER

€ 34.50

13091

130911156
ref: 13091

HOLDER,AIR FILTER

€ 22.00

14025

140251386
ref: 14025

COVER,AIR FILTER CASE

€ 17.50

14073

140731079
ref: 14073

DUCT,AIR FILTER

€ 48.50

49006

490061012
ref: 49006

BOOT

€ 5.50

92001

920011685
ref: 92001

BOLT,WING,6X40

€ 2.50

92001A

920091287
ref: 92001A

SCREW,6X14

€ 1.50

92022

92022125
ref: 92022

WASHER,6.5X20X1.6

€ 1.00

92037

92037068
ref: 92037

CLAMP

€ 7.50

220

220B0512
ref: 220

SCREW-PAN-CROS

€ 0.50
