OWNER TOOLS ('84 A2)

KX500-A1 KX500 1983 USA CANADA

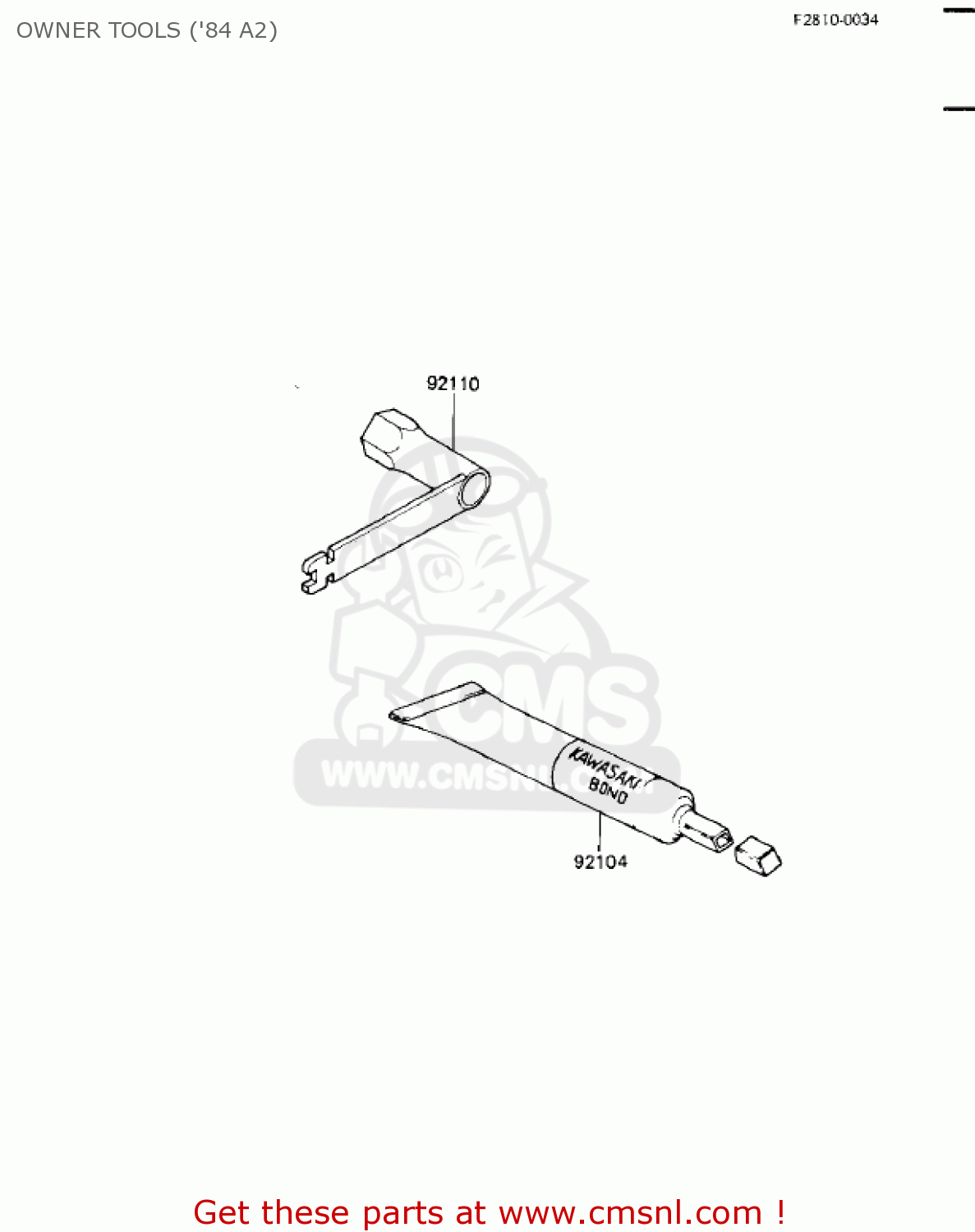

Owner tools ('84 a2) diagram KX500-A1 KX500 1983 USA CANADA

OWNER TOOLS ('84 A2) KX500-A1 KX500 1983 USA CANADA

OWNER TOOLS ('84 A2) KX500-A1 KX500 1983 USA CANADA

prices are in EUR

ref

part #

description

quantity

92104

92104002
ref: 92104

LIQUID GASKET

€ 69.50

92110

921101041
ref: 92110

TOOL-WRENCH,BOX,21MM&

€ 9.00
