GEAR CHANGE MECHANISM ('84 A2)
KX500-A1 KX500 1983 USA CANADA

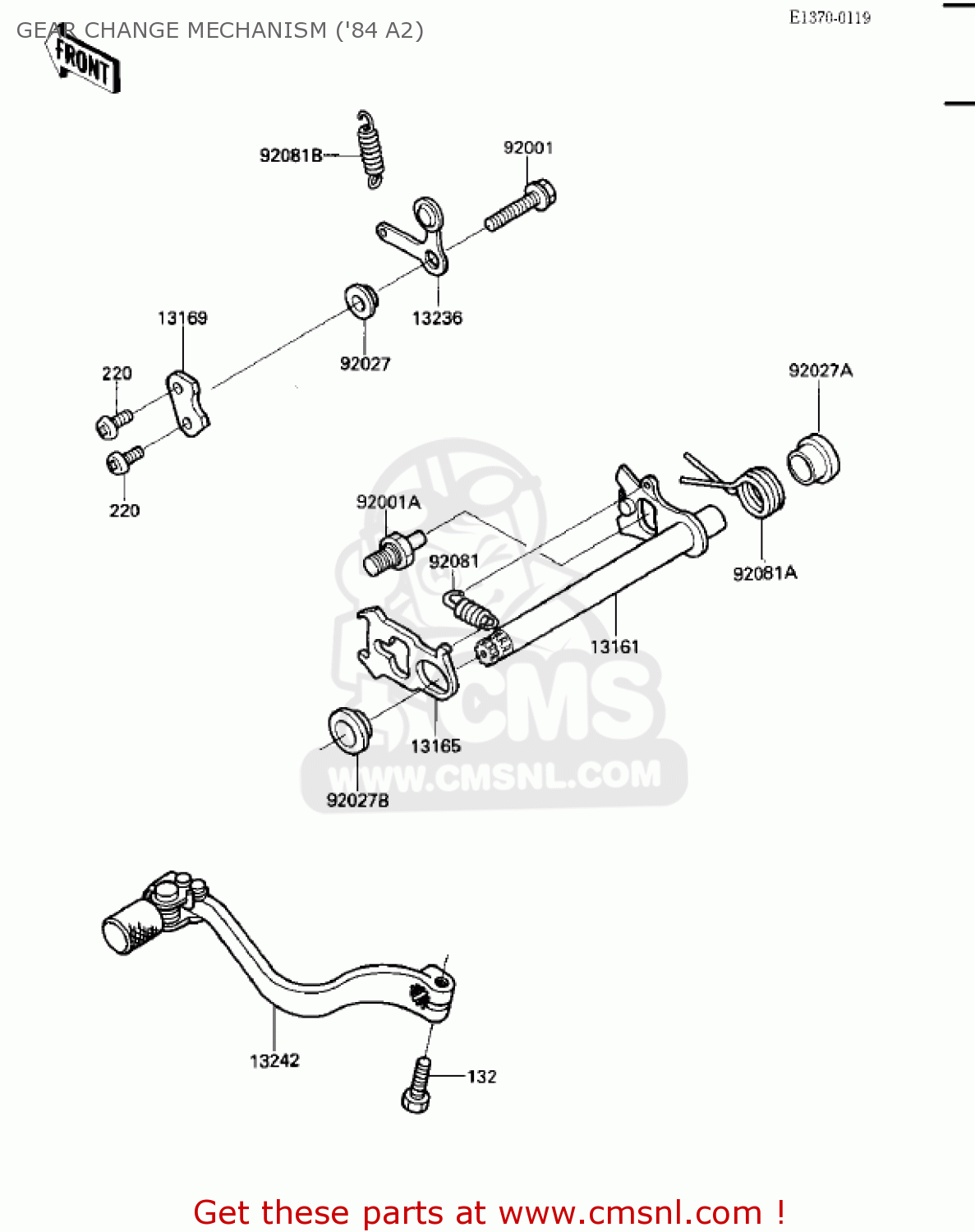

Gear change mechanism ('84 a2) diagram KX500-A1 KX500 1983 USA CANADA
GEAR CHANGE MECHANISM ('84 A2) KX500-A1 KX500 1983 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
13161
131611103
ref: 13161
LEVER-COMP-CHANGE SHA
€ 48.50
13165
131651119
ref: 13165
PAWL,CHANGE LEVER
€ 7.00
13169
13169012
ref: 13169
PLATE,CHANGE DRAM
€ 11.50
13236
132361021
ref: 13236
LEVER,CHANGE DRUM
€ 7.50
13242
132421166
ref: 13242
LEVER-ASSY-CHANGE,PED
€ 39.00
92001
920011352
ref: 92001
BOLT,FLANGED,6X22
€ 2.50
92001A
920011401
ref: 92001A
BOLT,RETURN SPRING
€ 3.00
92027
920271248
ref: 92027
COLLAR
€ 3.50
92027A
920271465
ref: 92027A
COLLAR,CHANGE SHAFT
€ 6.00
92027B
920271512
ref: 92027B
COLLAR,CHANGE SHAFT,L
€ 8.00
92081
92081076
ref: 92081
SPRING-CHANG LEVER
€ 3.50
92081A
920811716
ref: 92081A
SPRING,CHANGE SHAFT R
€ 6.50
92081B
92083012
ref: 92081B
SPRING,CHNG DRUM LEV
€ 3.00
132
132G0616
ref: 132
BOLT-FLANGED-SMALL
€ 1.00
220
220B0614
ref: 220
SCREW-PAN HEAD,6X14
€ 2.00
