SWING ARM ('83 A1)
KX500-A1 KX500 1983 USA CANADA

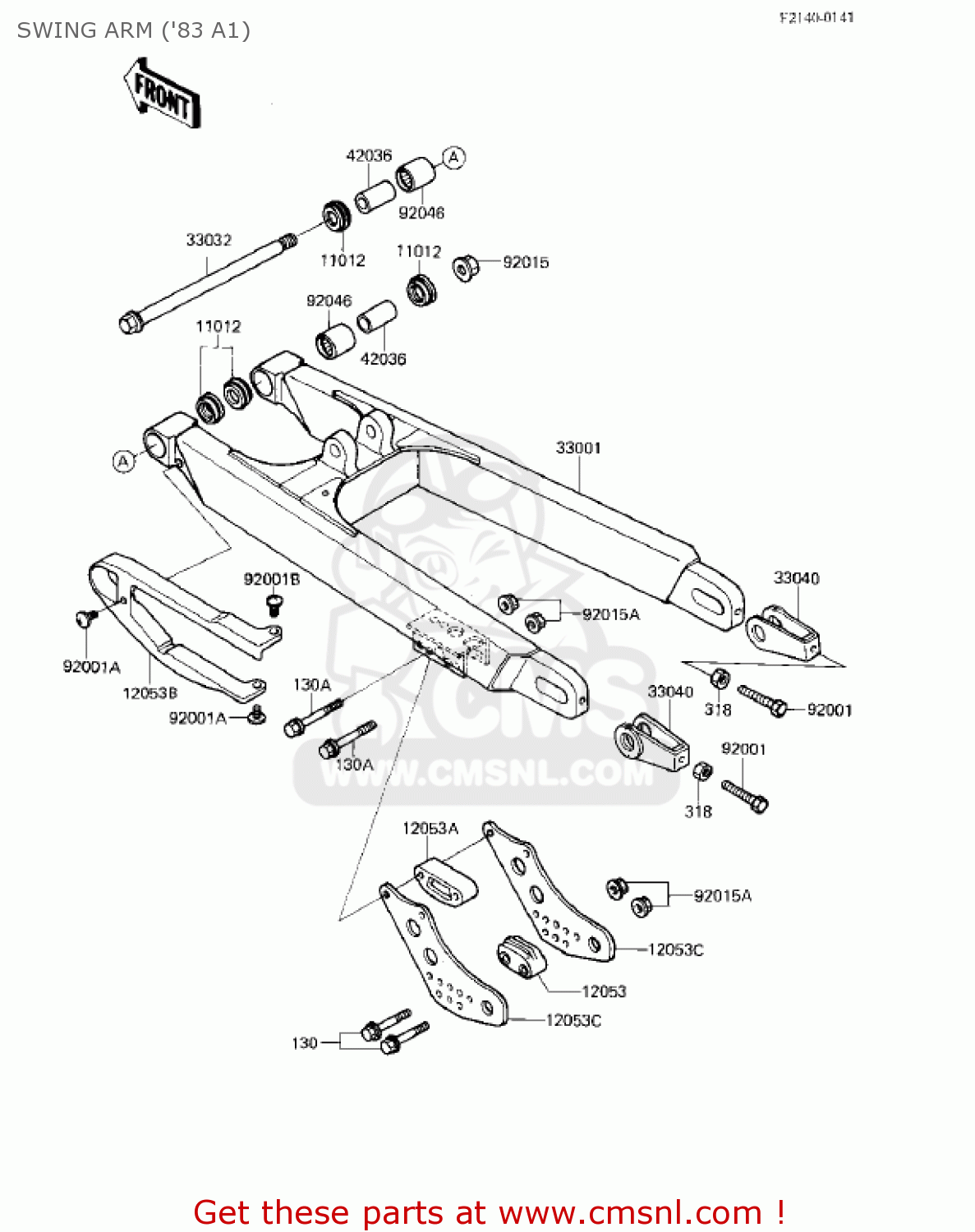

Swing arm ('83 a1) diagram KX500-A1 KX500 1983 USA CANADA
SWING ARM ('83 A1) KX500-A1 KX500 1983 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11012
110121259
ref: 11012
CAP,SWING ARM
€ 15.00
12053
120531011
ref: 12053
GUIDE-CHAIN,RR,LWR
€ 16.50
12053A
120531039
ref: 12053A
GUIDE-CHAIN,RR,UPP
€ 10.50
12053B
120531068
ref: 12053B
GUIDE-CHAIN,FR
€ 38.50
12053C
120531073
ref: 12053C
GUIDE-CHAIN,RR
€ 40.50
33001
330011174
ref: 33001
ARM-COMP-SWING
€ 442.00
33032
330321042
ref: 33032
SHAFT-SWING ARM
€ 49.00
33040
330401022
ref: 33040
ADJUSTER-CHAIN
€ 27.00
42036
420361064
ref: 42036
SLEEVE,SWING ARM
€ 14.50
92001
920011027
ref: 92001
BOLT,CHAIN ADJUSTER
€ 9.50
92001A
920091286
ref: 92001A
SCREW,6X10
€ 2.50
92001B
920091287
ref: 92001B
SCREW,6X14
€ 1.50
92015
920151407
ref: 92015
NUT,14MM
€ 6.50
92015A
920151078
ref: 92015A
NUT,6M/M
€ 1.50
92046
920461031
ref: 92046
BEARING-NEEDLE,HMK203
€ 20.50
130
130H0635
ref: 130
BOLT-FLANGED,6X35
€ 0.50
130A
130G0645
ref: 130A
BOLT,FLANGED,6X45
€ 0.50
318
318G0800
ref: 318
NUT-HEX-SMALL,8MM
€ 1.00
