GENERATOR ('83 A1)

KX500-A1 KX500 1983 USA CANADA

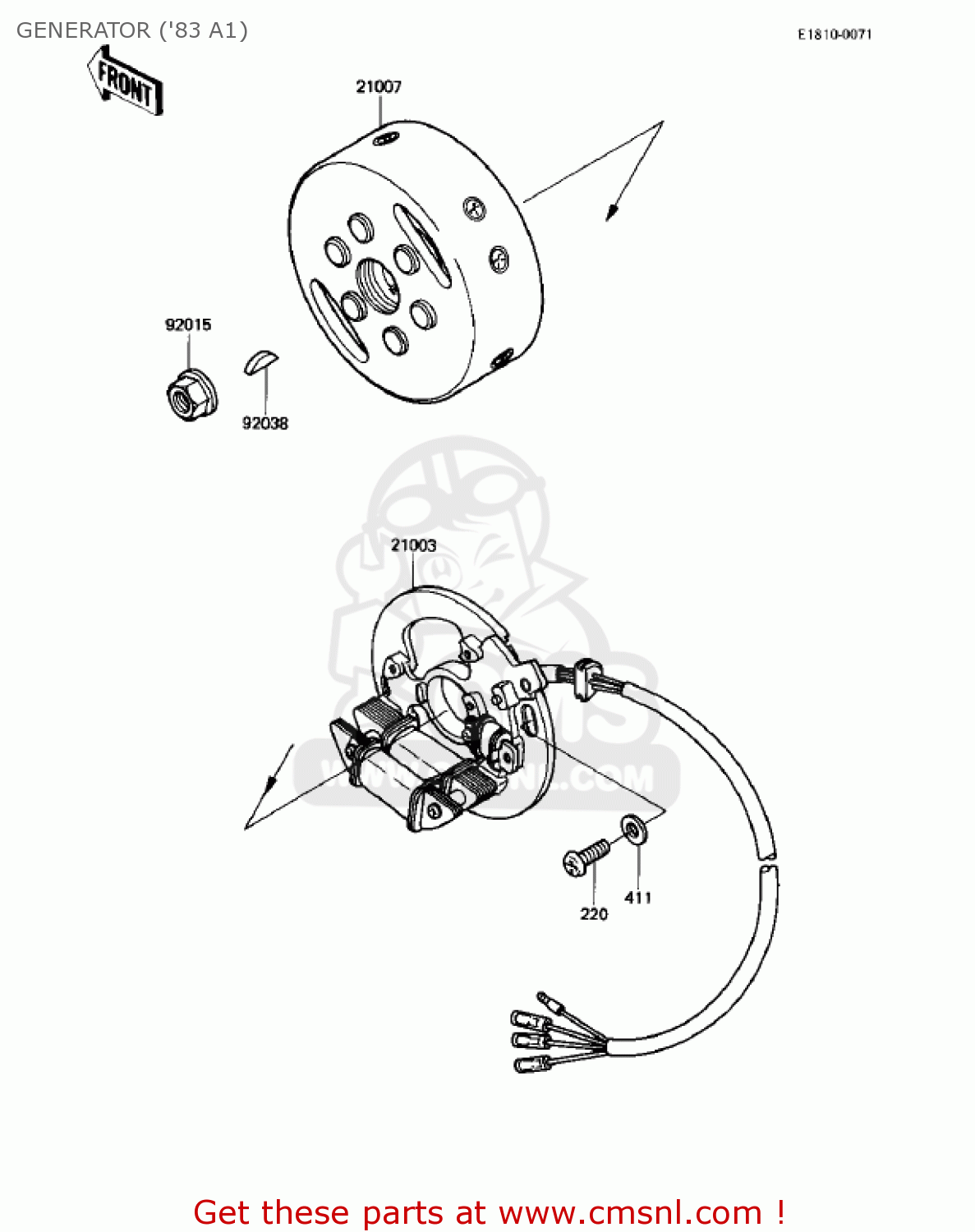

Generator ('83 a1) diagram KX500-A1 KX500 1983 USA CANADA

GENERATOR ('83 A1) KX500-A1 KX500 1983 USA CANADA
GENERATOR ('83 A1) KX500-A1 KX500 1983 USA CANADA
GENERATOR ('83 A1) KX500-A1 KX500 1983 USA CANADA
prices are in EUR
ref
part #
description
quantity
21003
210031086
ref: 21003
STATOR
€ 485.00
21007
210071052
ref: 21007
ROTOR
€ 338.00
92015
920151156
ref: 92015
NUT,12MM
920151156
€ 4.50
92038
92038001
ref: 92038
WOODRUFF KEY
92038001
€ 3.00
220
220B0616
ref: 220
SCREW-PAN HEAD,6X16
220B0616
€ 2.50
411
411B0600
ref: 411
WASHER-PLAIN,6MM
411B0600
€ 0.50
