CRANKSHAFT/PISTON ('83 A1)
KX500-A1 KX500 1983 USA CANADA

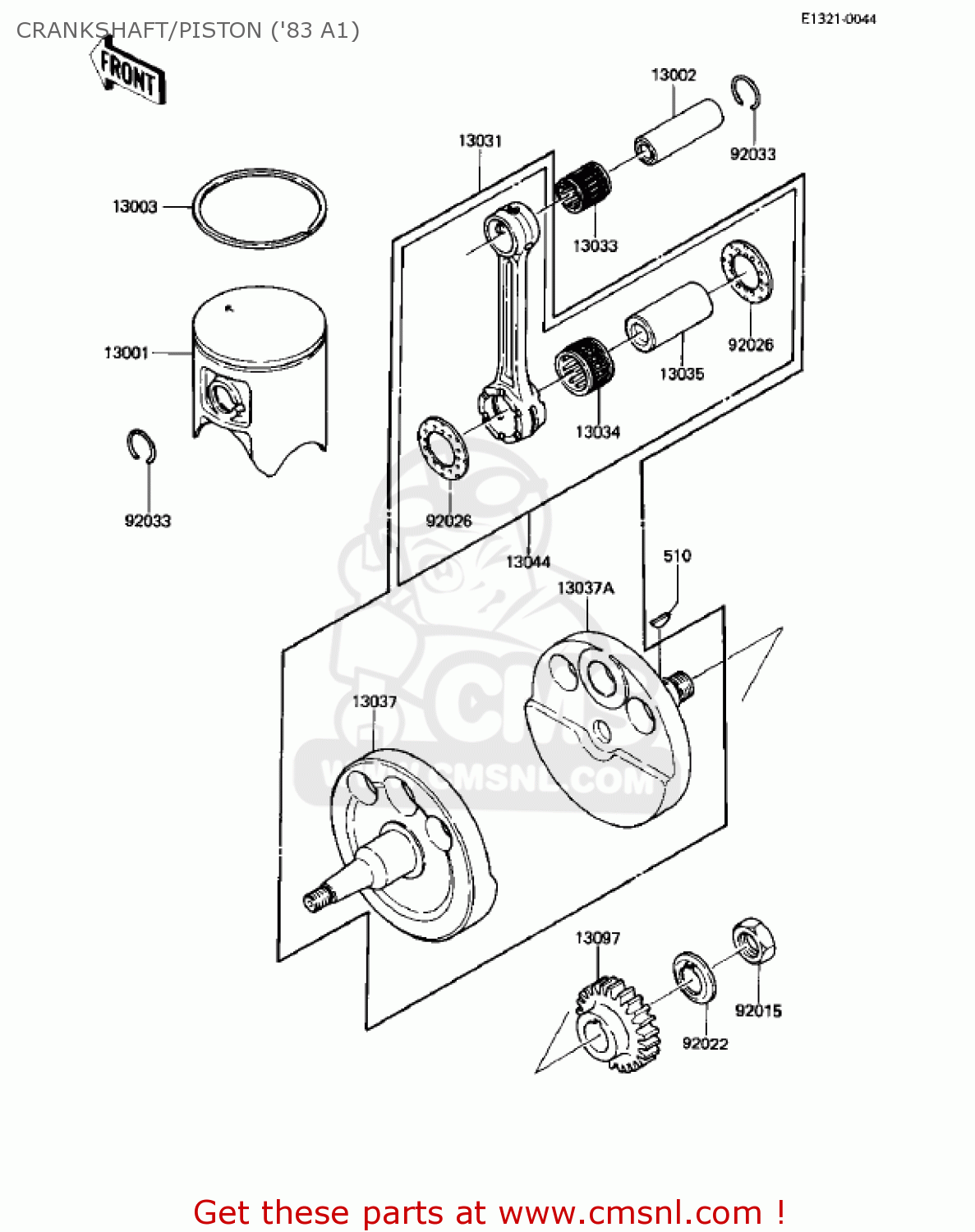

Crankshaft/piston ('83 a1) diagram KX500-A1 KX500 1983 USA CANADA
CRANKSHAFT/PISTON ('83 A1) KX500-A1 KX500 1983 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
13001
130011088
ref: 13001
PISTON-ENGINE
€ 96.00
13002
13002031
ref: 13002
PIN-PISTON
€ 17.50
13003
130031113
ref: 13003
RING-PISTON TOP
€ 37.50
13031
130311074
ref: 13031
CRANKSHAFT-COMP
€ 621.00
13033
130331055
ref: 13033
BEARING-SMALL END,KTV
€ 26.00
13034
130341012
ref: 13034
BEARING,N.KT263322EGS
€ 62.00
13035
130351008
ref: 13035
PIN-CRANK
€ 50.50
13037
130371143
ref: 13037
CRANKSHAFT,LH
€ 211.00
13037A
130371144
ref: 13037A
CRANKSHAFT,RH
€ 255.00
13044
130445025
ref: 13044
SET-CONNECTING ROD
€ 134.50
13097
130971060
ref: 13097
GEAR-PRIMARY SPUR,25T
€ 52.50
92015
92015019
ref: 92015
NUT,18MM
€ 4.00
92022
920221378
ref: 92022
WASHER,CLAW,18MM
€ 6.00
92026
92026093
ref: 92026
WASHER
€ 17.50
92033
92036008
ref: 92033
CIRCLIP-PISTON PIN
€ 0.50
510
510A5100
ref: 510
KEY-WOODRUFF
€ 1.50
