MUFFLER ('83 A1)
KX500-A1 KX500 1983 USA CANADA

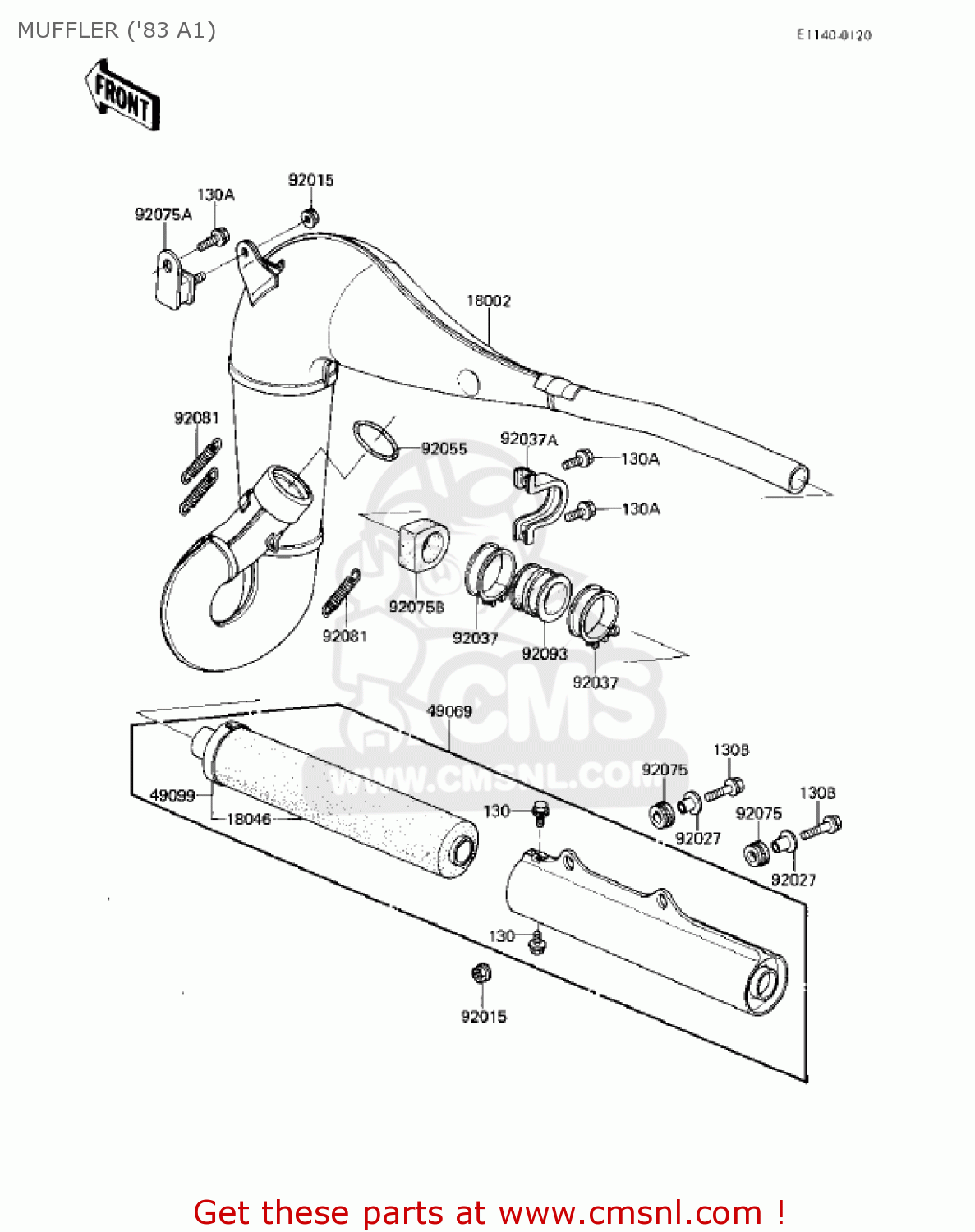

Muffler ('83 a1) diagram KX500-A1 KX500 1983 USA CANADA
MUFFLER ('83 A1) KX500-A1 KX500 1983 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
18002
180021281
ref: 18002
BODY-COMP-MUFFLER
€ 165.00
18046
180461017
ref: 18046
WOOL,MUFFLER BAFFLE P
€ 24.50
49069
490691010
ref: 49069
MUFFLER-ASSY
€ 102.50
49099
490991114
ref: 49099
BAFFLE-PIPE MUFFLER
€ 49.00
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92027
920271062
ref: 92027
COLLAR,SEAT
€ 4.50
92037
920371129
ref: 92037
CLAMP,40MM
€ 6.00
92037A
920371372
ref: 92037A
CLAMP,MUFFLER
€ 6.50
92055
920551057
ref: 92055
RING-O,55MM,MUFFLER
€ 9.50
92075
920751123
ref: 92075
DAMPER,RUBBER
€ 3.00
92075A
920751891
ref: 92075A
DAMPER,MUFFLER
€ 21.00
92075B
920751428
ref: 92075B
DAMPER,MUFFLER
€ 17.50
92081
18071003
ref: 92081
SPRING,MUFFLER CONNEC
€ 7.50
92093
920931085
ref: 92093
SEAL,MUFFLER
€ 23.50
130
130G0508
ref: 130
BOLT-FLANGED
€ 0.50
130A
130G0612
ref: 130A
BOLT,FLANGE,6X12
€ 0.50
130B
130G0625
ref: 130B
BOLT,FLANGED,6X25
€ 0.50
