TRANSMISSION ('80 D3)
KZ1000D1 Z1R 1978 CANADA

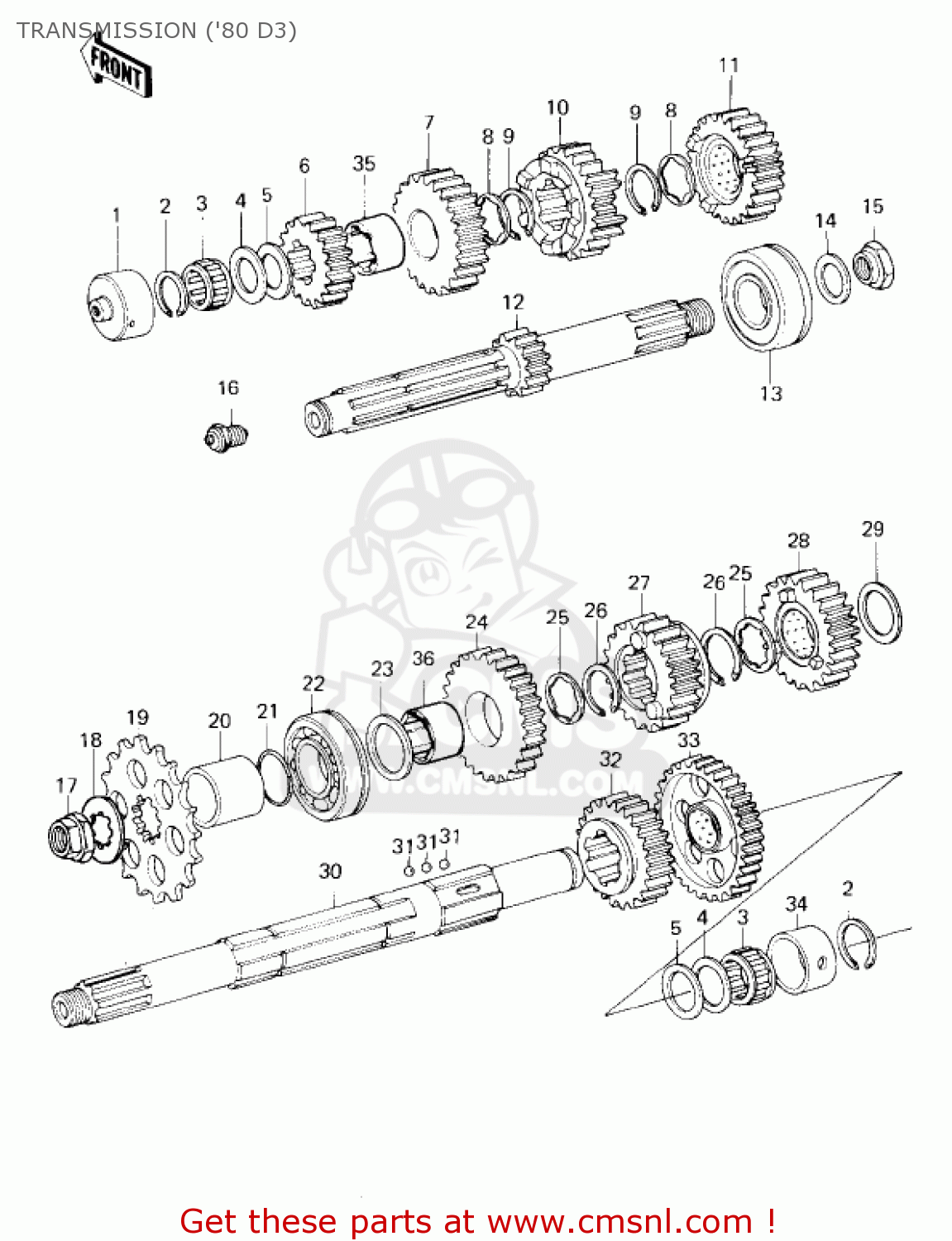

Transmission ('80 d3) diagram KZ1000D1 Z1R 1978 CANADA
TRANSMISSION ('80 D3) KZ1000D1 Z1R 1978 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
92028122
ref: 1
BUSHING,INPUT SHAFT
€ 54.50
2
92033025
ref: 2
CIRCLIP,25MM
€ 3.00
3
92046031
ref: 3
BEARING-NEEDLE,FWF-22
€ 19.50
4
92022212
ref: 4
1.6T
WASHER-PLAIN,22MM
€ 6.50
4
92022213
ref: 4
1.2T
WASHER,22.3X35X1.2
€ 7.00
5
920261020
ref: 5
1.0T
SPACER,22X35.5X1.0
€ 3.50
6
13130032
ref: 6
16T
2ND GEAR-DRIVE SHAFT
€ 114.50
7
13136042
ref: 7
23T
TOP GEAR-DRIVE SHAFT
€ 116.50
8
920221077
ref: 8
WASHER,LOCK (O.D=35O)
€ 7.50
9
480J2800
ref: 9
CIRCLIP-TYPE-C,28MM
€ 3.50
10
13132030
ref: 10
21T
3RD GEAR-DRIVE SHAFT
€ 158.50
11
13134016
ref: 11
21T
GEAR INPUT 4TH,21T
€ 156.00
12
13127042
ref: 12
12T
SHAFT,DRIVE 12T
€ 251.00
13
920451028
ref: 13
BEARING-BALL,5305NSH2
€ 135.00
14
92125002
ref: 14
WASHER,SPRING,20MM
€ 8.50
15
920151555
ref: 15
NUT,20MM
€ 9.00
16
131515003
ref: 16
SWITCH-COMP
€ 20.00
17
920151254
ref: 17
NUT,20MM
€ 10.50
18
922001065
ref: 18
WASHER
€ 4.50
19
131441001
ref: 19
SPROCKET-OUTPUT,15T
€ 33.00
20
92027288
ref: 20
COLLAR,25X32X23.5
€ 22.50
21
92055035
ref: 21
O RING
€ 3.00
22
92045021
ref: 22
BEARING-BALL,BL305NC3
€ 184.00
23
92022210
ref: 23
WASHER-PLAIN,25MM
€ 4.50
24
13131038
ref: 24
35T
GEAR,OUTPUT 2ND,35T
€ 146.50
25
920221078
ref: 25
WASHER,LOCK (O.D=40)
€ 3.00
26
480J3000
ref: 26
CIRCLIP-TYPE-C,30MM
€ 3.50
27
131291214
ref: 27
28T
GEAR,OUTPUT TOP,28T
€ 317.50
28
13133031
ref: 28
35T
GEAR,OUTPUT 3RD,35T
€ 169.50
29
92022209
ref: 29
WASHER-PLAIN,30MM
€ 6.50
30
131281013
ref: 30
SHAFT,OUTPUT
€ 307.00
31
600A0600
ref: 31
BALL-STEEL,3/16
€ 0.50
32
13135020
ref: 32
29T
4TH GEAR-OUTPUT SHAFT
€ 102.50
33
13129046
ref: 33
38T
LOW GEAR-OUTPUT SHAFT
€ 133.00
34
92028123
ref: 34
BUSHING,OUTPUT SHAFT
€ 36.50
35
920281124
ref: 35
BUSHING,TOP GEAR
€ 31.00
36
920281005
ref: 36
BUSHING, ZND GEAR
€ 22.50
