OIL PAN/OIL PUMP/OIL FILTER ('78
KZ1000D1 Z1R 1978 CANADA

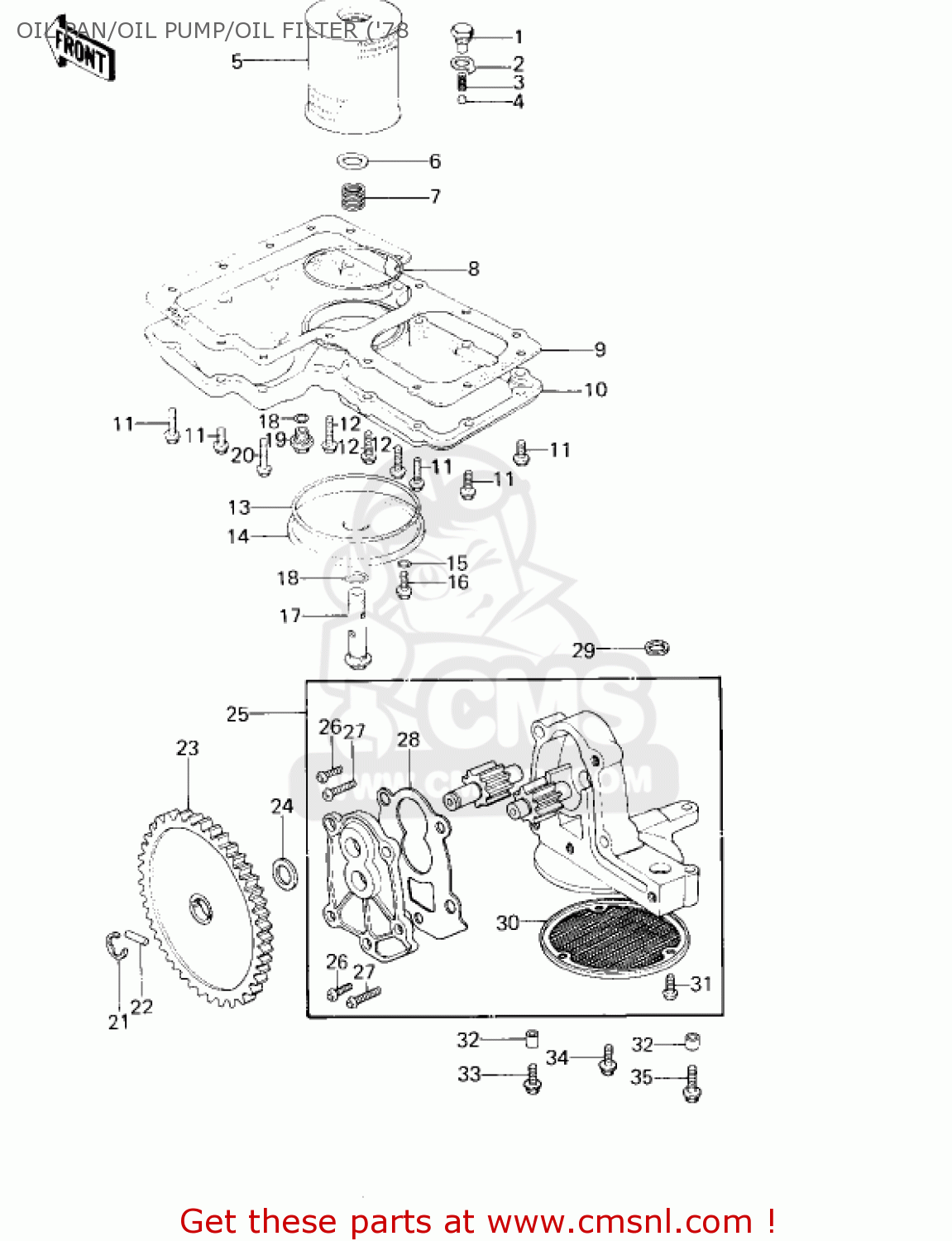

Oil pan/oil pump/oil filter ('78 diagram KZ1000D1 Z1R 1978 CANADA
OIL PAN/OIL PUMP/OIL FILTER ('78 KZ1000D1 Z1R 1978 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
92003095
ref: 1
BOLT
€ 10.50
2
92024048
ref: 2
WASHER,LOCK
€ 2.00
3
92081109
ref: 3
SPRING
€ 7.50
4
600A1200
ref: 4
BALL-STEEL,3/8
€ 0.50
5
16099002
ref: 5
ELEMENT-OIL FILTER
€ 13.00
6
920221012
ref: 6
WASHER,20.5X30X1
€ 3.00
7
920811018
ref: 7
SPRING,OIL FILTER
€ 3.00
8
92055052
ref: 8
RING-O,91.6X3.4
€ 6.00
9
110601074
ref: 9
GASKET,OIL PAN (NAS)
€ 37.00
10
490345020
ref: 10
PAN-OIL
€ 165.00
11
130G0625
ref: 11
BOLT,FLANGED,6X25
€ 0.50
12
92003159
ref: 12
BOLT,HEX HEAD,6X34
€ 2.50
13
671B25105
ref: 13
O-ring,105mm
€ 19.50
14
140251112
ref: 14
COVER,OIL FILTER
€ 19.50
15
670B1508
ref: 15
O RING,8MM
€ 1.00
16
92066024
ref: 16
PLUG,30X8
€ 8.00
17
920011074
ref: 17
BOLT,OIL FILTER
€ 43.00
18
670B2022
ref: 18
O RING,22MM
€ 3.00
19
920011183
ref: 19
BOLT,OIL DRAIN
€ 37.50
20
130G0650
ref: 20
BOLT-FLANGED,6X50
€ 1.00
21
482K7000
ref: 21
CIRCLIP-TYPE-E,7MM
€ 2.50
22
551A0314
ref: 22
PIN,DOWEL,3X14
€ 0.50
23
16085019
ref: 23
GEAR-OIL PUMP 49T
€ 70.00
24
92026080
ref: 24
WASHER-LOCK,16MM
€ 3.00
25
160825001
ref: 25
PUMP-ASSY-OIL
€ 585.00
26
220B0618
ref: 26
SCREW-PAN HEAD,6X18
€ 2.50
27
220B0628
ref: 27
SCREW-PAN HEAD,6X28
€ 2.50
28
110091029
ref: 28
GASKET,OIL PUMP (NAS)
€ 6.00
29
92055048
ref: 29
RING-O,OD=18
€ 3.00
30
16111004
ref: 30
FILTER,OIL PUMP
€ 23.50
31
220B0508
ref: 31
SCREW-PAN-CROS,5X8
€ 0.50
32
920431302
ref: 32
PIN,DOWEL,8X10
€ 1.00
33
92001164
ref: 33
BOLT,6X35
€ 3.50
34
920011352
ref: 34
BOLT,FLANGED,6X22
€ 2.50
35
92001165
ref: 35
BOLT,HEX HEAD,6X45
€ 3.00
