FENDERS ('80 D3)
KZ1000D1 Z1R 1978 CANADA

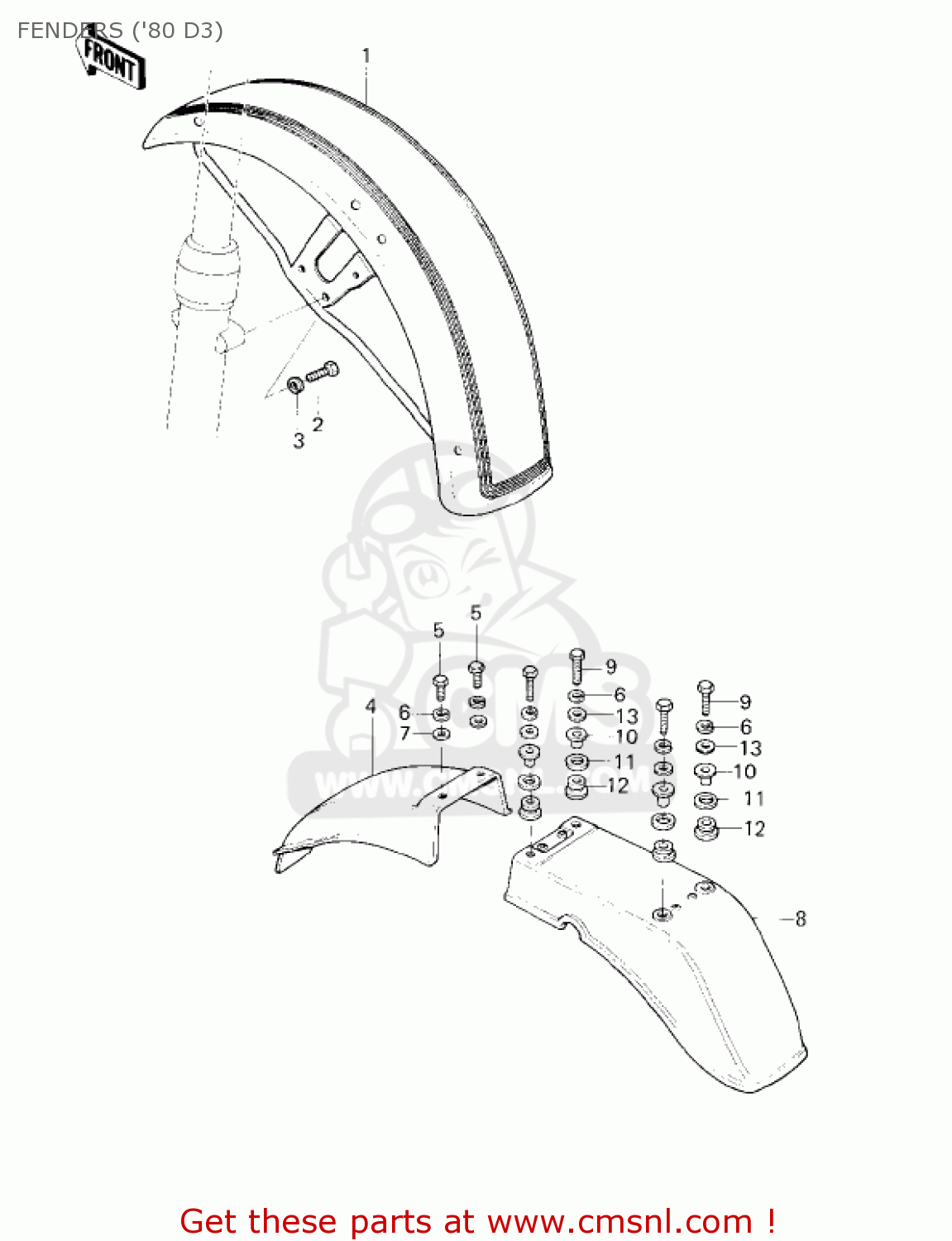

Fenders ('80 d3) diagram KZ1000D1 Z1R 1978 CANADA
FENDERS ('80 D3) KZ1000D1 Z1R 1978 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
3500110218G
ref: 1
FRONT FENDER,EBONY
€ 142.50
2
115G0816
ref: 2
BOLT-HEX,HEAD 8X16
€ 0.50
3
461F0800
ref: 3
WASHER-SPRING,8MM
€ 0.50
4
35022154
ref: 4
(FRONT)
FENDER, REAR
€ 28.50
5
112B0614
ref: 5
BOLT-UPSET 6X14
€ 2.50
6
461F0600
ref: 6
WASHER-SPRING,6MM
€ 0.50
7
92022024
ref: 7
WASHER,7X16X1.2
€ 2.50
8
350221040
ref: 8
(REAR)
FENDER-COMP-REAR
€ 100.00
9
112G0630
ref: 9
BOLT-UPSET
€ 1.00
10
92027251
ref: 10
COLLAR,L=13.1
€ 1.00
11
92075175
ref: 11
DAMPER,FEMALE
€ 2.50
12
92075174
ref: 12
DAMPER,MALE
€ 3.00
13
92022228
ref: 13
WASHER-PLAIN,7MM
€ 2.50
up
