CHASSIS ELECTRICAL EQUIPMENT ('8

KZ1000D1 Z1R 1978 CANADA

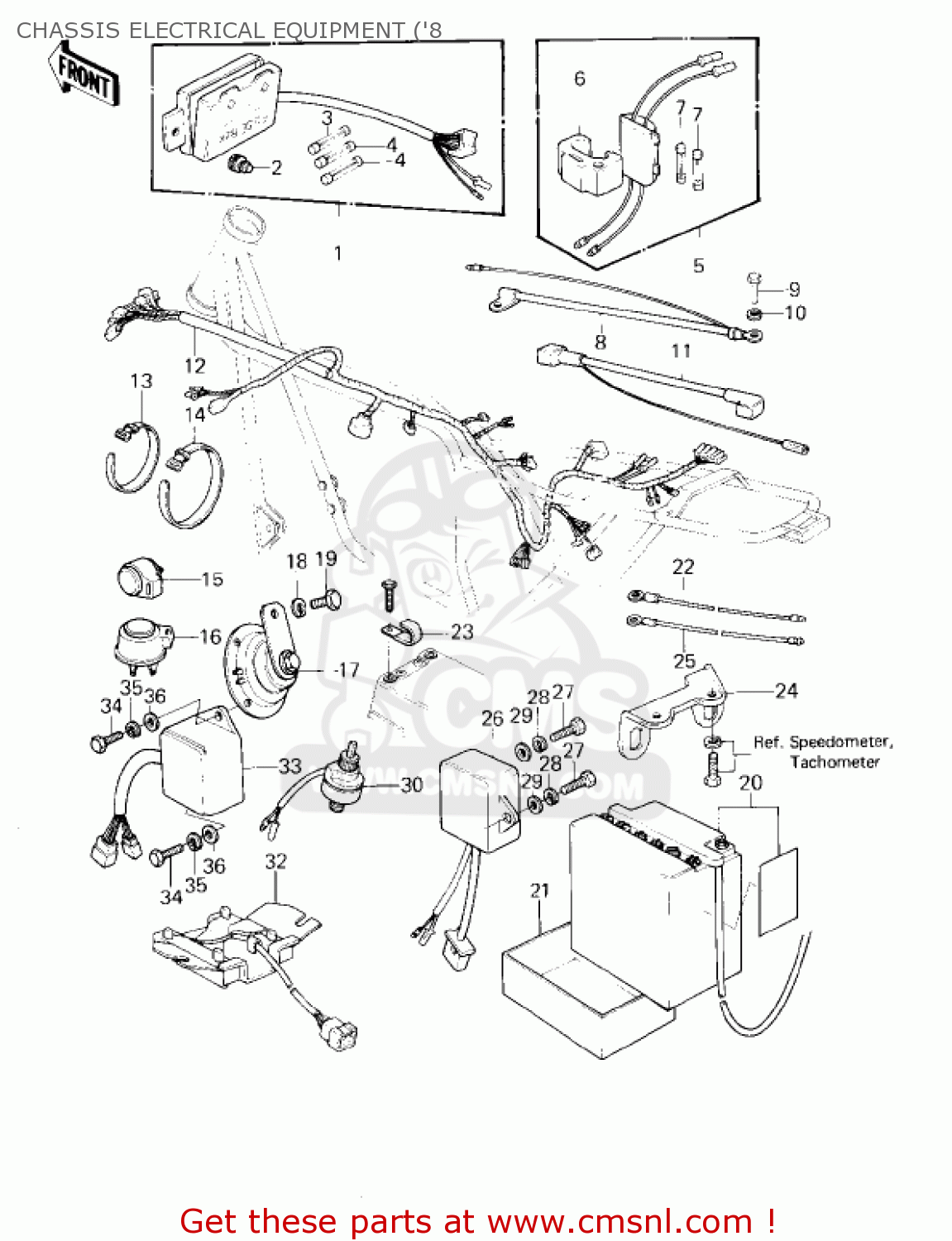

Chassis electrical equipment ('8 diagram KZ1000D1 Z1R 1978 CANADA

CHASSIS ELECTRICAL EQUIPMENT ('8 KZ1000D1 Z1R 1978 CANADA
CHASSIS ELECTRICAL EQUIPMENT ('8 KZ1000D1 Z1R 1978 CANADA
CHASSIS ELECTRICAL EQUIPMENT ('8 KZ1000D1 Z1R 1978 CANADA
prices are in EUR
ref
part #
description
quantity
1
260041006
ref: 1
FUSE-ASSY
260041006
€ 57.00
2
92075279
ref: 2
DAMPER,FUSE
92075279
€ 3.50
3
26006005
ref: 3
L = 25 M/M
FUSE 20A
26006005
€ 3.50
4
26006003
ref: 4
L = 25 M/M
FUSE 10A
26006003
€ 3.00
5
260041003
ref: 5
FUSE ASSY
€ 27.00
6
920751044
ref: 6
DAMPER,FUSE
€ 6.00
7
260061001
ref: 7
L = 30 M/M
FUSE,2A L=30M/M
260061001
€ 2.00
8
26010054
ref: 8
WIRE-LEAD,BATTERY GRO
€ 17.00
9
92001137
ref: 9
BOLT,HEX HEAD,6M/M
92001137
€ 4.00
10
461F0600
ref: 10
WASHER-SPRING,6MM
461F0600
€ 0.50
11
260111018
ref: 11
WIRE,STARTER LEAD
€ 19.50
12
260011056
ref: 12
WIRING HARNESS,MAIN
€ 115.00
13
92072030
ref: 13
L = 123 M/M
BAND,SHORT
92072030
€ 3.00
14
92072056
ref: 14
L = 186 M/M
BAND,RUBBER
92072056
€ 3.00
15
27002011
ref: 15
RELAY-ASSY,TURN SIGNA
27002011
€ 69.50
16
27002016
ref: 16
RELAY-ASSY,HAZARD
€ 26.50
17
270031006
ref: 17
HORN
270031006
€ 99.00
18
461F0800
ref: 18
WASHER-SPRING,8MM
461F0800
€ 0.50
19
115G0816
ref: 19
BOLT-HEX,HEAD 8X16
115G0816
€ 0.50
20
260121008
ref: 20
YB-14
BATTERY,12V13AH W/LAB
€ 101.50
21
32099015
ref: 21
CASE,BATTERY
€ 9.00
22
26011063
ref: 22
FRONT
WIRE-LEAD,L=185
26011063
€ 5.00
23
920371069
ref: 23
CLAMP,L=60
920371069
€ 1.50
24
110341149
ref: 24
BRACKET
€ 5.50
25
26011095
ref: 25
REAR
WIRE-LEAD,L=285
26011095
€ 8.00
26
270101016
ref: 26
SWITCH,TURN SIGNAL OP
€ 137.50
27
112G0620
ref: 27
BOLT 6X20
112G0620
€ 1.00
28
461F0600
ref: 28
WASHER-SPRING,6MM
461F0600
€ 0.50
29
411B0600
ref: 29
WASHER-PLAIN,6MM
411B0600
€ 0.50
30
270101017
ref: 30
SWITCH,COMBINATION
270101017
€ 76.00
31
560401036
ref: 31
WARNING, BATTERY
€ 2.00
32
280181012
ref: 32
RESISTOR
€ 31.50
33
270101007
ref: 33
RESERVE LAMP SWITCH
270101007
€ 119.00
34
112G0616
ref: 34
BOLT UPSET,6X16
112G0616
€ 1.00
35
461F0600
ref: 35
WASHER-SPRING,6MM
461F0600
€ 0.50
36
411B0600
ref: 36
WASHER-PLAIN,6MM
411B0600
€ 0.50
