FRONT FORK ('80 D3)
KZ1000D1 Z1R 1978 CANADA

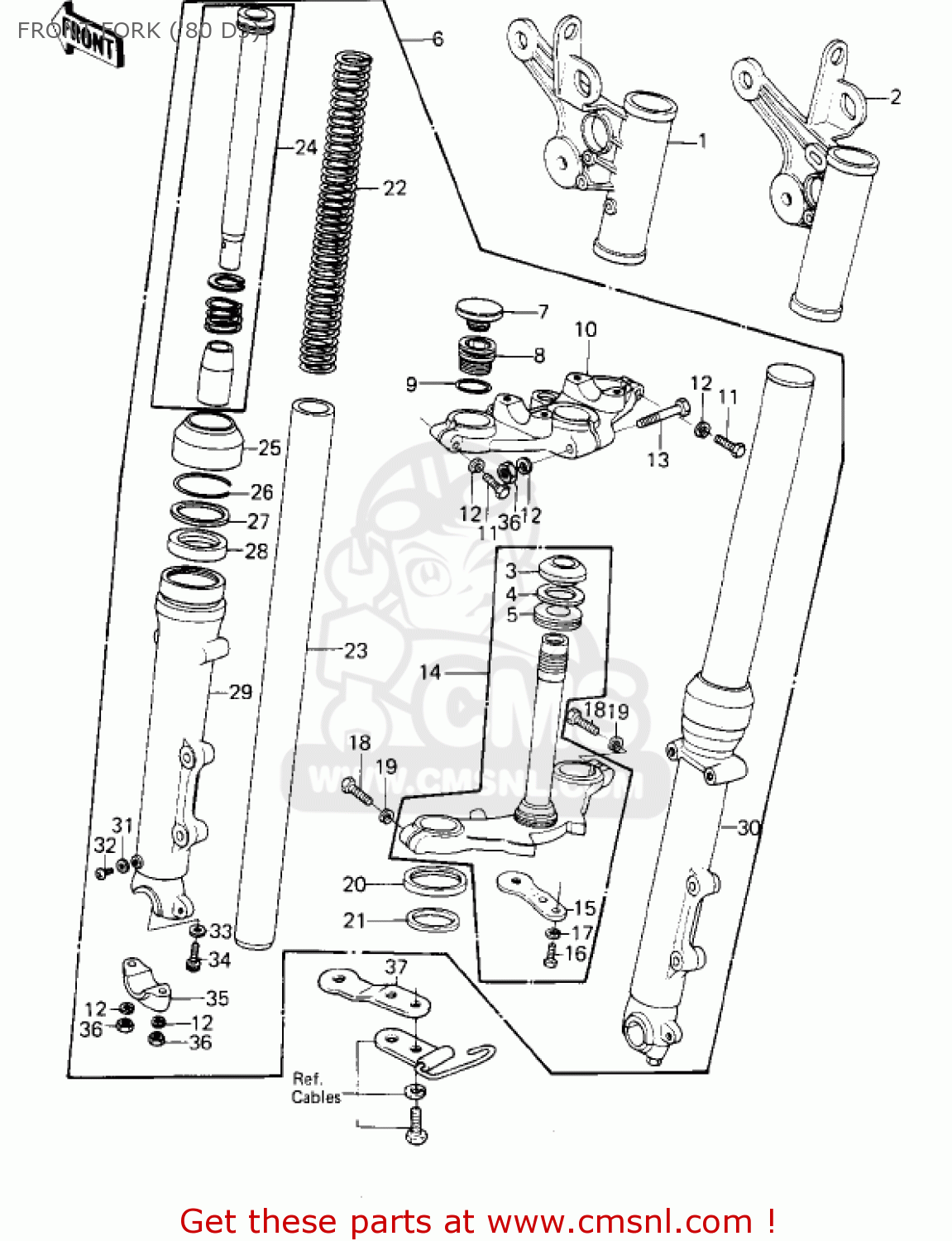

Front fork ('80 d3) diagram KZ1000D1 Z1R 1978 CANADA
FRONT FORK ('80 D3) KZ1000D1 Z1R 1978 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
440331011
ref: 1
F BLACK
COVER,L.H.FORK
€ 78.00
2
440331012
ref: 2
F BLACK
COVER-FORK,RH
€ 118.00
3
92047012
ref: 3
CONE-STRNG STM BRNG
€ 14.50
4
92022231
ref: 4
WASHER,PLAIN
€ 3.00
5
92056003
ref: 5
OIL SEAL,STEERING STM
€ 6.00
6
440011211
ref: 6
FRONT FORK
€ 953.00
7
110121017
ref: 7
CAP,RUBBER
€ 7.00
8
440291003
ref: 8
SEAT-FORK SPRING
€ 34.00
9
920551009
ref: 9
RING-O,FORK TOP
€ 3.00
10
440391024
ref: 10
STEERING STEM HEAD
€ 185.50
11
920011082
ref: 11
BOLT,8X40
€ 2.50
12
461F0800
ref: 12
WASHER-SPRING,8MM
€ 0.50
13
44041038
ref: 13
BOLT-HEX HEAD,8X55
€ 5.50
14
440371028
ref: 14
STEERING STEM
€ 289.50
15
110341126
ref: 15
BRACKET
€ 8.50
16
920011083
ref: 16
BOLT,6X14
€ 1.00
17
461F0600
ref: 17
WASHER-SPRING,6MM
€ 0.50
18
920011144
ref: 18
BOLT,HEX HEAD,12X40
€ 2.50
19
461F1200
ref: 19
WASHER-SPRING,12MM
€ 0.50
20
44043049
ref: 20
GUIDE,FORK COVER
€ 4.50
21
44045038
ref: 21
GASKET,FORK COVER (NAS)
€ 3.50
22
440261039
ref: 22
FORK SPRING
€ 33.50
23
440131003
ref: 23
PIPE-FORK INNER
€ 202.00
24
440221011
ref: 24
CYLINDER,FORK
€ 47.50
25
44010032
ref: 25
SEAL,FORK
€ 17.00
26
44044012
ref: 26
RING-SNAP
€ 17.50
27
44043044
ref: 27
WASHER,OIL SEAL FIT
€ 8.00
28
44009024
ref: 28
OIL SEAL
€ 16.00
29
440051032
ref: 29
TUBE,L.H FORK OUTER
€ 292.50
30
440061032
ref: 30
TUBE,R.H FORK OUTER
€ 289.00
31
44045002
ref: 31
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
32
220B0408
ref: 32
SCREW-PAN-CROS
€ 0.50
33
44045057
ref: 33
GASKET (NAS)
€ 3.00
34
44041040
ref: 34
BOLT-FORK CYLINDER
€ 4.50
35
44063014
ref: 35
HOLDER,FRONT AXLE
€ 23.50
36
920151124
ref: 36
NUT,LOCK,8MM
€ 3.50
37
110341126
ref: 37
BRACKET
€ 8.50
