CAM CHAIN/TENSIONER ('78 D1)
KZ1000D1 Z1R 1978 CANADA

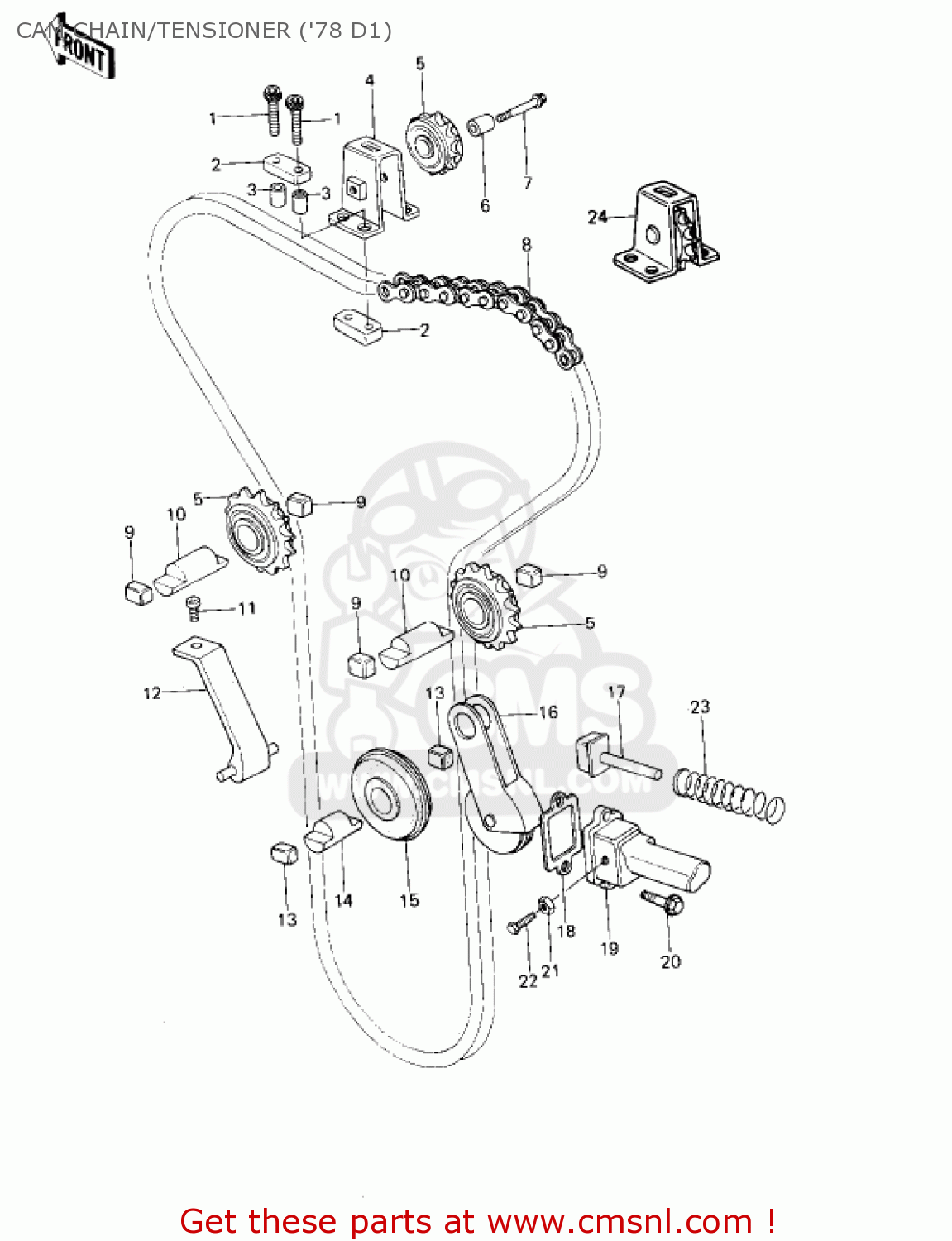

Cam chain/tensioner ('78 d1) diagram KZ1000D1 Z1R 1978 CANADA
CAM CHAIN/TENSIONER ('78 D1) KZ1000D1 Z1R 1978 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
120Q0632
ref: 1
BOLT,ALLEN,6X32
€ 3.00
2
92075289
ref: 2
DAMPER
€ 13.50
3
920271079
ref: 3
COLLAR,8X15
€ 2.50
4
120531016
ref: 4
E/NO. 1~001432
GUIDE-CHAIN,CAM
€ 239.00
5
12057002
ref: 5
E/NO. 1~001432
IDLER ASSY
€ 239.00
5
12057002
ref: 5
E/NO. 001433~
IDLER ASSY
€ 239.00
6
92027261
ref: 6
E/NO. 1~001432
COLLAR, IDLER
€ 4.00
7
130G0625
ref: 7
E/NO. 1~001432
BOLT,FLANGED,6X25
€ 0.50
8
21070003
ref: 8
CHAIN,CAMSHAFT,DID219
€ 56.50
9
92075232
ref: 9
DAMPER,IDLER SHAFT
€ 3.50
10
12052005
ref: 10
SHAFT-IDLER,GUIDE ROL
€ 18.50
11
220B0610
ref: 11
SCREW-PAN HEAD,6X10
€ 2.00
12
12053019
ref: 12
GUIDE-CHAIN,CAM
€ 27.50
13
92075123
ref: 13
DAMPER
€ 5.00
14
12052003
ref: 14
SHAFT-IDLER,CAM CHAIN
€ 9.50
15
12055002
ref: 15
ROLLER,CAM CHAIN GUID
€ 28.00
16
12048001
ref: 16
TENSIONER-ASSY,CAM CH
€ 177.50
17
12054001
ref: 17
ROD-PUSH,CAM CHAIN
€ 49.50
18
110091980
ref: 18
GASKET,TENSIONER (NAS)
€ 3.50
19
120491003
ref: 19
HOLDER,CHAN TENSIONER
€ 31.50
20
130G0630
ref: 20
BOLT, FLANGED, 6X30
€ 0.50
21
311B0600
ref: 21
NUT,6MM
€ 0.50
22
92003093
ref: 22
BOLT-TENSIONER ADJUST
€ 2.50
23
92081107
ref: 23
SPRING-TENSTIONER
€ 9.00
24
120531016
ref: 24
E/NO. 001433~
GUIDE-CHAIN,CAM
€ 239.00
