KICKSTARTER MECHANISM ('78 D1)
KZ1000D1 Z1R 1978 CANADA

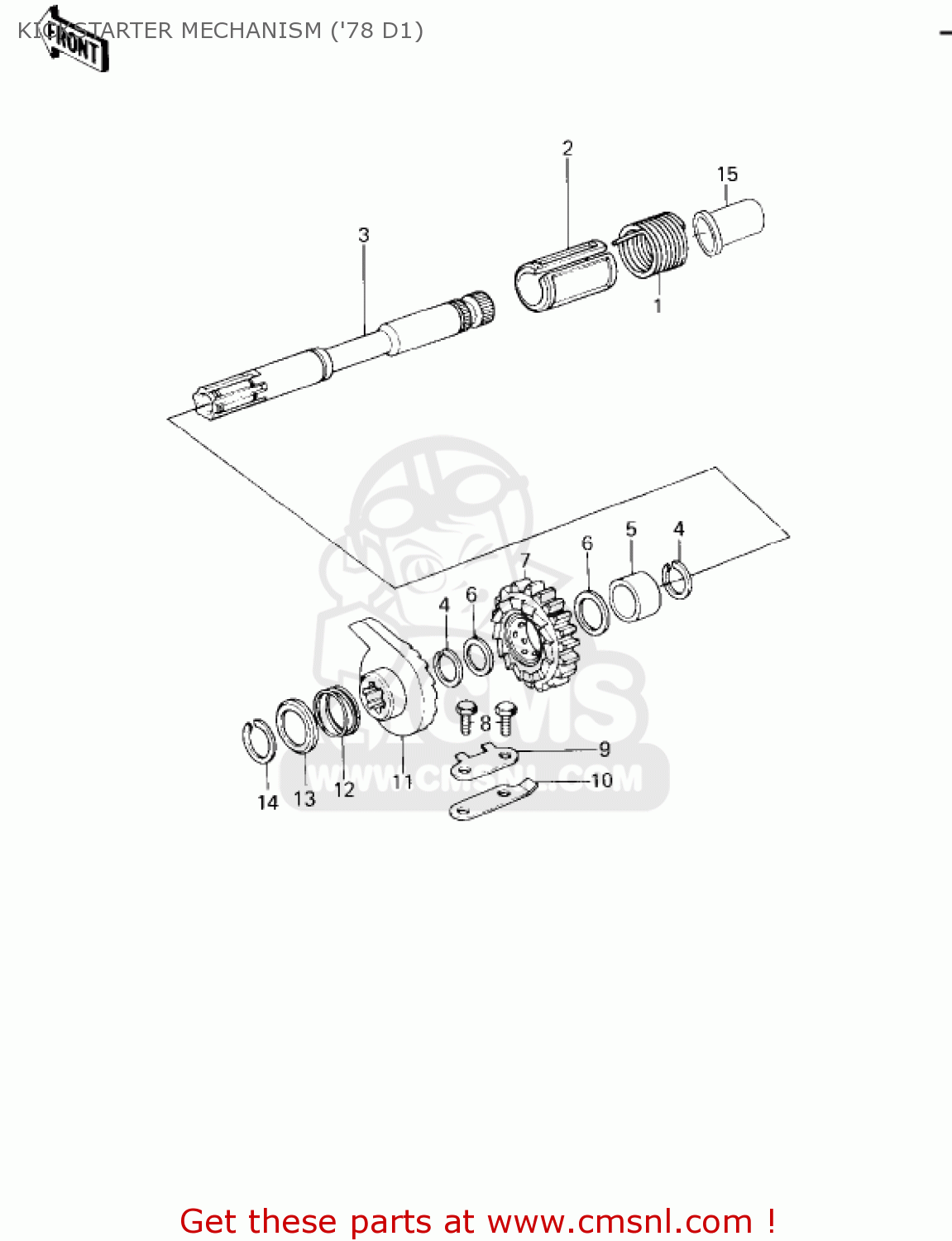

Kickstarter mechanism ('78 d1) diagram KZ1000D1 Z1R 1978 CANADA
KICKSTARTER MECHANISM ('78 D1) KZ1000D1 Z1R 1978 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
92082004
ref: 1
SPRING-KICKSTARTER
€ 12.50
2
13070005
ref: 2
GUIDE-KICK SHAFT
€ 6.00
3
130661004
ref: 3
SHAFT-KICK
€ 85.00
4
92033025
ref: 4
CIRCLIP,25MM
€ 3.00
5
92028126
ref: 5
COLLAR,KICKSHAFT
€ 20.00
6
92022207
ref: 6
WASHER-PLAIN,22MM
€ 2.50
7
590511006
ref: 7
GEAR,KICKSTARTER
€ 61.50
8
112G0614
ref: 8
BOLT-UPSET,6X14
€ 2.50
9
92024036
ref: 9
WASHER-LOCK
€ 1.00
10
13072012
ref: 10
STOPPER,KICKSTARTER
€ 7.00
11
13078011
ref: 11
RATCHET
€ 58.50
12
92081104
ref: 12
SPRING-RATCHET
€ 6.50
13
92102008
ref: 13
CAP-KICKSTARTER
€ 4.00
14
480J1900
ref: 14
CIRCLIP-TYPE-C,19MM
€ 1.00
15
92074037
ref: 15
PLUG
€ 2.50
