ENGINE COVERS ('78 D1)

KZ1000D1 Z1R 1978 CANADA

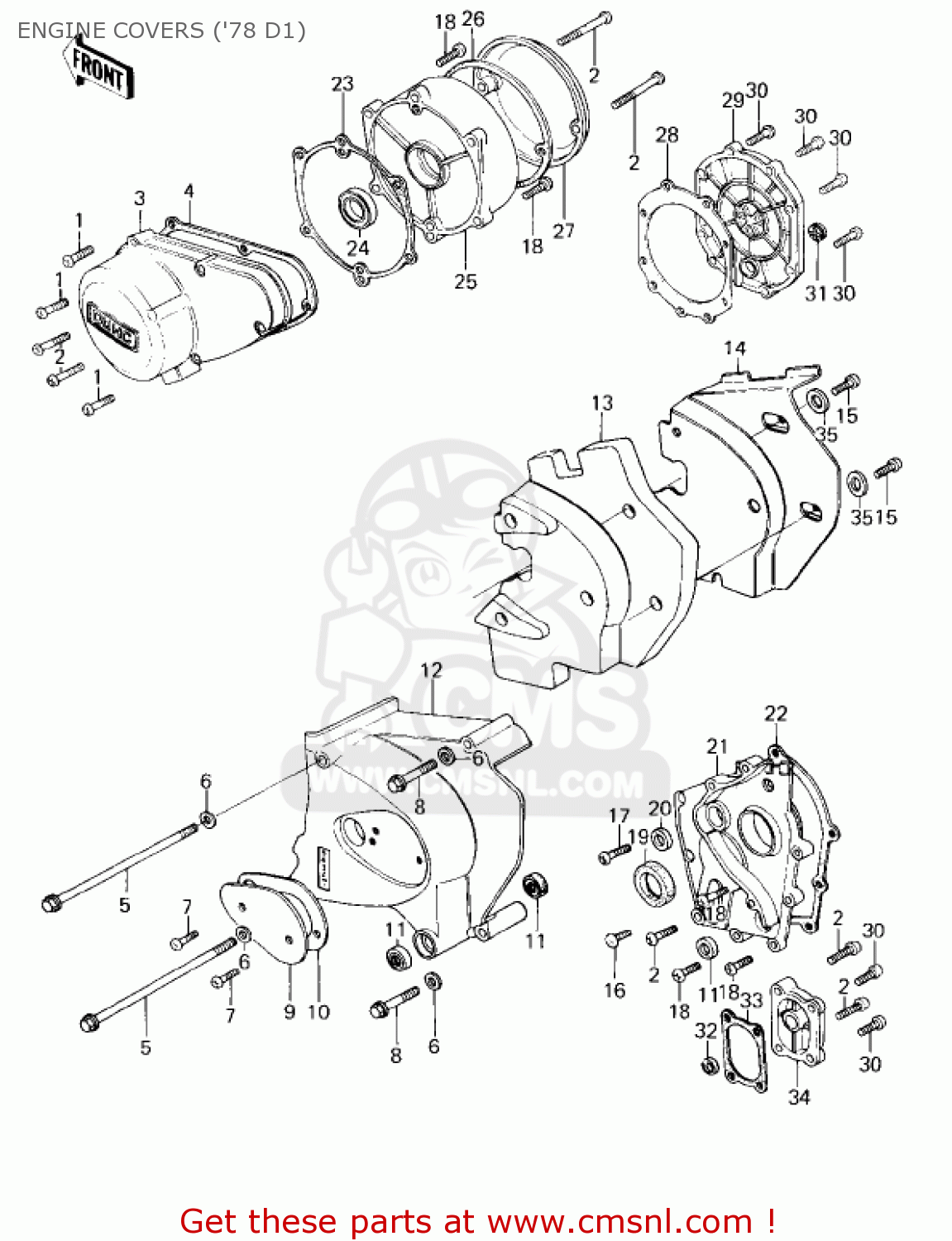

Engine covers ('78 d1) diagram KZ1000D1 Z1R 1978 CANADA

ENGINE COVERS ('78 D1) KZ1000D1 Z1R 1978 CANADA

ENGINE COVERS ('78 D1) KZ1000D1 Z1R 1978 CANADA

prices are in EUR

ref

part #

description

quantity

1

220B0630
ref: 1

SCREW-PAN HEAD,6X30

€ 2.50

2

220B0640
ref: 2

SCREW-PAN HEAD,6X40

€ 2.00

3

1403110080
ref: 3
BUFF FINISH

COVER,L.H ENGINE,BUFF

€ 226.00

4

110601075
ref: 4

GASKET,GENERATOR COVE (NAS)

€ 15.00

5

112G06125
ref: 5

BOLT-UPSET,6X125

€ 3.50

6

410B0600
ref: 6

WASHER-PLAIN-SMALL,6M

€ 0.50

7

220B0616
ref: 7

SCREW-PAN HEAD,6X16

€ 2.50

8

110G0670
ref: 8

BOLT,HEX HEAD,6X70

€ 3.00

9

14026012
ref: 9

COVER-OIL PUMP

€ 13.00

10

14045015
ref: 10

GASKET,CHAIN COVER (MCA)

€ 7.00

11

92049004
ref: 11

OIL SEAL SB12205

€ 6.00

12

1402603980
ref: 12
BUFF FINISH

COVER,FRONT CHAIN,BUF

€ 143.00

13

92075314
ref: 13

DAMPER,SOUND

€ 49.00

14

14024012
ref: 14

COVER, ARRESTER SOUND

€ 25.00

15

220B0610
ref: 15

SCREW-PAN HEAD,6X10

€ 2.00

16

220B0660
ref: 16

SCREW-PAN HEAD,6X60

€ 2.50

17

220B0628
ref: 17

SCREW-PAN HEAD,6X28

€ 2.50

18

220B0622
ref: 18

SCREW-PAN HEAD,6X22

€ 2.50

19

92050024
ref: 19

OIL SEAL SC325210

€ 5.00

20

92050048
ref: 20

OIL SEAL,TC7187

€ 15.00

21

140251106
ref: 21

COVER,TRANSMISSION

€ 118.00

22

14058004
ref: 22

GASKET-MISSION COVER (MCA)

€ 22.00

23

110601071
ref: 23

GASKET,RH ENGINE COVE (NAS)

€ 10.50

24

92050047
ref: 24

OIL SEAL,S25407R

€ 19.50

25

14032083
ref: 25

COVER-R.H ENGINE

€ 337.50

26

14050006
ref: 26

GASKET-POINT CAP (MCA)

€ 16.50

27

1402702380
ref: 27
BUFF FINISH

CAP,CONTACT BREAKER

€ 133.50

28

14046024
ref: 28

GASKET-CLUTCH COVER (MCA)

€ 30.50

29

14032121
ref: 29

COVER-CLUTCH

€ 133.50

30

220B0625
ref: 30

SCREW-PAN HEAD,6X25

€ 1.50

31

52015004
ref: 31

GAUGE,OIL LEVEL

€ 27.00

32

92049001
ref: 32

OIL SEAL SB22325.5

€ 6.00

33

14046025
ref: 33

CASKET-KICK COVER (MCA)

€ 6.00

34

1403207521
ref: 34
FLAT BLACK

COVER,KICKSTARTER,BLK

€ 71.00

35

411B0600
ref: 35

WASHER-PLAIN,6MM

€ 0.50
