GEAR CHANGE MECHANISM ('80 D3)
KZ1000D1 Z1R 1978 CANADA

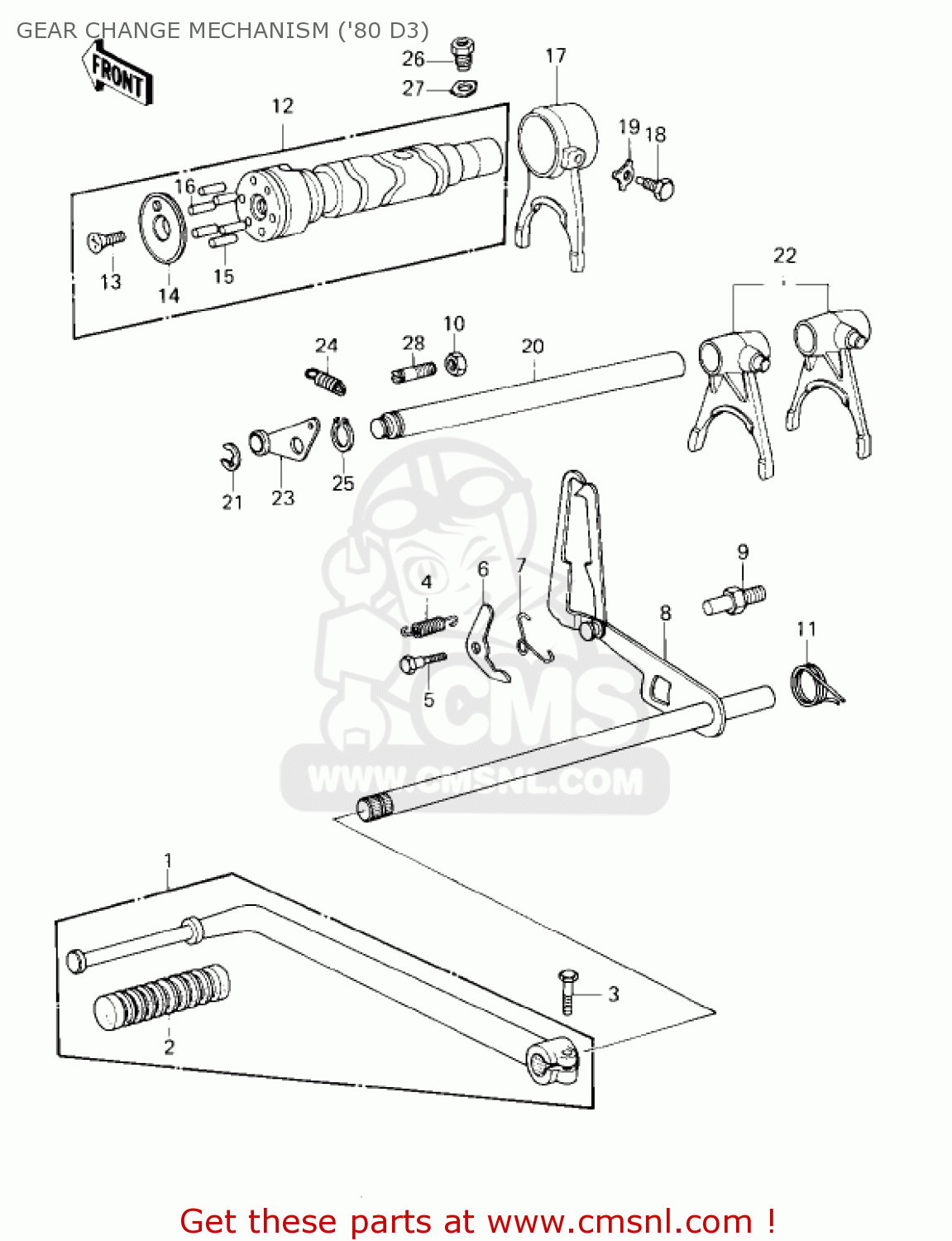

Gear change mechanism ('80 d3) diagram KZ1000D1 Z1R 1978 CANADA
GEAR CHANGE MECHANISM ('80 D3) KZ1000D1 Z1R 1978 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
13242006
ref: 1
LEVER-ASSY-CHANGE,PED
€ 28.50
2
13157004
ref: 2
RUBBER-CHANGE PEDAL
€ 4.00
3
112G0620
ref: 3
BOLT 6X20
€ 1.00
4
92081051
ref: 4
SPRING-CHNG DRUM LEV
€ 2.50
5
921501450
ref: 5
BOLT,CHANGE DRUM LEVE
€ 2.50
6
13168024
ref: 6
LEVER-GEAR CHNG DRUM
€ 5.50
7
92083018
ref: 7
SPRING-KICK PAWL
€ 6.00
8
13161029
ref: 8
LEVER-COMP-CHANGE SHA
€ 79.00
9
920011401
ref: 9
BOLT,RETURN SPRING
€ 3.00
10
312B0600
ref: 10
NUT,6MM
€ 0.50
11
92083028
ref: 11
SPRING,CHG PEDL RTRN
€ 9.50
12
132391015
ref: 12
DRUM ASSY,GEAR CHANGE
€ 388.50
13
221B0620
ref: 13
SCREW-CNTSNK HD,6X20
€ 0.50
14
130911088
ref: 14
HOLDER,CHANGE DRUM PI
€ 18.50
15
92042014
ref: 15
L=15.8M/M
PIN-GEAR CHANGE DRUM
€ 0.50
16
92042020
ref: 16
L=17.8M/M
PIN-GEAR CHANGE DRUM
€ 3.00
17
13140046
ref: 17
FORK-SHIFT,3RD
€ 124.50
18
92043016
ref: 18
PIN,SELECT FORK GUIDE
€ 12.50
19
92031001
ref: 19
WASHER,LOCK,10MM
€ 7.00
20
490471006
ref: 20
ROD,SHIFT
€ 20.00
21
480J1200
ref: 21
CIRCLIP-TYPE-C,12MM
€ 0.50
22
13140045
ref: 22
FORK-SHIFT,4TH&TOP
€ 190.00
23
132361020
ref: 23
LEVER,NEUTRAL POSITIO
€ 7.50
24
92081051
ref: 24
SPRING-CHNG DRUM LEV
€ 2.50
25
482J6000
ref: 25
CIRCLIP-TYPE-E,6MM
€ 0.50
26
920011052
ref: 26
BOLT, CHG DRUM POSITN
€ 12.50
27
92024047
ref: 27
WASHER-LOCK
€ 2.50
28
920011301
ref: 28
BOLT,NEUTRAL POSITION
€ 9.50
