FRONT BRAKE ('80 D3)
KZ1000D1 Z1R 1978 CANADA

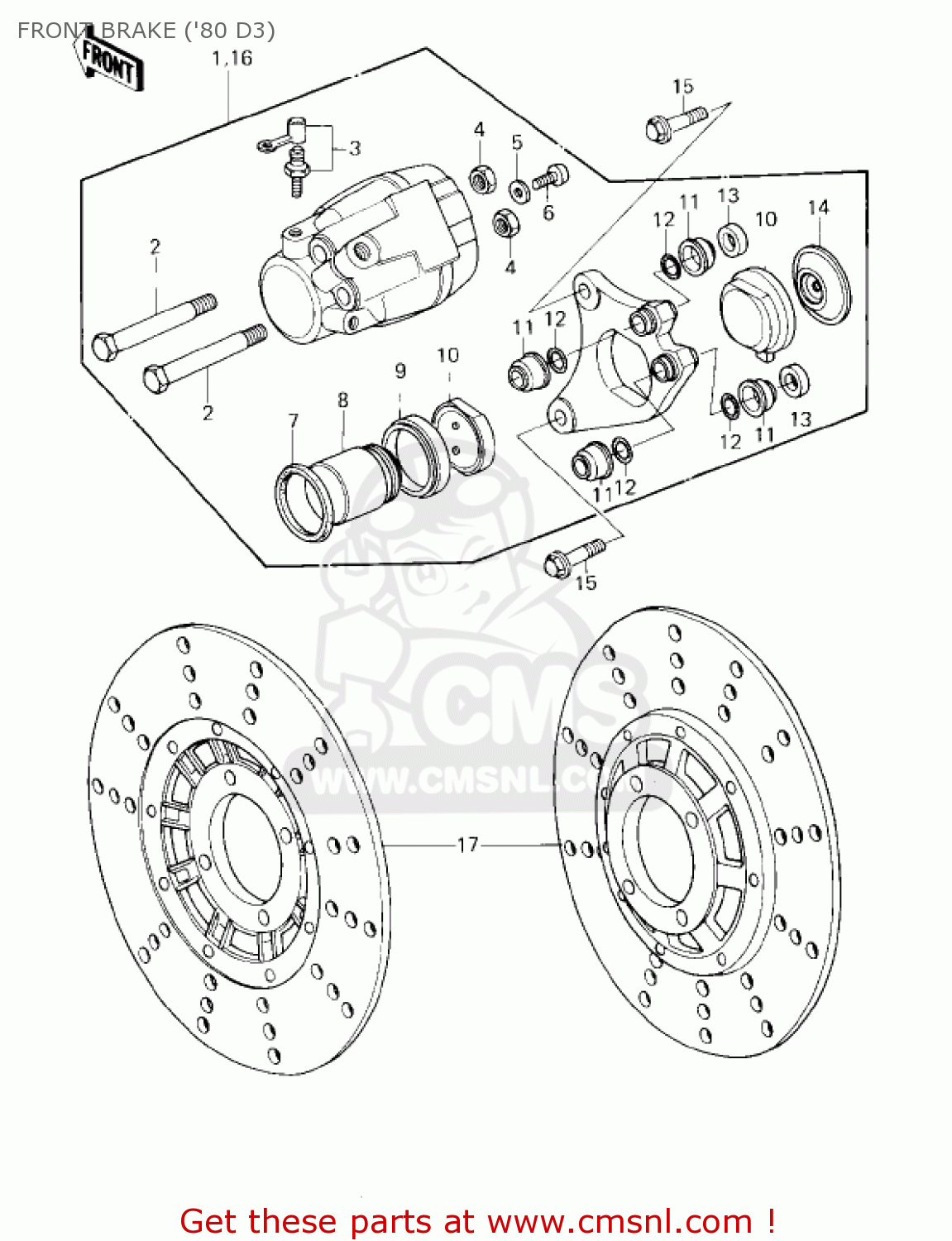

Front brake ('80 d3) diagram KZ1000D1 Z1R 1978 CANADA
FRONT BRAKE ('80 D3) KZ1000D1 Z1R 1978 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
430411024
ref: 1
CALIPER ASSY,L.H.
€ 429.50
2
43045006
ref: 2
BOLT
€ 18.00
3
43085001
ref: 3
BREEDER SET
€ 16.50
4
315B1000
ref: 4
NUT,10MM
€ 0.50
5
461F0600
ref: 5
WASHER-SPRING,6MM
€ 0.50
6
220B0612
ref: 6
SCREW-PAN HEAD,6X12
€ 1.00
7
43049002A
ref: 7
PISTON SEAL RING
€ 9.00
8
430201012
ref: 8
PISTON-COMP-BRAKE
€ 65.50
9
43054003
ref: 9
BOOT,PISTON
€ 10.00
10
430821001
ref: 10
PAD SET (MCA)
€ 34.00
11
43052005
ref: 11
BOOT,SHAFT
€ 7.50
12
43053006
ref: 12
RING-O
€ 7.00
13
43088002
ref: 13
PLUG
€ 6.50
14
43040004
ref: 14
SPACER
€ 8.00
15
920011293
ref: 15
BOLT,HEX HEAD,10X38
€ 6.50
16
430411025
ref: 16
CALIPER ASSY,R.H
€ 301.00
17
410801022
ref: 17
DISC PLATE,FRONT BRAK
€ 352.50
