HEADLIGHT ('80 D3)
KZ1000D1 Z1R 1978 CANADA

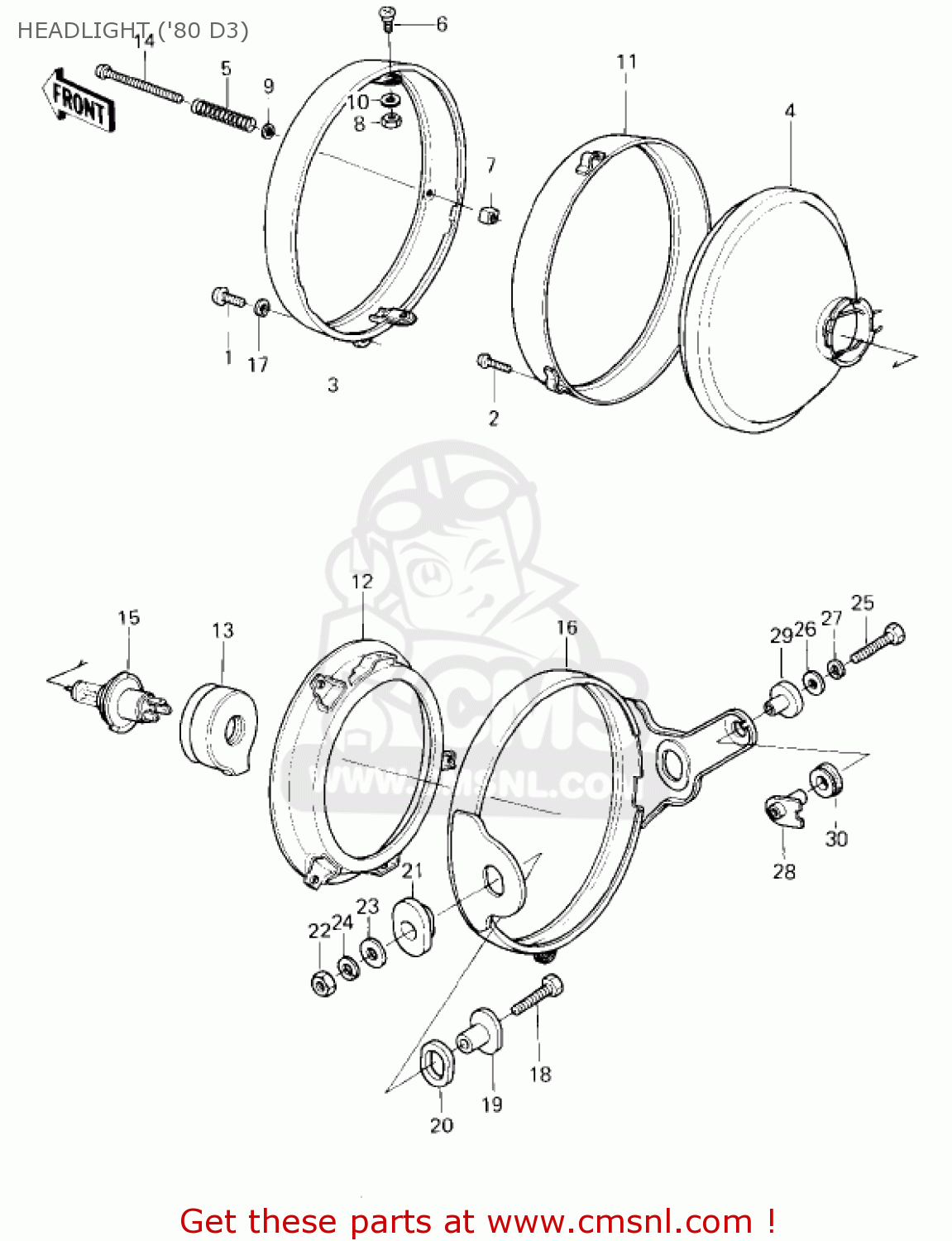

Headlight ('80 d3) diagram KZ1000D1 Z1R 1978 CANADA
HEADLIGHT ('80 D3) KZ1000D1 Z1R 1978 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
220B0612
ref: 1
SCREW-PAN HEAD,6X12
€ 1.00
2
220B0312
ref: 2
SCREW-PAN CROS,3X12
€ 2.00
3
230061006
ref: 3
HEADLAMP RIM
€ 56.00
4
230071009
ref: 4
LENS UNIT, HEAD LAMP
€ 127.00
5
23014005
ref: 5
SPRING-FOCUS ADJUST
€ 2.50
6
23019023
ref: 6
SCREW-PAN HEAD,5X12
€ 3.50
7
23020018
ref: 7
NUT,4MM,FOCUS ADJUST
€ 3.00
8
23020023
ref: 8
NUT,5MM
€ 3.00
9
23021004
ref: 9
WASHER,4.1X8X0.8
€ 2.00
10
23021012
ref: 10
WASHER
€ 3.00
11
23072001
ref: 11
RETAINER,HEAD LAMP
€ 26.00
12
23074001
ref: 12
HOLDER,HEAD LAMP
€ 28.00
13
490161016
ref: 13
COVER-SEAL
€ 16.00
14
920091033
ref: 14
SCREW,FOCUS ADJUSTING
€ 3.50
15
920691002
ref: 15
BULB,12V-60155W
€ 15.00
16
230051009
ref: 16
HEADLAMP BODY
€ 58.50
17
461F0600
ref: 17
WASHER-SPRING,6MM
€ 0.50
18
113G1045
ref: 18
BOLT-SMALL-FINE,10X45
€ 2.50
19
23052011
ref: 19
COLLAR,HEAD LAMP
€ 8.50
20
23066021
ref: 20
DAMPER
€ 6.00
21
23066022
ref: 21
DAMPER
€ 6.00
22
315B1000
ref: 22
NUT,10MM
€ 0.50
23
411B1000
ref: 23
WASHER-PLAIN,10MM
€ 0.50
24
461F1000
ref: 24
WASHER-SPRING,10MM
€ 0.50
25
110R0635
ref: 25
BOLT 6X35
€ 3.50
26
411B0600
ref: 26
WASHER-PLAIN,6MM
€ 0.50
27
461F0600
ref: 27
WASHER-SPRING,6MM
€ 0.50
28
920151061
ref: 28
HEADLAMP FITTING NUT
€ 1.50
29
920271045
ref: 29
COLLAR
€ 3.50
30
920751123
ref: 30
DAMPER,RUBBER
€ 3.00
