SWING ARM/SHOCK ABSORBERS ('80 D
KZ1000D1 Z1R 1978 CANADA

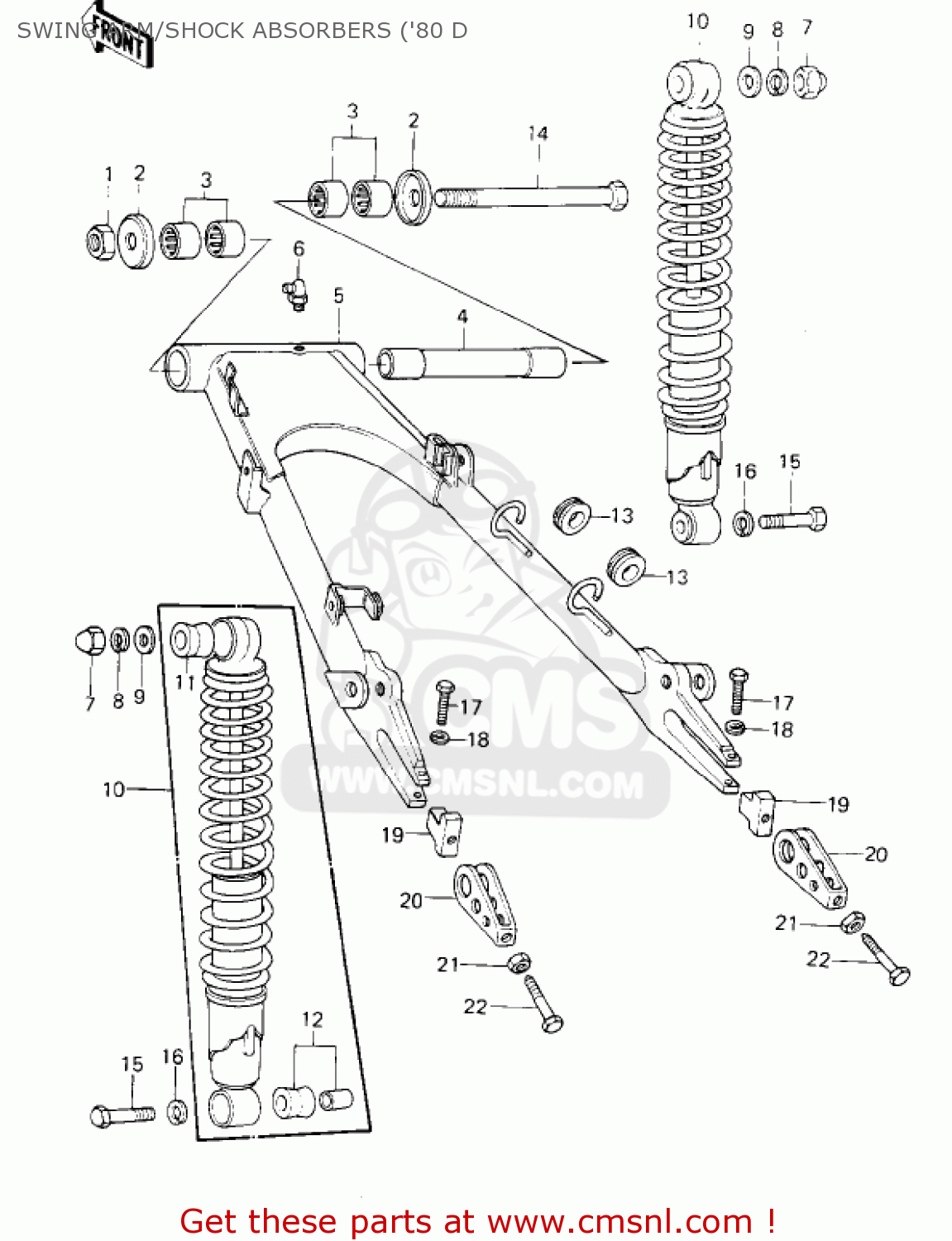

Swing arm/shock absorbers ('80 d diagram KZ1000D1 Z1R 1978 CANADA
SWING ARM/SHOCK ABSORBERS ('80 D KZ1000D1 Z1R 1978 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
92019012
ref: 1
NUT,LOCK,16MM
€ 11.00
2
33035009
ref: 2
CAP,SWING ARM
€ 10.50
3
920461115
ref: 3
BEARING-NEEDLE,HK2216
€ 24.00
4
420361011
ref: 4
SLEEVE,SWING ARM
€ 130.00
5
330011079
ref: 5
INCLUDES REF NO'S MA
ARM-COMP-SWING
€ 178.50
6
92005002
ref: 6
GREASE NIPPLE
€ 4.00
7
92020014
ref: 7
NUT,CAP,12MM
€ 6.50
8
461F1200
ref: 8
WASHER-SPRING,12MM
€ 0.50
9
410B1200
ref: 9
WASHER-PLAIN-SMALL,12
€ 0.50
10
450141043
ref: 10
SHOCK ABSORBER,REAR
€ 348.50
11
45017020
ref: 11
BUSHING,SHOCK ABSORB
€ 3.00
12
45017019
ref: 12
DAMPER,SHOCKABSORBER,
€ 13.00
13
43064007
ref: 13
43064007
14
33032036
ref: 14
SHAFT-SWING ARM
€ 41.00
15
113N1035
ref: 15
BOLT-HEX HEAD,10X35
€ 6.00
16
461F1000
ref: 16
WASHER-SPRING,10MM
€ 0.50
17
110G0840
ref: 17
*
BOLT-HEX HEAD,8X40
€ 4.00
18
461F0800
ref: 18
*
WASHER-SPRING,8MM
€ 0.50
19
33044001
ref: 19
*
STOPPER,CHAIN ADJUSTE
€ 23.50
20
33040066
ref: 20
ADJUSTER-CHAIN
€ 20.50
21
315B1000
ref: 21
NUT,10MM
€ 0.50
22
92001143
ref: 22
BOLT,CHAIN ADJUSTER
€ 13.50
