FUEL TANK ('78 D1)
KZ1000D1 Z1R 1978 CANADA

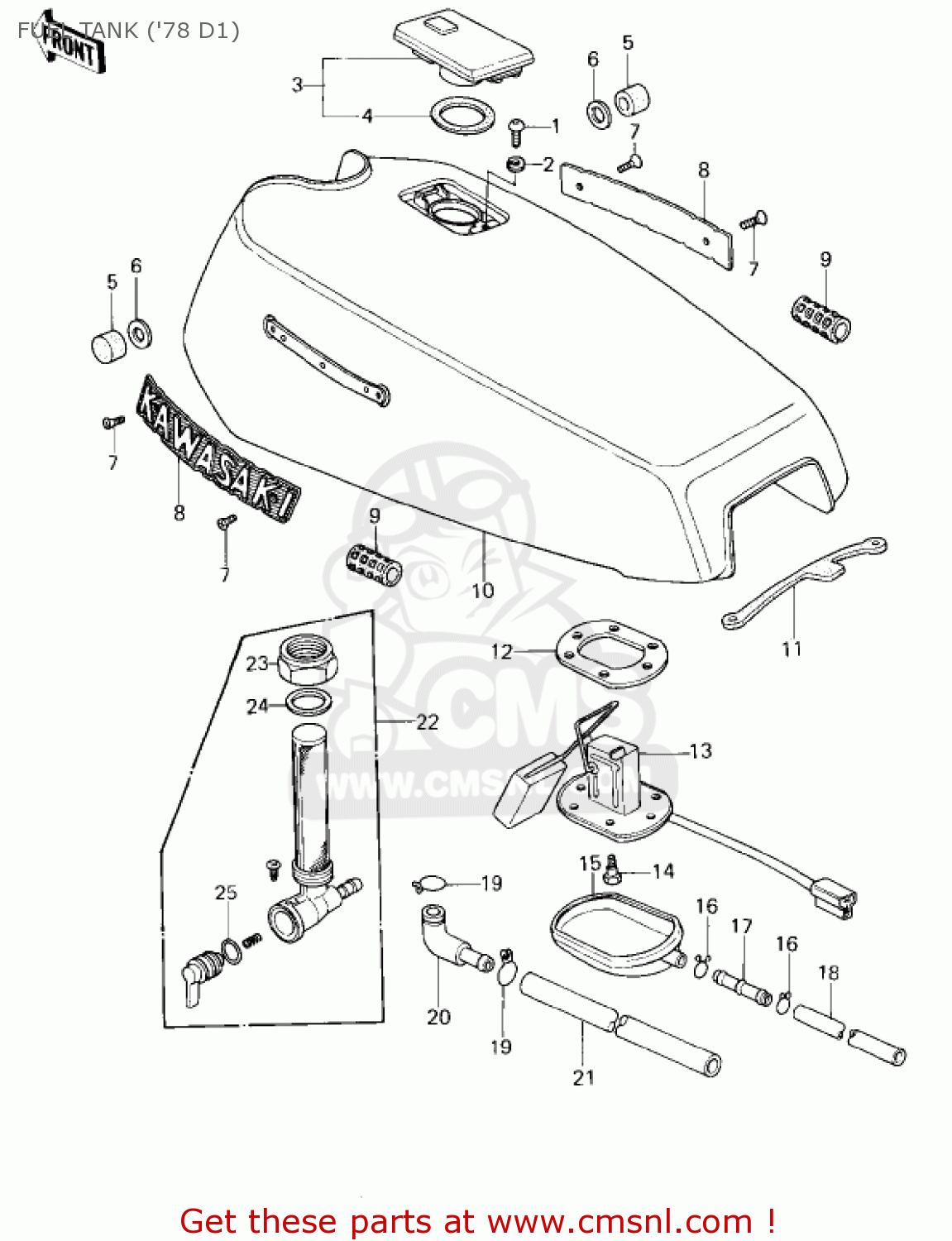

Fuel tank ('78 d1) diagram KZ1000D1 Z1R 1978 CANADA
FUEL TANK ('78 D1) KZ1000D1 Z1R 1978 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
220B0510
ref: 1
SCREW-PAN-CROS,5X10
€ 0.50
2
461F0500
ref: 2
WASHER-SPRING,5MM
€ 0.50
3
510481002
ref: 3
CAP ASSY,FUEL TANK
€ 91.00
4
110091036
ref: 4
GASKET,FUEL TANK CAP (NAS)
€ 6.00
5
92075125
ref: 5
FRONT
DAMPER RUBBER-FL TANK
€ 4.00
6
92022044
ref: 6
WASHER,10.5X26X2.3
€ 2.50
7
221C0306
ref: 7
SCREW-CSR-CROS
€ 0.50
8
560141006
ref: 8
EMBLEM,FUEL TANK
€ 88.00
9
92075084
ref: 9
REAR
DAMPER,FUEL TANK
€ 6.50
10
5100110097W
ref: 10
TANK,FUEL M.S.SILVER
€ 465.50
11
92072042
ref: 11
BAND,FUEL TANK
€ 9.00
12
110091037
ref: 12
GASKET (NAS)
€ 14.00
13
520051002
ref: 13
GAUGE,FUEL
€ 74.50
14
920011069
ref: 14
5 X 7 5
BOLT,FUEL GAUGE FIT
€ 4.50
15
140251019
ref: 15
COVER
€ 11.50
16
92037147
ref: 16
CLAMP,CHAIN OILER
€ 4.50
17
320321071
ref: 17
PIPE
€ 3.50
18
702A07800
ref: 18
TUBE,RUBBER
€ 9.50
19
920371058
ref: 19
CLAMP,RUBBER TUBE FIT
€ 2.50
20
520141001
ref: 20
ELBOW
€ 6.00
21
703A09900
ref: 21
TUBE,RUBBER
€ 12.50
22
510231007
ref: 22
TAP-ASSY,FUEL
€ 87.50
23
51035009
ref: 23
NUT,FUEL COCK JOINT
€ 6.00
24
92065081
ref: 24
GASKET-FUEL COCK JONT (NAS)
€ 3.50
25
670B2010
ref: 25
O RING,10MM
€ 1.00
