FOOTRESTS/STANDS ('78 D1)
KZ1000D1 Z1R 1978 CANADA

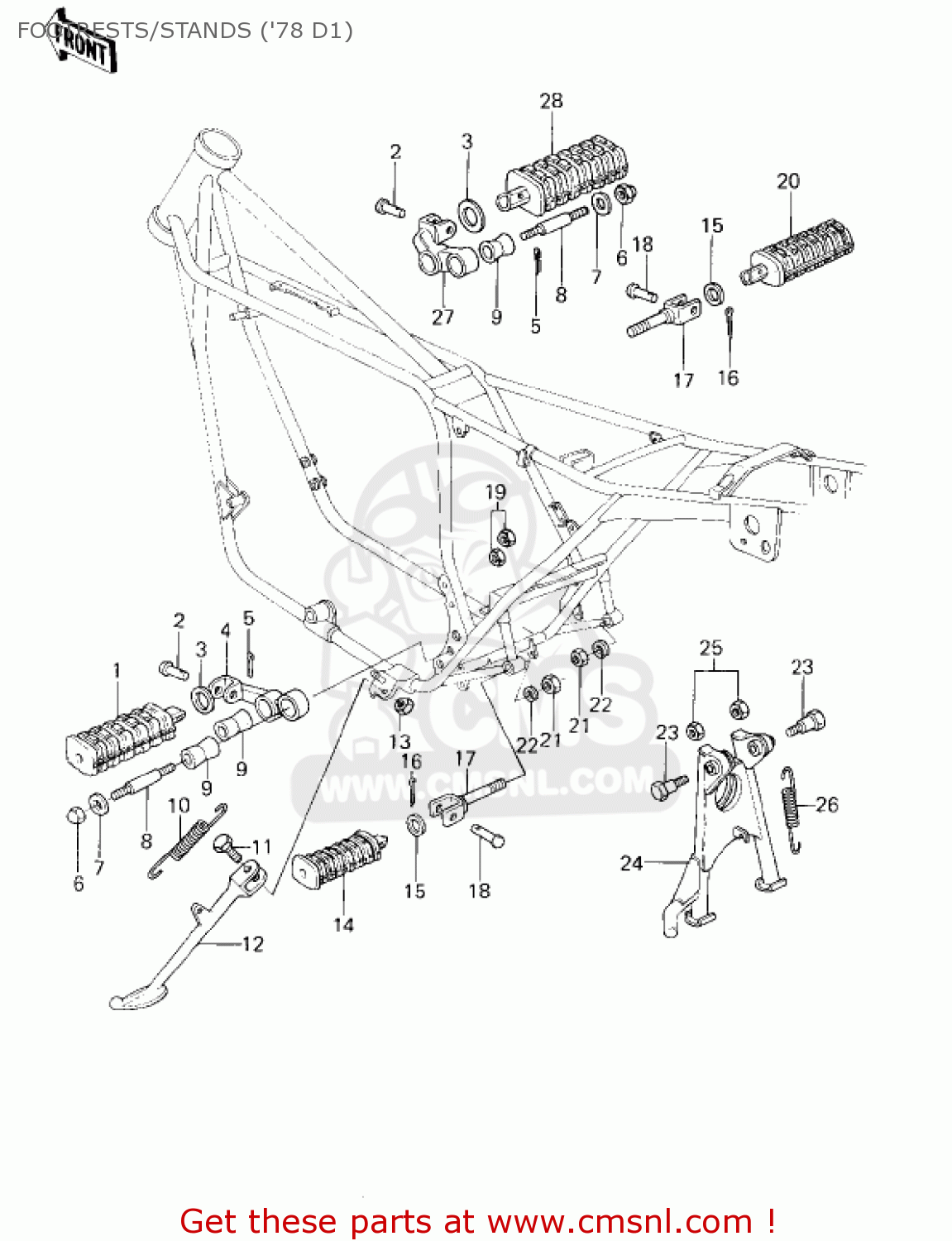

Footrests/stands ('78 d1) diagram KZ1000D1 Z1R 1978 CANADA
FOOTRESTS/STANDS ('78 D1) KZ1000D1 Z1R 1978 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
340281007
ref: 1
STEP,FOOTREST,FR.L.H
€ 35.50
2
92043080
ref: 2
PIN-FOOTREST BAR FIT
€ 3.50
3
92022250
ref: 3
WASHER,PLAIN
€ 3.00
4
34003036
ref: 4
BRACKET-FOOTREST,L.H
€ 67.50
5
550D2516
ref: 5
PIN-COTTER,2.5X16
€ 1.50
6
92019013
ref: 6
NUT,CAP,LOCK,8MM
€ 5.50
7
92102010
ref: 7
CAP,STEP
€ 4.50
8
92004048
ref: 8
STUD-FOOTREST BAR FIT
€ 8.00
9
92075140
ref: 9
DAMPER,STEP
€ 6.00
10
34025005
ref: 10
SPRING-SIDE STAND
€ 5.00
11
92003079
ref: 11
BOLT-SIDE STAND
€ 7.50
12
340241015
ref: 12
STAND,SIDE
€ 60.50
13
315B1000
ref: 13
NUT,10MM
€ 0.50
14
340281009
ref: 14
STEP,RR,LH
€ 26.50
15
92022181
ref: 15
WASHER,22.5X30X2.6
€ 3.50
16
550D2012
ref: 16
PIN,COTTER,2.0X12
€ 0.50
17
34029014
ref: 17
BRACKET,REAR FOOTREST
€ 9.50
18
920431464
ref: 18
PIN
€ 5.50
19
315B1000
ref: 19
NUT,10MM
€ 0.50
20
340281010
ref: 20
STEP,RR,RH
€ 49.50
21
314B1000
ref: 21
NUT,10MM
€ 0.50
22
461F1000
ref: 22
WASHER-SPRING,10MM
€ 0.50
23
34019014
ref: 23
SHAFT-STAND,CNT
€ 16.00
24
340111004
ref: 24
STAND,MAIN
€ 124.00
25
92016044
ref: 25
NUT,14MM
€ 4.50
26
34023012
ref: 26
SPRING,MAIN STAND
€ 10.00
27
34003037
ref: 27
BRACKET-FOOTREST,R.H
€ 21.00
28
340281008
ref: 28
STEP,FOOTREST,FR.R.H
€ 38.00
