REAR BRAKE ('80 D3)
KZ1000D1 Z1R 1978 CANADA

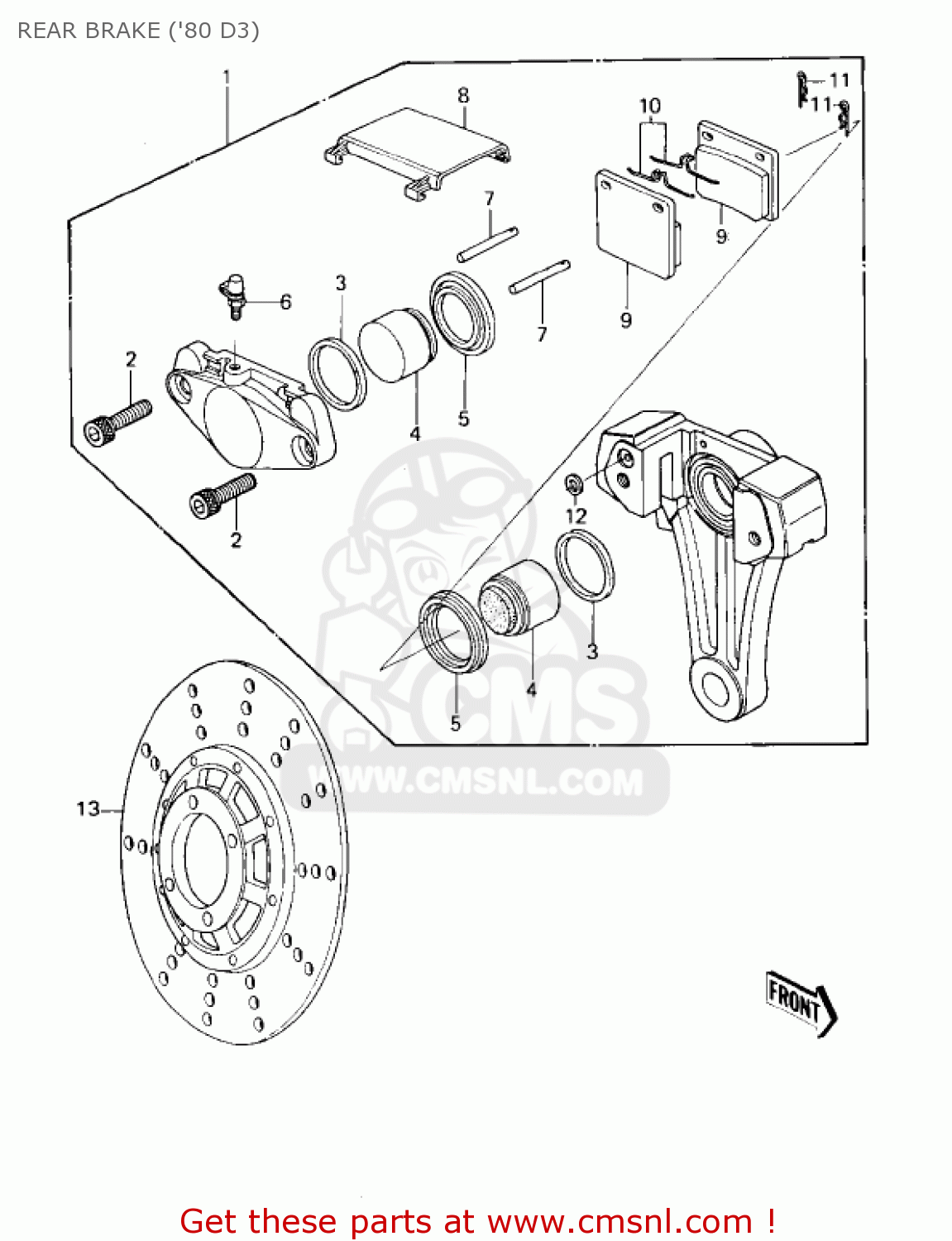

Rear brake ('80 d3) diagram KZ1000D1 Z1R 1978 CANADA
REAR BRAKE ('80 D3) KZ1000D1 Z1R 1978 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
430411013
ref: 1
CALIPER ASSY,REAR
€ 348.00
2
43033005
ref: 2
BOLT
€ 6.00
3
43049002A
ref: 3
PISTON SEAL RING
€ 9.00
4
430201011
ref: 4
PISTON-COMP-BRAKE
€ 65.50
5
43054004
ref: 5
BOOT,PISTON
€ 10.00
6
43085001
ref: 6
BREEDER SET
€ 16.50
7
43045007
ref: 7
PIN CALIPER
€ 4.00
8
43024004
ref: 8
COVER-SEAL,CALIPER
€ 13.50
9
430821002
ref: 9
PAD SET (MCA)
€ 35.50
10
43086002
ref: 10
SPRING
€ 5.50
11
43084003
ref: 11
CLIP, PAD
€ 2.50
12
43053008
ref: 12
RING,SEAL,8.5X13.5X2.
€ 8.00
13
410801023
ref: 13
DISC PLATE,REAR BRAKE
€ 335.00
