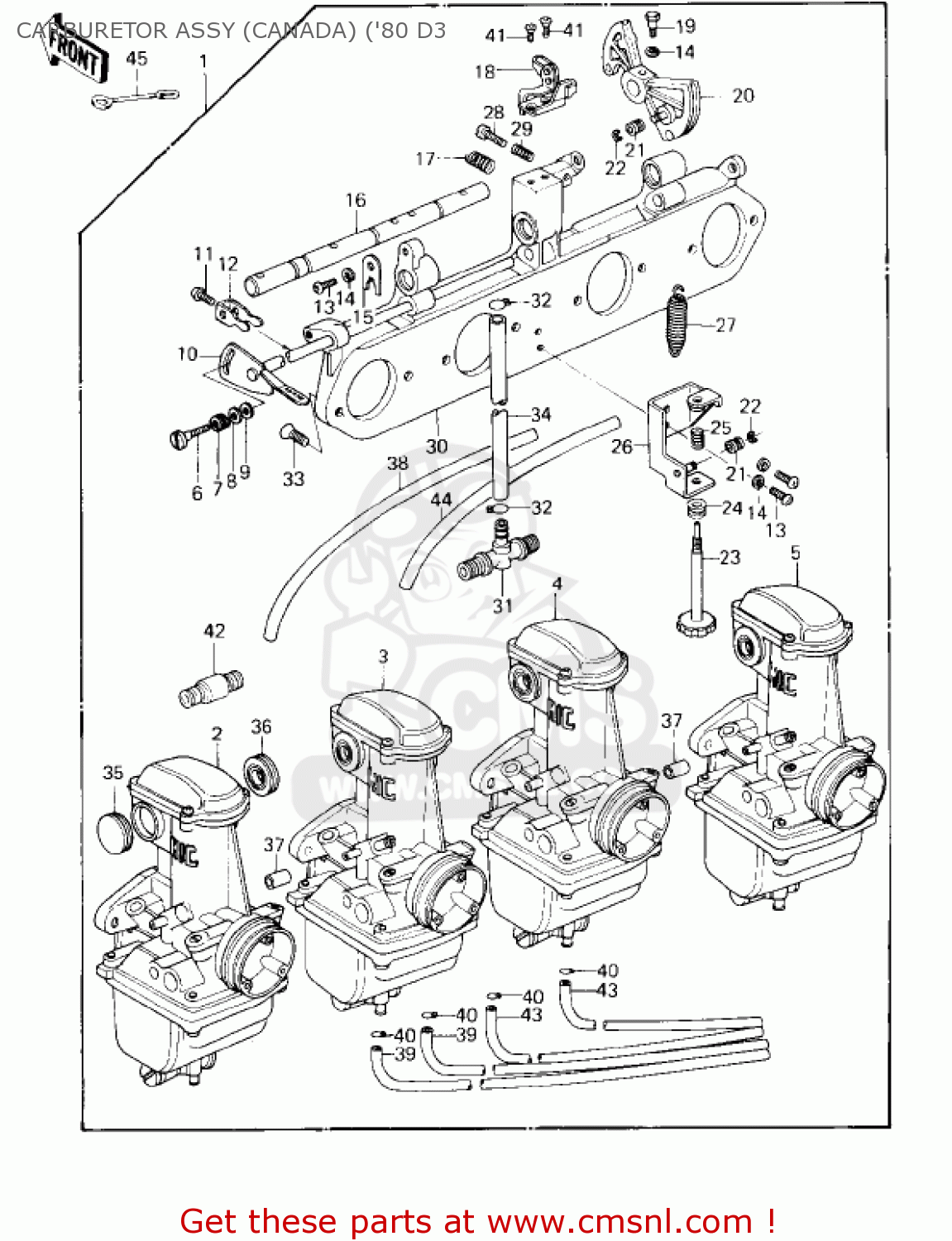

CARBURETOR ASSY (CANADA) ('80 D3

ref

part #

description

quantity

1

160011126
ref: 1

CARBURETOR ASSEMBLY

€ 822.50

2

160011169
ref: 2

CARBURETOR,OUTSIDE,LH

€ 266.50

3

160011170
ref: 3

CARBURETOR,INSIDE,LH

€ 266.50

4

160011171
ref: 4

CARBURETOR,INSIDE,RH

€ 266.50

5

160011172
ref: 5

CARBURETOR,OUTSIDE,RH

€ 266.50

6

16046005
ref: 6

SCREW

€ 4.50

7

16040009
ref: 7

SPRING,F

€ 6.50

8

16039020
ref: 8
STEEL

WASHER,PLAIN

€ 3.50

8

410B0500
ref: 8
STEEL

WASHER-PLAIN-SMALL,5M

€ 0.50

9

16039019
ref: 9
NYLON

WASHER-PLAIN

€ 3.00

10

16041021
ref: 10

SHAFT,STARTER PLUNGER

€ 37.50

11

16046007
ref: 11

SCREW,PAN HEAD,5X7

€ 6.50

12

131681026
ref: 12

LEVER,STARTER PLUNGER

€ 13.50

13

220B0514
ref: 13

ACREW-PAN HEAD,5X14

€ 2.50

14

461F0500
ref: 14

WASHER-SPRING,5MM

€ 0.50

15

16055012
ref: 15

PLATE,SHAFT STOPPER

€ 7.00

16

16041017
ref: 16

SHAFT,CARB CONNECTION

€ 47.50

17

16040022
ref: 17

SPRING,CABLE PLY BKT

€ 6.00

18

16077017
ref: 18

BRACKET,THROTTLE CABL

€ 41.00

19

16067006
ref: 19

BOLT-HEX HEAD,5X14

€ 10.50

20

131681024
ref: 20

PULLY,THROTTLE CABLE

€ 39.00

21

16073016
ref: 21

RING

€ 8.00

22

482K3000
ref: 22

CIRCLIP-TYPE-E,3MM

€ 2.00

23

160211006
ref: 23

SCREW,THROTTLE STOP

€ 18.50

24

920281071
ref: 24

BUSHING,IDLING ADJUST

€ 4.50

25

16022017
ref: 25

SPRING, THROTTLE STOP

€ 4.50

26

110341185
ref: 26

BRACKET,THROTTLE CABL

€ 27.00

27

920811028
ref: 27

SPRING,THORTTLE PULLY

€ 41.00

28

160211011
ref: 28

SCREW,ADJUSTER

€ 7.00

29

16022010
ref: 29

SPRING,THROTTLE ADJST

€ 4.50

30

160651009
ref: 30

HOLDER,CARBURETOR MOT

€ 103.00

31

920051010
ref: 31

NIPPLE,FUEL HOSE

€ 19.50

32

920371184
ref: 32

CLAMP,HOSE

€ 1.00

33

16033029
ref: 33

SCREW,PAN HEAD,6X14

€ 3.00

33

221B0614
ref: 33

SCREW-CNTSNK HD,6X14

€ 2.50

34

920591123
ref: 34

TUBE,7.5X12.5X225

€ 17.00

35

16039042
ref: 35

CAP,RUBBER

€ 9.00

36

92071104
ref: 36

GROMMET,CARBURETOR

€ 16.00

37

92059141
ref: 37

HOSE, 6X11.5X16

€ 9.00

38

920591028
ref: 38

HOSE,AIR VENT,5X8X550

€ 13.00

39

92059147
ref: 39

HOSE,FUEL OVERFLOW

€ 17.50

40

92037178
ref: 40

CLAMP

€ 7.00

41

221B0510A
ref: 41

SCREW-CNTSNK HD,5X10

€ 2.50

42

920051009
ref: 42

FITTING,FUEL TUBE

€ 36.50

43

92059147
ref: 43
ACTUAL L = 500 M/M

HOSE,FUEL OVERFLOW

€ 17.50

44

920591028
ref: 44
ACTUAL L = 530 M/M

HOSE,AIR VENT,5X8X550

€ 13.00

45

92037134
ref: 45

CLAMP,OVER FLOW PIPE

€ 7.50
