CLUTCH ('80 D3)
KZ1000D1 Z1R 1978 CANADA

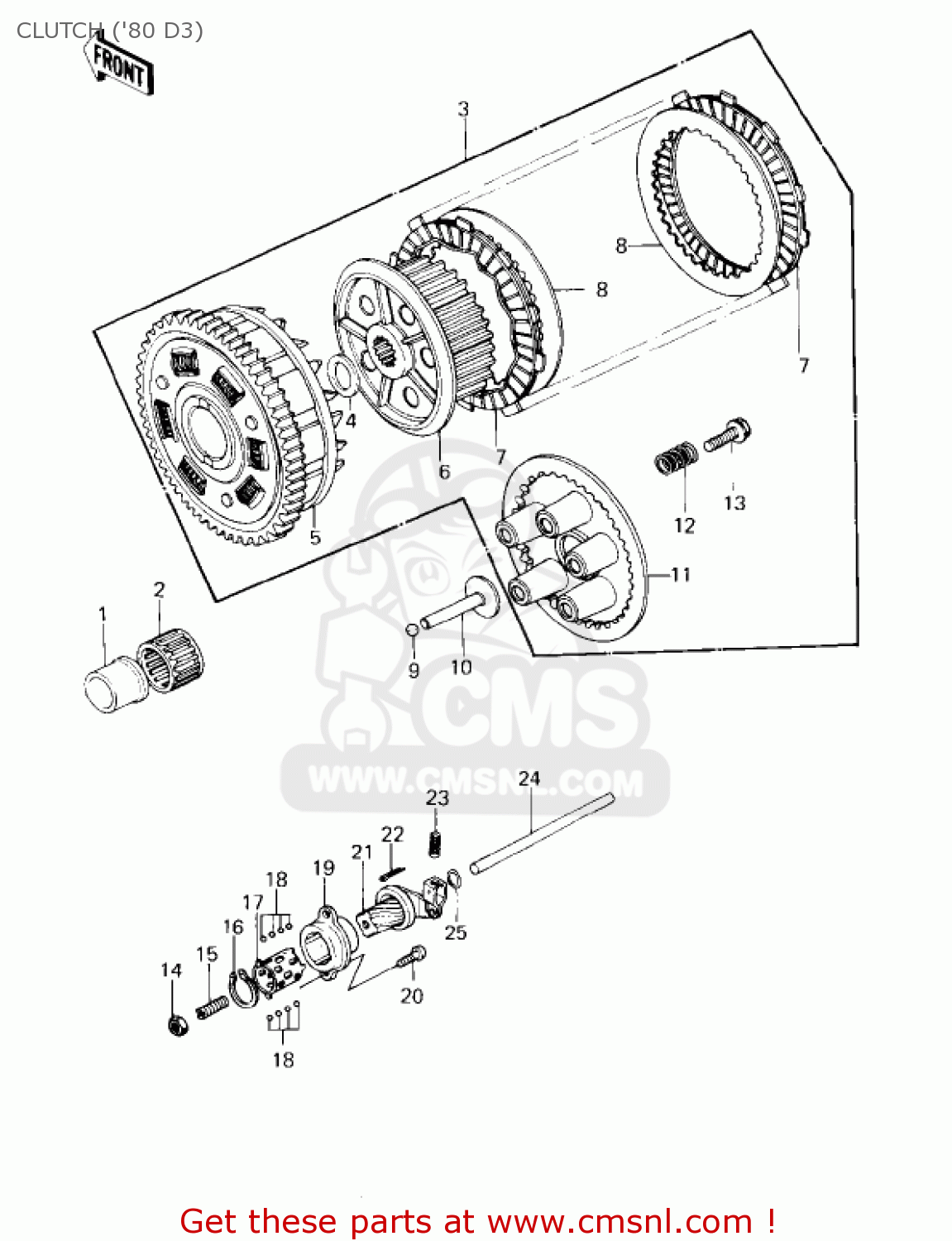

Clutch ('80 d3) diagram KZ1000D1 Z1R 1978 CANADA
CLUTCH ('80 D3) KZ1000D1 Z1R 1978 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
92028135
ref: 1
BUSHING,CLUTCH
€ 35.50
2
92046028
ref: 2
KTV32372
BEARING-NEEDLE,KTV323
€ 20.50
3
130811014
ref: 3
CLUTCH ASSY
€ 636.50
4
92026022
ref: 4
SPACER,25.5X47X2.5
€ 6.50
5
130811367
ref: 5
CLUTCH-ASSY
€ 636.50
6
130811367
ref: 6
CLUTCH-ASSY
€ 636.50
7
13088030
ref: 7
PLATE-FRICTION (NAS)
€ 14.50
8
13089022
ref: 8
PLATE-CLUTCH (NAS)
€ 8.50
9
600A1200
ref: 9
BALL-STEEL,3/8
€ 0.50
10
13116022
ref: 10
ROD-PUSH,CLUTCH SPRIN
€ 15.50
11
13187006
ref: 11
PLATE-CLUTCH OPERATIN (NAS)
€ 44.50
12
920811033
ref: 12
SPRING,CLUTCH
€ 6.50
13
920011066
ref: 13
BOLT, CLUTCH SPR FITT
€ 4.00
14
318B0800
ref: 14
NUT,8MM
€ 0.50
15
92014014
ref: 15
SCREW-SLOTTED,8X25
€ 4.00
16
480J1500
ref: 16
CIRCLIP-TYPE-C,15MM
€ 1.00
17
13197004
ref: 17
RETAINER
€ 1.00
18
600A0400
ref: 18
BALL-STEEL,1/8
€ 2.00
19
13118011
ref: 19
OUTER,CLUTCH REREASEL
€ 14.00
20
220B0616
ref: 20
SCREW-PAN HEAD,6X16
€ 2.50
21
13102019
ref: 21
INNER,CLUTCH RELEASE
€ 48.00
22
550D1615
ref: 22
PIN-COTTER,1.6X15
€ 1.50
23
92081069
ref: 23
SPRING-CLUTCH RELEASE
€ 4.50
24
13116021
ref: 24
ROD-PUSH,CLUTCH
€ 15.50
25
670B1507
ref: 25
O RING,7MM
€ 1.00
