CHASSIS ELECTRICAL EQUIPMENT ('7
KZ1000D1 Z1R 1978 CANADA

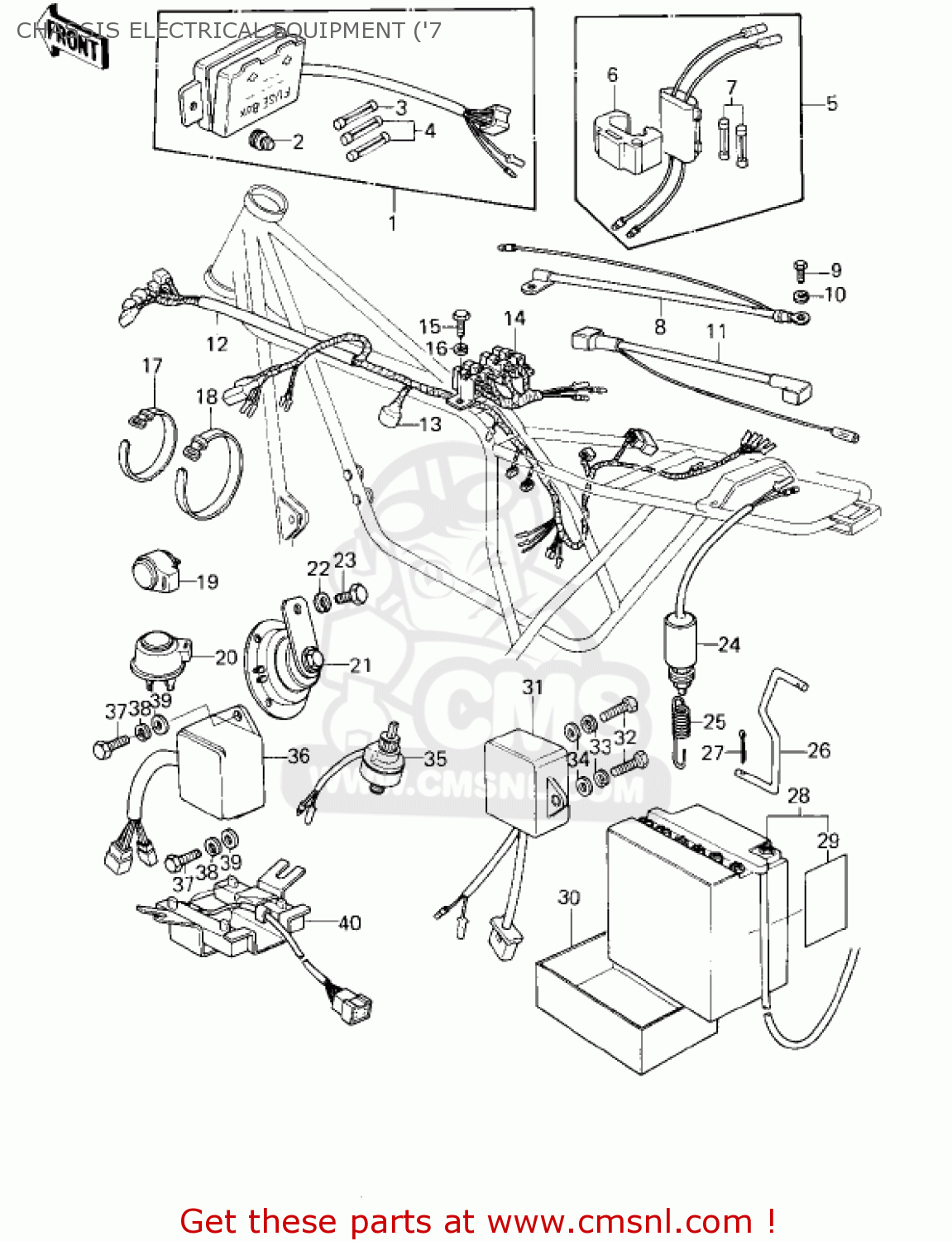

Chassis electrical equipment ('7 diagram KZ1000D1 Z1R 1978 CANADA
CHASSIS ELECTRICAL EQUIPMENT ('7 KZ1000D1 Z1R 1978 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
260041002
ref: 1
FUSE-ASSY
€ 55.00
2
92075279
ref: 2
DAMPER,FUSE
€ 3.50
3
26006005
ref: 3
FUSE 20A
€ 3.50
4
26006003
ref: 4
FUSE 10A
€ 3.00
5
260041003
ref: 5
FUSE ASSY
€ 27.00
6
920751044
ref: 6
DAMPER,FUSE
€ 6.00
7
260061001
ref: 7
L = 30 MM
FUSE,2A L=30M/M
€ 2.00
8
26010054
ref: 8
WIRE-LEAD,BATTERY GRO
€ 17.00
9
92001137
ref: 9
BOLT,HEX HEAD,6M/M
€ 4.00
10
461F0600
ref: 10
WASHER-SPRING,6MM
€ 0.50
11
260111018
ref: 11
WIRE,STARTER LEAD
€ 19.50
12
260011038
ref: 12
WIRING HARNESS,MAIN
€ 250.00
13
26009003
ref: 13
COVER-WIRING HARNESS
€ 2.00
14
260011039
ref: 14
WIRING HARNESS,CENTER
€ 73.00
15
112G0612
ref: 15
BOLT-UPSET
€ 2.50
16
461F0600
ref: 16
WASHER-SPRING,6MM
€ 0.50
17
92072030
ref: 17
L = 123 MM
BAND,SHORT
€ 3.00
18
92072056
ref: 18
L = 186 MM
BAND,RUBBER
€ 3.00
19
27002011
ref: 19
RELAY-ASSY,TURN SIGNA
€ 69.50
20
27002016
ref: 20
RELAY-ASSY,HAZARD
€ 26.50
21
270031006
ref: 21
HORN
€ 99.00
22
461F0800
ref: 22
WASHER-SPRING,8MM
€ 0.50
23
115G0816
ref: 23
BOLT-HEX,HEAD 8X16
€ 0.50
24
27010017
ref: 24
SWITCH,BRAKE LAMP
€ 23.50
25
27011009
ref: 25
SPRING-BRAKE LAMP SW
€ 4.50
26
27012010
ref: 26
HOOK,BRAKE LAMP SWITC
€ 9.00
27
550D1610
ref: 27
PIN-COTTER,1.6X10
€ 2.00
28
260121008
ref: 28
YB-14
BATTERY,12V13AH W/LAB
€ 101.50
29
560401036
ref: 29
WARNING, BATTERY
€ 2.00
30
32099015
ref: 30
CASE,BATTERY
€ 9.00
31
270101016
ref: 31
SWITCH,TURN SIGNAL OP
€ 137.50
32
112G0620
ref: 32
BOLT 6X20
€ 1.00
33
461F0600
ref: 33
WASHER-SPRING,6MM
€ 0.50
34
411B0600
ref: 34
WASHER-PLAIN,6MM
€ 0.50
35
270101017
ref: 35
SWITCH,COMBINATION
€ 76.00
36
270101007
ref: 36
RESERVE LAMP SWITCH
€ 119.00
37
112G0616
ref: 37
BOLT UPSET,6X16
€ 1.00
38
461F0600
ref: 38
WASHER-SPRING,6MM
€ 0.50
39
410B0600
ref: 39
WASHER-PLAIN-SMALL,6M
€ 0.50
40
280181005
ref: 40
RESISTOR
€ 51.50
