TURN SIGNALS ('80-'81 KE175-D2/D

KE175-D4 KE175 1982 USA CANADA

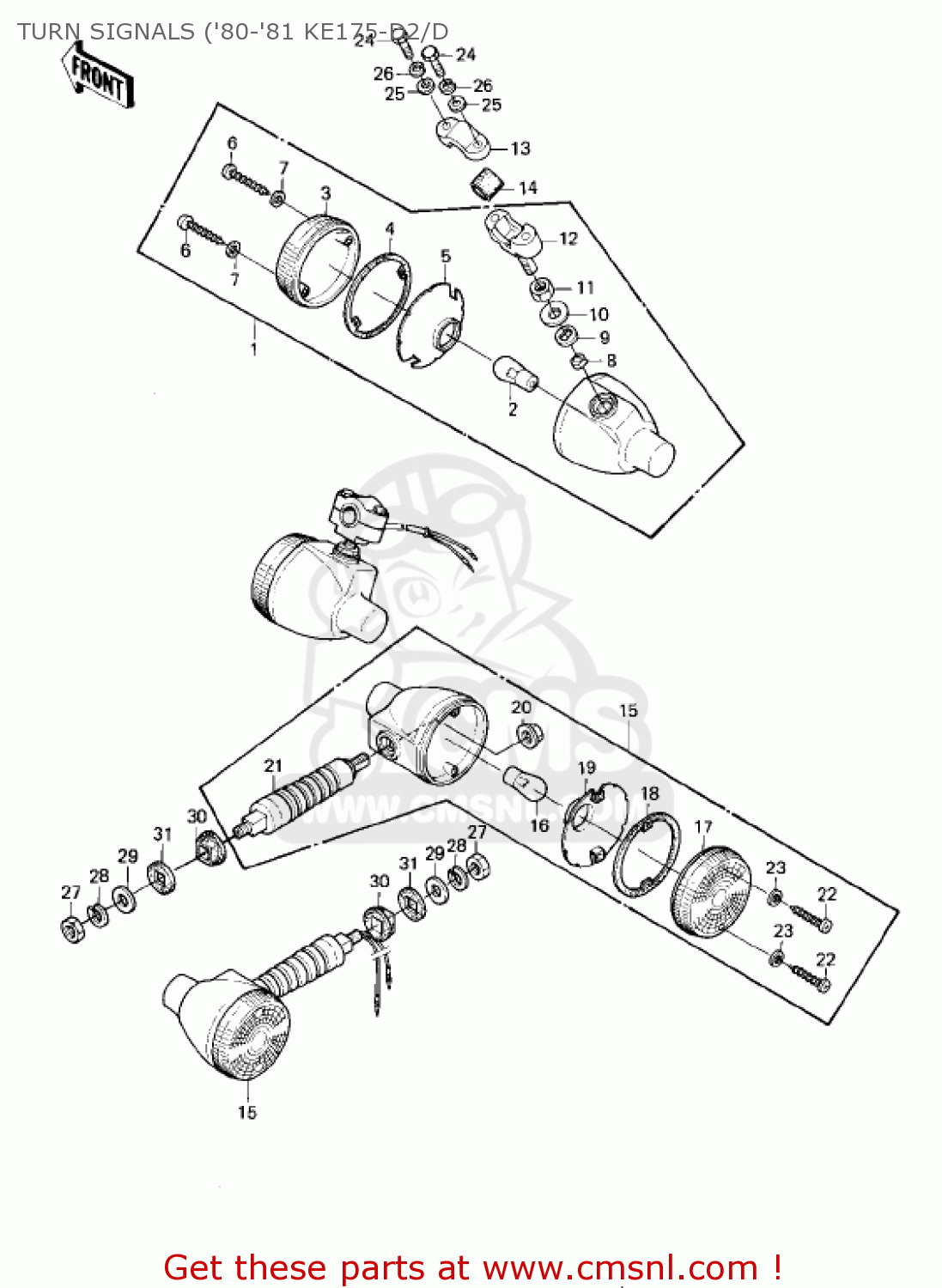

Turn signals ('80-'81 ke175-d2/d diagram KE175-D4 KE175 1982 USA CANADA

TURN SIGNALS ('80-'81 KE175-D2/D KE175-D4 KE175 1982 USA CANADA

TURN SIGNALS ('80-'81 KE175-D2/D KE175-D4 KE175 1982 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

230371039
ref: 1

LAMP-ASSY-SIGNAL,FR

€ 55.00

2

92069056
ref: 2

BULB,6V 21CP

€ 4.50

3

230481076
ref: 3

LENS-SIGNAL LAMP

€ 10.50

4

110091128
ref: 4

GASKET,TURN SIGNAL LA (NAS)

€ 3.00

5

230351003
ref: 5

SIGNAL LAMP REFLECTOR

€ 9.50

6

920091056
ref: 6

SCREW,TAPPING

€ 2.50

7

23058002
ref: 7

WASHER,PLAIN,4MM

€ 2.00

8

920271182
ref: 8

COLLAR,SIGNAL LAMP

€ 4.00

9

110091133
ref: 9

GASKET,SIGNL LMP BRKT

€ 2.00

10

920221137
ref: 10

WASHER,10.5X24X1.6

€ 2.50

11

920151073
ref: 11

NUT,10MM

€ 4.00

12

230511028
ref: 12

BRACKET-SIGNAL LAMP

€ 17.00

13

230511018
ref: 13

BRACKET-SIGNAL LAMP

€ 6.00

14

23066003
ref: 14

DAMPER

€ 3.50

15

230371040
ref: 15

REAR SIGNAL LAMP ASSEMBLY

€ 58.50

16

92069056
ref: 16

BULB,6V 21CP

€ 4.50

17

230481076
ref: 17

LENS-SIGNAL LAMP

€ 10.50

18

110091128
ref: 18

GASKET,TURN SIGNAL LA (NAS)

€ 3.00

19

230351003
ref: 19

SIGNAL LAMP REFLECTOR

€ 9.50

20

920151072
ref: 20

NUT,10MM

€ 2.50

21

230511029
ref: 21

TURN SIGNAL BRACKET,RH

€ 24.50

22

920091056
ref: 22

SCREW,TAPPING

€ 2.50

23

23058002
ref: 23

WASHER,PLAIN,4MM

€ 2.00

24

110B0530A
ref: 24

BOLT,HEX HEAD,5X30

€ 2.50

25

410B0500
ref: 25

WASHER-PLAIN-SMALL,5M

€ 0.50

26

461F0500
ref: 26

WASHER-SPRING,5MM

€ 0.50

27

315B1000
ref: 27

NUT,10MM

€ 0.50

28

461F1000
ref: 28

WASHER-SPRING,10MM

€ 0.50

29

920221071
ref: 29

WASHER,10.5X32X1.6

€ 2.50

30

920751079
ref: 30

DAMPER,RUBBER

€ 2.50

31

920751080
ref: 31

DAMPER,RUBBER

€ 2.50
