IGNITION SWITCH/LOCKS/REFLECTORS

KE175-D4 KE175 1982 USA CANADA

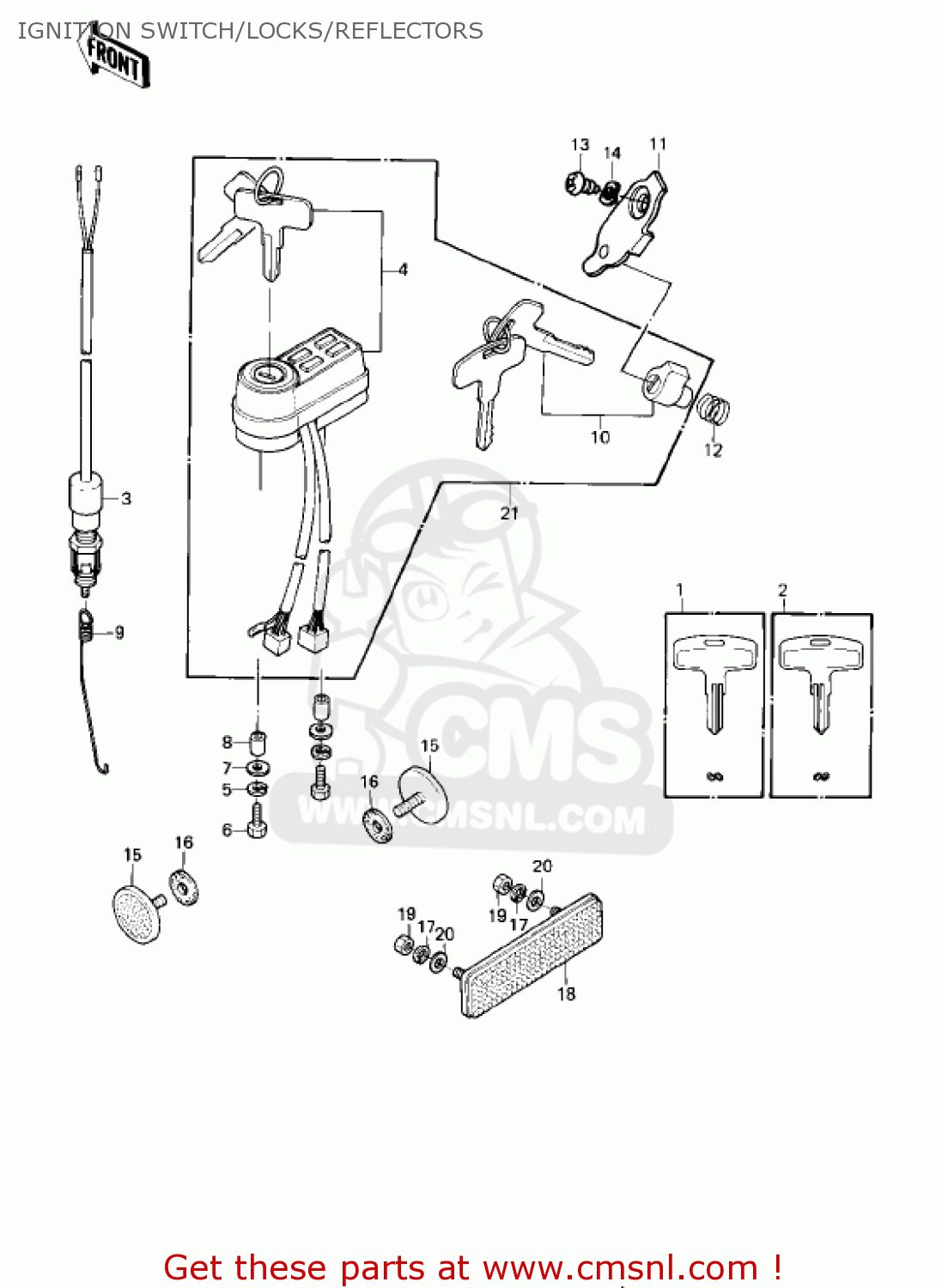

Ignition switch/locks/reflectors diagram KE175-D4 KE175 1982 USA CANADA

IGNITION SWITCH/LOCKS/REFLECTORS KE175-D4 KE175 1982 USA CANADA
IGNITION SWITCH/LOCKS/REFLECTORS KE175-D4 KE175 1982 USA CANADA
IGNITION SWITCH/LOCKS/REFLECTORS KE175-D4 KE175 1982 USA CANADA
prices are in EUR
ref
part #
description
quantity
1
270081026
ref: 1
OPTION
KEY-LOCK,BLANK
270081026
€ 10.50
2
270081027
ref: 2
KEY-LOCK,BLANK
270081027
€ 10.50
3
27010025
ref: 3
SWITCH,BRAKE LAMP
27010025
€ 18.50
4
270051005
ref: 4
IGNITION SWITCH ASSEMBLY
270051005
€ 85.00
5
461F0600
ref: 5
WASHER-SPRING,6MM
461F0600
€ 0.50
6
112B0622
ref: 6
BOLT, 6X22
€ 2.50
7
92022125
ref: 7
WASHER,6.5X20X1.6
92022125
€ 1.00
8
92027241
ref: 8
COLLAR
92027241
€ 4.50
9
920811082
ref: 9
SPRING,BRAKE L.SWITCH
920811082
€ 6.50
10
27016042
ref: 10
LOCK-ASSY,STEERING
27016042
€ 36.00
11
110121134
ref: 11
CAP,STEERING LOCK
110121134
€ 4.50
12
27032001
ref: 12
SPRING-STEERING LOCK
27032001
€ 3.50
13
92008007
ref: 13
SCREW-TAPPING
92008007
€ 2.50
14
92097003
ref: 14
WASHER
92097003
€ 2.50
15
28012016
ref: 15
REFLECTOR REFLEX
28012016
€ 16.00
16
92094011
ref: 16
DAMPER,REFLECTOR
92094011
€ 3.00
17
461F0500
ref: 17
WASHER-SPRING,5MM
461F0500
€ 0.50
18
280121005
ref: 18
REFLECTOR-REFLEX,RR
280121005
€ 16.50
19
311B0500
ref: 19
NUT-HEX
311B0500
€ 0.50
20
411B0500
ref: 20
WASHER-PLAIN,5MM
411B0500
€ 0.50
21
270045018
ref: 21
OPTION
LOCK ASSEMBLY,KE175-D2
270045018
€ 88.00
