SWING ARM/SHOCK ABSORBERS ('80-'

KE175-D4 KE175 1982 USA CANADA

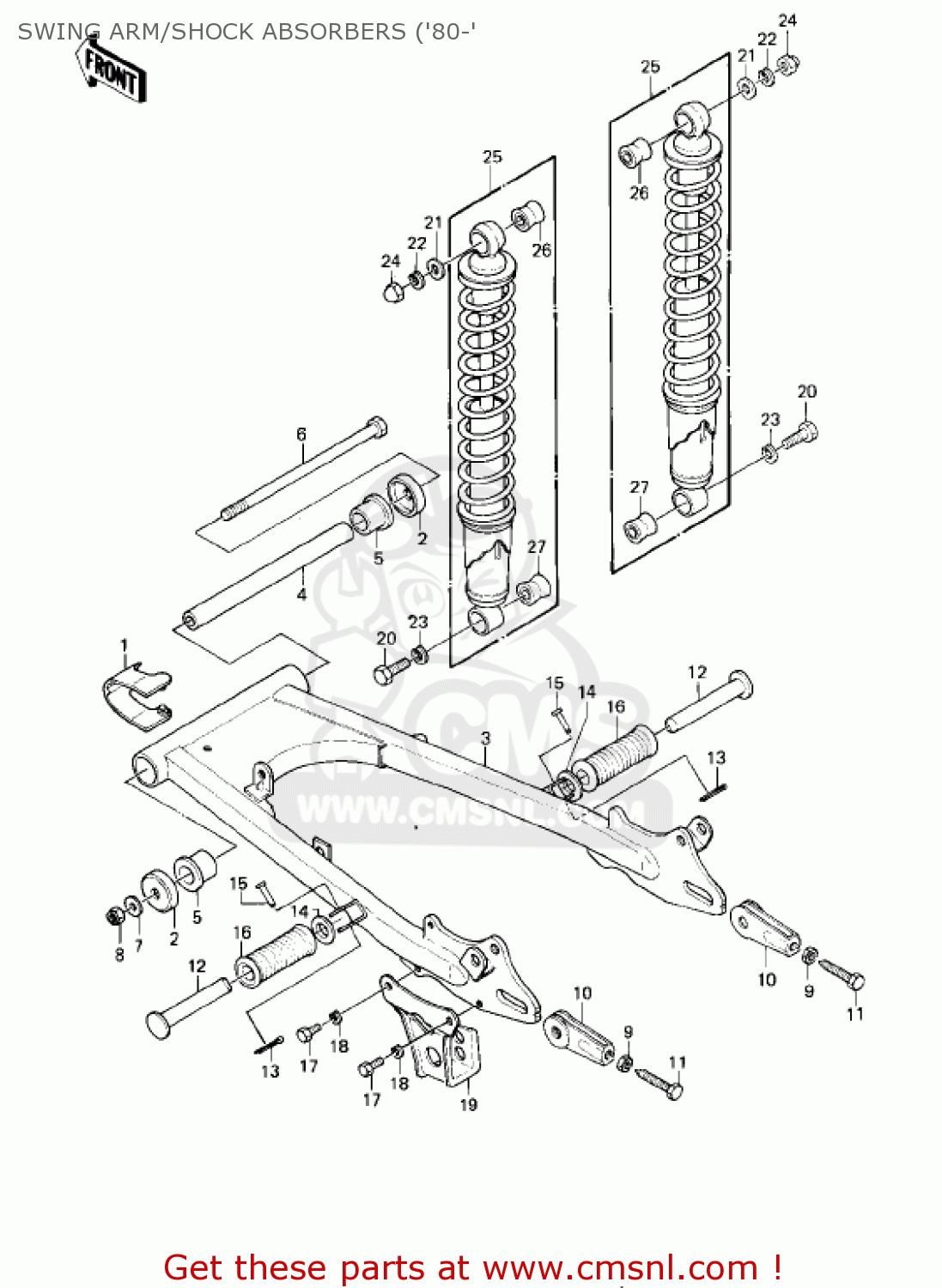

Swing arm/shock absorbers ('80-' diagram KE175-D4 KE175 1982 USA CANADA

SWING ARM/SHOCK ABSORBERS ('80-' KE175-D4 KE175 1982 USA CANADA

SWING ARM/SHOCK ABSORBERS ('80-' KE175-D4 KE175 1982 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

550201063
ref: 1

GUARD,CHAIN,FR

€ 8.00

2

110121036
ref: 2

CAP,SWING ARM

€ 9.50

3

330011061
ref: 3

SWING ARM

€ 186.00

4

420361019
ref: 4

SLEEVE,SWING ARM

€ 35.00

5

920281027
ref: 5

BUSHING,L=40

€ 15.00

6

330321005
ref: 6

SHAFT-SWING ARM

€ 24.00

7

410B1200
ref: 7

WASHER-PLAIN-SMALL,12

€ 0.50

8

92019009
ref: 8

NUT,LOCK,12MM

€ 5.00

9

318B0800
ref: 9

NUT,8MM

€ 0.50

10

330401010
ref: 10

ADJUSTER-CHAIN

€ 14.00

11

920011399
ref: 11

BOLT,8X50

€ 6.00

12

34028009
ref: 12

BAR-REAR FOOTREST

€ 24.00

13

550D2015
ref: 13

PIN-COTTER,2.0X15

€ 1.00

14

92022199
ref: 14

WASHER,20X30X2.3

€ 5.00

15

920431464
ref: 15

PIN

€ 5.50

16

92076024
ref: 16

DAMPER,STEP

€ 14.50

17

112G0612
ref: 17

BOLT-UPSET

€ 2.50

18

461F0600
ref: 18

WASHER-SPRING,6MM

€ 0.50

19

550201026
ref: 19

GUARD,CHAIN,RR

€ 15.50

20

920011252
ref: 20

BOLT,HEX HEAD,10X35

€ 3.50

21

411B0800
ref: 21

WASHER-PLAIN,8MM

€ 0.50

22

461F0800
ref: 22

WASHER-SPRING,8MM

€ 0.50

23

461F1000
ref: 23

WASHER-SPRING,10MM

€ 0.50

24

323N0800
ref: 24

NUT-CAP-SMALL,8MM

€ 2.50

25

450141137
ref: 25
KE125-D2

SHOCKABSORBER,RR

€ 145.50

25

450141137
ref: 25
KE125-D3~

SHOCKABSORBER,RR

€ 145.50

26

920751217
ref: 26

DAMPER,SHOCKABSORBER,

€ 10.00

27

920751216
ref: 27

BUSHING,SHOCK ABSORBR

€ 12.00
