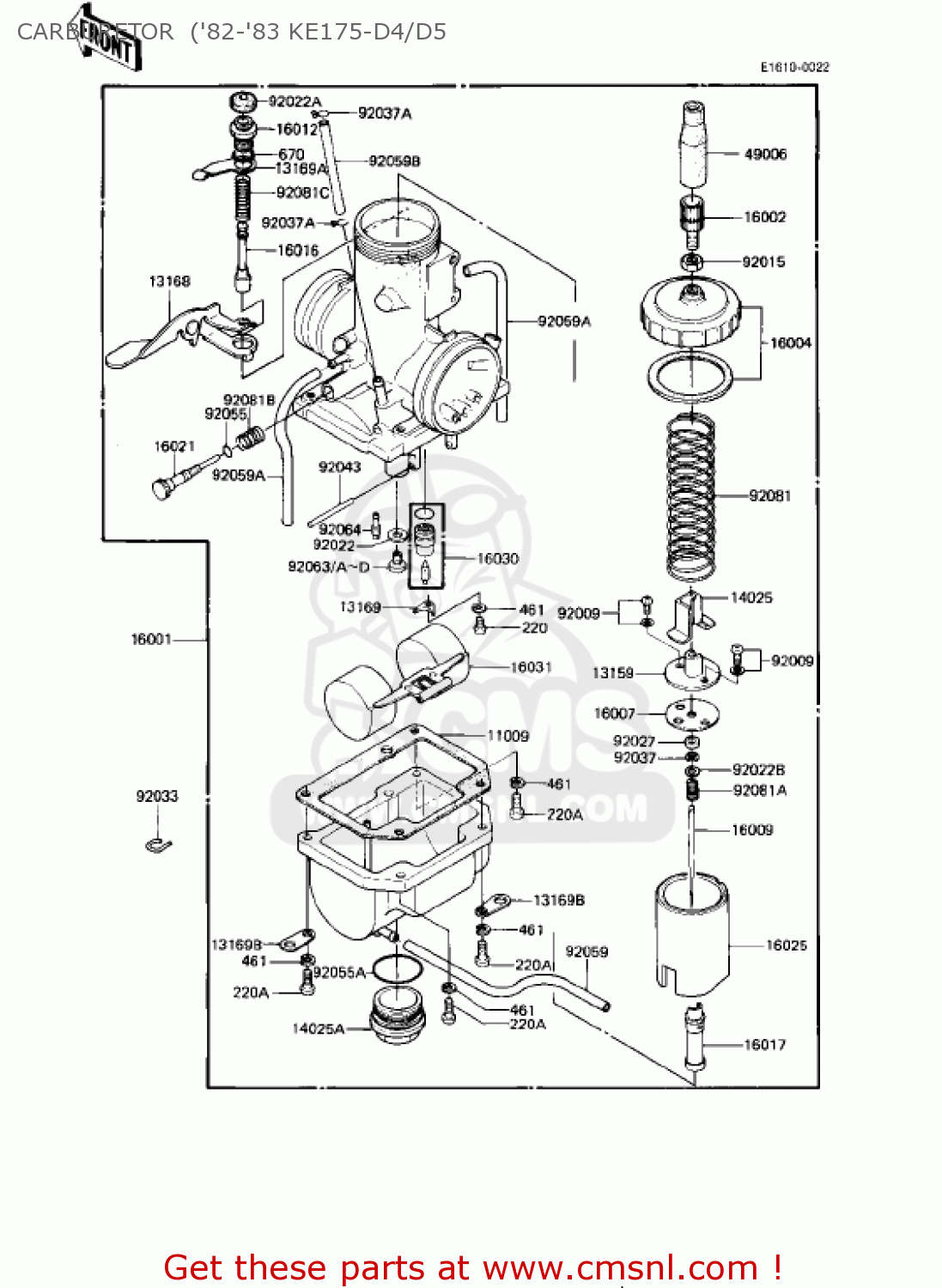

CARBURETOR ('82-'83 KE175-D4/D5

ref

part #

description

quantity

11009

110091178
ref: 11009

GASKET,FLOAT CHAMBER

€ 7.00

13159

131591010
ref: 13159

CONNECTOR,THROTTLE

€ 9.00

13168

16063004
ref: 13168

LEVER,STARTER PLUNGER

€ 22.50

13169

131691190
ref: 13169

PLATE,LOCK

€ 3.50

13169A

131691224
ref: 13169A

SPRING PLATE,STARTER

€ 10.50

13169B

131691226
ref: 13169B

PLATE,TUBE CLAMP

€ 5.00

14025

140251197
ref: 14025

COVER,THROTTLE VALVE

€ 5.50

14025A

140251198
ref: 14025A

COVER,FLOAT CHAMBER

€ 9.00

16001

160011266
ref: 16001

CARBURETOR

€ 189.00

16002

16002014
ref: 16002

ADJUSTER-CABLE

€ 8.00

16004

16004018
ref: 16004

CAP-CHAMBER,MIXING

€ 15.00

16007

160071011
ref: 16007

THROTTLE VALVE PLATE

€ 9.00

16009

160091053
ref: 16009

JET,NEEDLE,5CT34

€ 8.50

16012

16012019
ref: 16012

CAP-STARTER PLUNGER

€ 12.50

16016

160161011
ref: 16016

PLUNGER,STARTER

€ 18.50

16017

160171050
ref: 16017

JET,NEEDLE#0-6

€ 16.50

16021

160211012
ref: 16021

SCREW-THROTTLE STOP

€ 10.50

16025

160251043
ref: 16025

THROTTLE VALVE,CA2.0

€ 46.00

16030

160301011
ref: 16030

VALVE-FLOAT,2.0

€ 29.50

16031

160311011
ref: 16031

FLOAT

€ 35.00

49006

490061169
ref: 49006

BOOT,CARBURETOR

€ 22.00

92009

16033031
ref: 92009

SCREW, PAN HEAD, 3X14

€ 3.50

92015

16003006
ref: 92015

NUT-CABLE ADJUST LOCK

€ 4.50

92022

16034001
ref: 92022

WASHER-MAIN JET

€ 2.50

92022A

16039015
ref: 92022A

CAP,STARTER PLUNGER

€ 4.50

92022B

920221024
ref: 92022B

WASHER,THROTTLE VALVE

€ 4.50

92027

920271103
ref: 92027

RING,JET NEEDLE

€ 4.50

92033

92036018
ref: 92033

CIRCLIP

€ 2.50

92037

16008010
ref: 92037

CLAMP,E-TYPE

€ 5.00

92037A

92037072
ref: 92037A

CLAMP,TUBE

€ 4.00

92043

16032003
ref: 92043

FLOAT PIN

€ 4.00

92055

92055044
ref: 92055

'O' RING

€ 7.00

92055A

920551078
ref: 92055A

O RING,PILOT SCREW

€ 4.00

92059

920591078
ref: 92059

SWITCH VALVE,CLEANER TUBE

€ 13.50

92059A

920591116
ref: 92059A

TUBE,3X5X100

€ 6.00

92059B

92059130
ref: 92059B

PIPE,FUEL

€ 15.50

92063

920631035
ref: 92063

MAIN JET,#97.5R

€ 10.00

92063A

920631033
ref: 92063A

JET-MAIN,#A100R

€ 17.00

92063B

920631042
ref: 92063B

JET-MAIN,#A105R

€ 10.50

92063C

92063073
ref: 92063C

JET-MAIN,#107.5R

€ 9.50

92063D

920631028
ref: 92063D

JET-MAIN,#A102.5R

€ 10.00

92064

920641026
ref: 92064

PILOT JET,#22.5

€ 9.00

92081

16006023
ref: 92081

SPRING,THROTTLE VALV

€ 10.00

92081A

920811072
ref: 92081A

NEEDLE JET SPRING

€ 2.50

92081B

920811152
ref: 92081B

SPRING,THROTTLE ADJST

€ 4.00

92081C

920811181
ref: 92081C

SPRING,STARTER PLUNG

€ 3.00

220

220B0408
ref: 220

SCREW-PAN-CROS

€ 0.50

220A

220B0416
ref: 220A

SCREW-PAN-CROS

€ 2.00

461

461F0400
ref: 461

WASHER-SPRING,4MM

€ 0.50

670

670B1509
ref: 670

O RING,9MM

€ 1.00
