CHASSIS ELECTRICAL EQUIPMENT ('8

KE175-D4 KE175 1982 USA CANADA

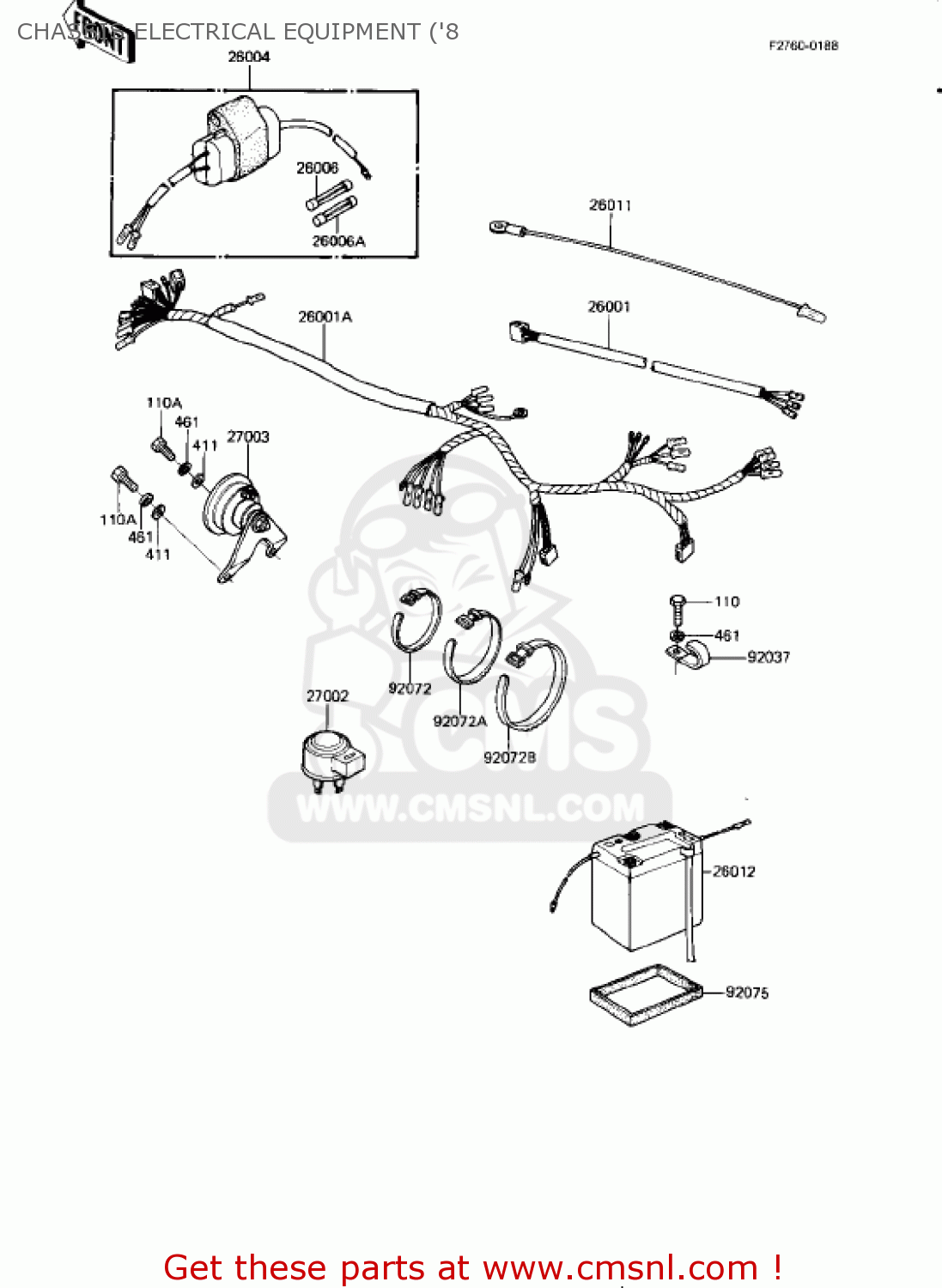

Chassis electrical equipment ('8 diagram KE175-D4 KE175 1982 USA CANADA

CHASSIS ELECTRICAL EQUIPMENT ('8 KE175-D4 KE175 1982 USA CANADA

CHASSIS ELECTRICAL EQUIPMENT ('8 KE175-D4 KE175 1982 USA CANADA

prices are in EUR

ref

part #

description

quantity

26001

260011007
ref: 26001

HARNESS,TAIL LAMP

€ 10.50

26001A

260011049
ref: 26001A

WIRING HARNESS,MAIN

€ 116.50

26004

260041010
ref: 26004

FUSE-ASSY

€ 19.50

26006

260061002
ref: 26006

FUSE,10A,L=30M/M

€ 3.00

26006A

260061003
ref: 26006A

FUSE,15A,L=30M/M

€ 3.00

26011

26011093
ref: 26011

WIRE-LEAD

€ 6.00

26012

K260121016
ref: 26012

BATTERY,GS,6N6-1C

€ 12.50

27002

27002013
ref: 27002

RELAY-ASSY,TURN SIGNA

€ 27.00

27003

270031008
ref: 27003

HORN

€ 36.00

92037

920371069
ref: 92037

CLAMP,L=60

€ 1.50

92072

92072030
ref: 92072

BAND,SHORT

€ 3.00

92072A

92072031
ref: 92072A

BAND,MIDDLE

€ 3.00

92072B

92072032
ref: 92072B

BAND,LONG

€ 3.00

92075

32103023
ref: 92075

DAMPER,BATTERY BOTTOM

€ 2.50

110

112G0612
ref: 110

BOLT-UPSET

€ 2.50

110A

112G0616
ref: 110A

BOLT UPSET,6X16

€ 1.00

411

411B0600
ref: 411

WASHER-PLAIN,6MM

€ 0.50

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50
