Genuine KE Kawasaki Parts delivered quickly!


CRANKSHAFT/PISTON ('80-'81 KE175

KE175-D4 KE175 1982 USA CANADA

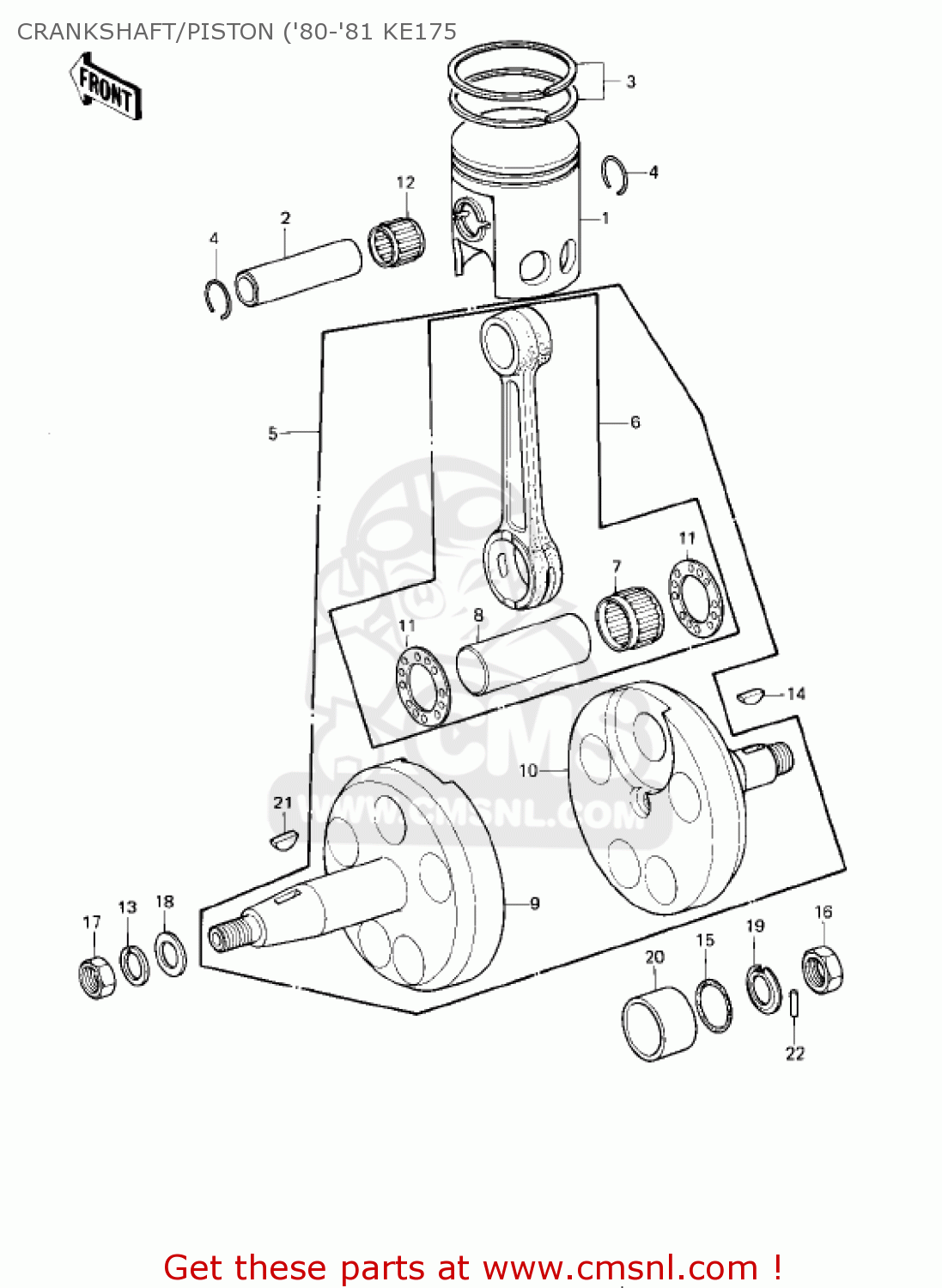

Crankshaft/piston ('80-'81 ke175 diagram KE175-D4 KE175 1982 USA CANADA

CRANKSHAFT/PISTON ('80-'81 KE175 KE175-D4 KE175 1982 USA CANADA
CRANKSHAFT/PISTON ('80-'81 KE175 KE175-D4 KE175 1982 USA CANADA
CRANKSHAFT/PISTON ('80-'81 KE175 KE175-D4 KE175 1982 USA CANADA
prices are in EUR
ref
part #
description
quantity
1
130011041
ref: 1
PISTON-ENGINE,STD
130011041
€ 51.50
2
130021004
ref: 2
PIN-PISTON
130021004
€ 5.00
3
130085024
ref: 3
RING-SET-PISTON,STD
130085024
€ 50.00
4
92036004
ref: 4
CIRCLIP-PISTON PIN
92036004
€ 0.50
5
130311011
ref: 5
CRANKSHAFT-COMP
€ 386.00
6
130445012
ref: 6
CONNECTING ROD ASSY
130445012
€ 113.50
7
13034042
ref: 7
BEARING-NEEDLE,22VS29
13034042
€ 18.00
8
13035022
ref: 8
CRANK PIN
13035022
€ 17.50
9
130371012
ref: 9
CRANKSHAFT,LH
€ 192.50
10
130371013
ref: 10
CRANKSHAFT,RH
€ 192.50
11
92026011
ref: 11
SPACER,22.5X37X1.0
92026011
€ 6.50
12
920461038
ref: 12
BEARING-NEEDLE,KBK16X
920461038
€ 17.00
13
461F1400
ref: 13
WASHER-SPRING,14MM
461F1400
€ 0.50
14
510A4200
ref: 14
KEY-WOODRUFF
510A4200
€ 1.50
15
670B2020
ref: 15
O RING,20MM
670B2020
€ 1.00
16
92015019
ref: 16
NUT,18MM
92015019
€ 4.00
17
92015043
ref: 17
NUT,14MM
92015043
€ 3.50
18
92022172
ref: 18
WASHER,14.5X25X3.6
92022172
€ 6.50
19
920221231
ref: 19
WASHER,LOCK,18MM
€ 3.00
20
921431370
ref: 20
COLLAR,25X32X10.5
921431370
€ 9.50
21
92038001
ref: 21
WOODRUFF KEY
92038001
€ 3.00
22
92042051
ref: 22
PIN,DOWEL,2.5X14.8
92042051
€ 2.00
