SWING ARM/SHOCK ABSORBERS ('82-'

KE175-D4 KE175 1982 USA CANADA

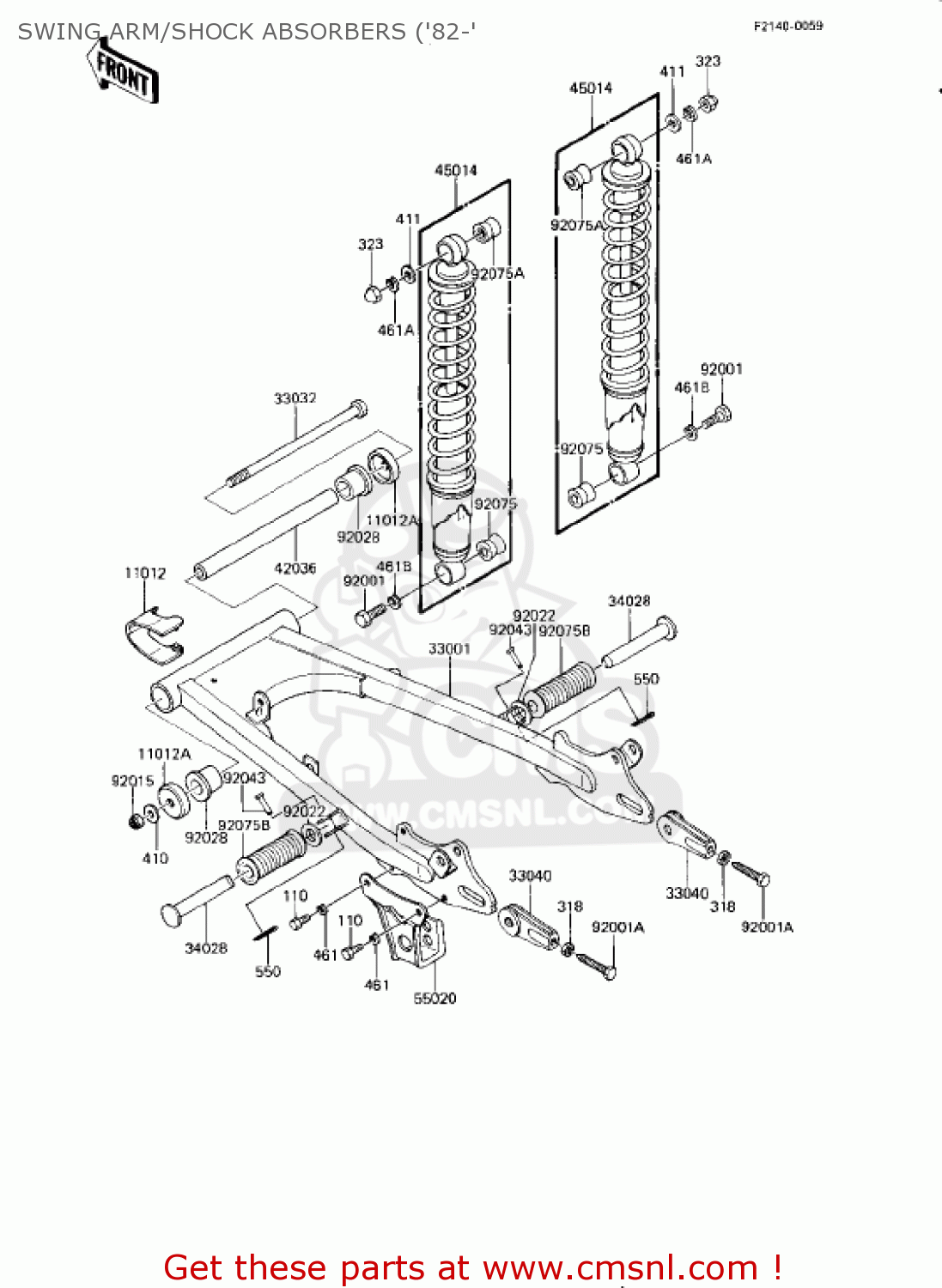

Swing arm/shock absorbers ('82-' diagram KE175-D4 KE175 1982 USA CANADA

SWING ARM/SHOCK ABSORBERS ('82-' KE175-D4 KE175 1982 USA CANADA

SWING ARM/SHOCK ABSORBERS ('82-' KE175-D4 KE175 1982 USA CANADA

prices are in EUR

ref

part #

description

quantity

11012

550201063
ref: 11012

GUARD,CHAIN,FR

€ 8.00

11012A

110121036
ref: 11012A

CAP,SWING ARM

€ 9.50

33001

330011061
ref: 33001

SWING ARM

€ 186.00

33032

330321005
ref: 33032

SHAFT-SWING ARM

€ 24.00

33040

330401010
ref: 33040

ADJUSTER-CHAIN

€ 14.00

34028

34028009
ref: 34028

BAR-REAR FOOTREST

€ 24.00

42036

420361019
ref: 42036

SLEEVE,SWING ARM

€ 35.00

45014

450141137
ref: 45014

SHOCKABSORBER,RR

€ 145.50

55020

550201026
ref: 55020

GUARD,CHAIN,RR

€ 15.50

92001

920011252
ref: 92001

BOLT,HEX HEAD,10X35

€ 3.50

92001A

920011399
ref: 92001A

BOLT,8X50

€ 6.00

92015

92019009
ref: 92015

NUT,LOCK,12MM

€ 5.00

92022

92022199
ref: 92022

WASHER,20X30X2.3

€ 5.00

92028

920281027
ref: 92028

BUSHING,L=40

€ 15.00

92043

920431464
ref: 92043

PIN

€ 5.50

92075

920751216
ref: 92075

BUSHING,SHOCK ABSORBR

€ 12.00

92075A

920751217
ref: 92075A

DAMPER,SHOCKABSORBER,

€ 10.00

92075B

92076024
ref: 92075B

DAMPER,STEP

€ 14.50

110

112G0612
ref: 110

BOLT-UPSET

€ 2.50

318

318B0800
ref: 318

NUT,8MM

€ 0.50

323

323N0800
ref: 323

NUT-CAP-SMALL,8MM

€ 2.50

410

410B1200
ref: 410

WASHER-PLAIN-SMALL,12

€ 0.50

411

411B0800
ref: 411

WASHER-PLAIN,8MM

€ 0.50

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50

461A

461F0800
ref: 461A

WASHER-SPRING,8MM

€ 0.50

461B

461F1000
ref: 461B

WASHER-SPRING,10MM

€ 0.50

550

550D2015
ref: 550

PIN-COTTER,2.0X15

€ 1.00
