IGNITION/GENERATOR/REGULATOR
KE175-D4 KE175 1982 USA CANADA

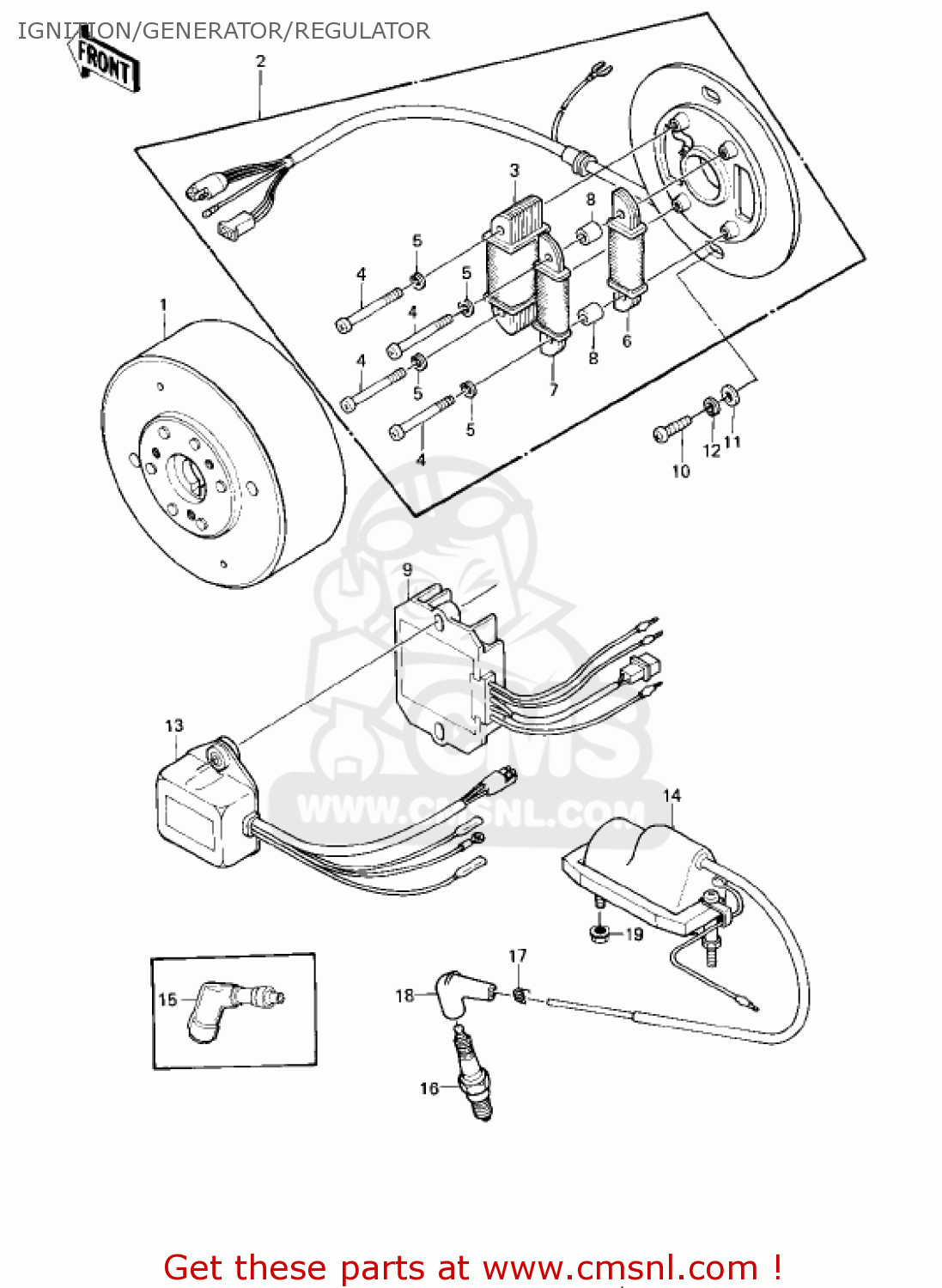

Ignition/generator/regulator diagram KE175-D4 KE175 1982 USA CANADA
IGNITION/GENERATOR/REGULATOR KE175-D4 KE175 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
210501013
ref: 1
FLYWHEEL,MAGNETO
€ 608.50
2
210031031
ref: 2
STATOR ASSEMBLY,MAGNETO
€ 216.50
3
590311003
ref: 3
COIL-CHARGING
€ 73.00
4
220B0540
ref: 4
SCREW-PAN-CROS
€ 2.00
5
461F0500
ref: 5
WASHER-SPRING,5MM
€ 0.50
6
210491006
ref: 6
COIL-EXCITING
€ 80.50
7
590261008
ref: 7
COIL-PULSING
€ 99.50
8
920271221
ref: 8
COLLAR,COIL
€ 5.50
9
210661012
ref: 9
REGULATOR-VOLTAGE
€ 148.50
10
220B0620
ref: 10
SCREW-PAN HEAD,6X20
€ 2.50
11
410B0600
ref: 11
WASHER-PLAIN-SMALL,6M
€ 0.50
12
461F0600
ref: 12
WASHER-SPRING,6MM
€ 0.50
13
211191003
ref: 13
IGNITER
€ 300.00
14
211211012
ref: 14
COIL IGNITION
€ 93.00
15
21160005
ref: 15
USE FOR CANADIAN MAR
CAP-ASSY-PLUG
€ 29.00
16
B7ESA
ref: 16
SPARK PLUG, B7ES
€ 5.00
17
92101001
ref: 17
SPRING-SPARK PLUG CAP
€ 1.50
18
21130009
ref: 18
CAP-SPARK PLUG
€ 15.00
19
920151078
ref: 19
NUT,6M/M
€ 1.50
