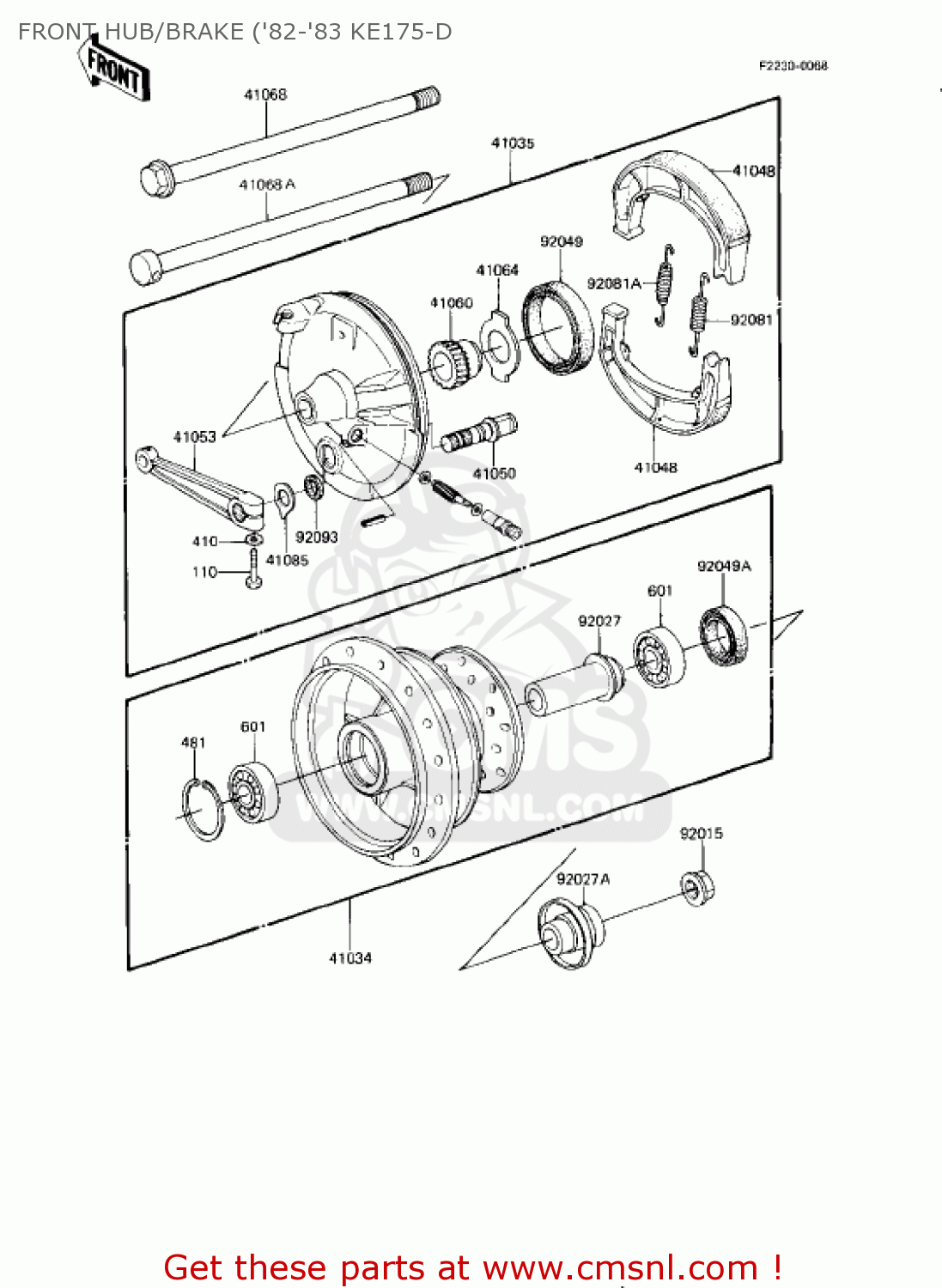

FRONT HUB/BRAKE ('82-'83 KE175-D

KE175-D4 KE175 1982 USA CANADA

Front hub/brake ('82-'83 ke175-d diagram KE175-D4 KE175 1982 USA CANADA

FRONT HUB/BRAKE ('82-'83 KE175-D KE175-D4 KE175 1982 USA CANADA
FRONT HUB/BRAKE ('82-'83 KE175-D KE175-D4 KE175 1982 USA CANADA
FRONT HUB/BRAKE ('82-'83 KE175-D KE175-D4 KE175 1982 USA CANADA
prices are in EUR
ref
part #
description
quantity
41034
410341014
ref: 41034
DRUM ASSY,FRONT BRAKE
410341014
€ 201.50
41035
410351045
ref: 41035
PANEL ASSY,FRONT BRAK
€ 191.00
41048
41048015
ref: 41048
SHOE,BRAKE (MCA)
41048015
€ 14.50
41050
410501010
ref: 41050
CAM,BRAKE,FRONT
410501010
€ 17.00
41053
410531012
ref: 41053
LEVER-BRAKE CAM
€ 33.50
41060
410601017
ref: 41060
GEAR,SPEEDOMETER,24T
€ 14.00
41064
41064006
ref: 41064
RECEIVER-SPEEDOMETER
41064006
€ 4.50
41068
410681095
ref: 41068
AXLE,FR,L=215
€ 19.50
41068A
410681095
ref: 41068A
AXLE,FR,L=215
€ 19.50
41085
410851003
ref: 41085
INDICATOR,BRAKE SHOE
€ 7.50
92015
920151156
ref: 92015
NUT,12MM
920151156
€ 4.50
92027
920271097
ref: 92027
COLLAR,L=34
920271097
€ 10.00
92027A
920271098
ref: 92027A
COLLAR,FRONT AXLE
920271098
€ 13.00
92049
92050010
ref: 92049
OIL SEAL-F BRK PANEL
92050010
€ 13.00
92049A
92050059
ref: 92049A
OIL SEAL,FR BK DRUM
92050059
€ 13.00
92081
920811766
ref: 92081
SPRING,BRAKE SHOE
920811766
€ 5.50
92081A
920811550
ref: 92081A
SPRING,BRAKE SHOE
920811550
€ 6.00
92093
41051001
ref: 92093
DUST SHIELD-BRAKE CAM
41051001
€ 2.50
110
112G0625
ref: 110
BOLT-UPSET,6X25
112G0625
€ 4.00
410
410B0600
ref: 410
WASHER-PLAIN-SMALL,6M
410B0600
€ 0.50
481
481J3700
ref: 481
CIRCLIP-TYPE-C,37MM
481J3700
€ 1.50
601
601B6301
ref: 601
BEARING-BALL,#6301C3
601B6301
€ 13.00
