Genuine KE Kawasaki Parts delivered quickly!


CYLINDER HEAD/CYLINDER/REED VALV

KE175-D4 KE175 1982 USA CANADA

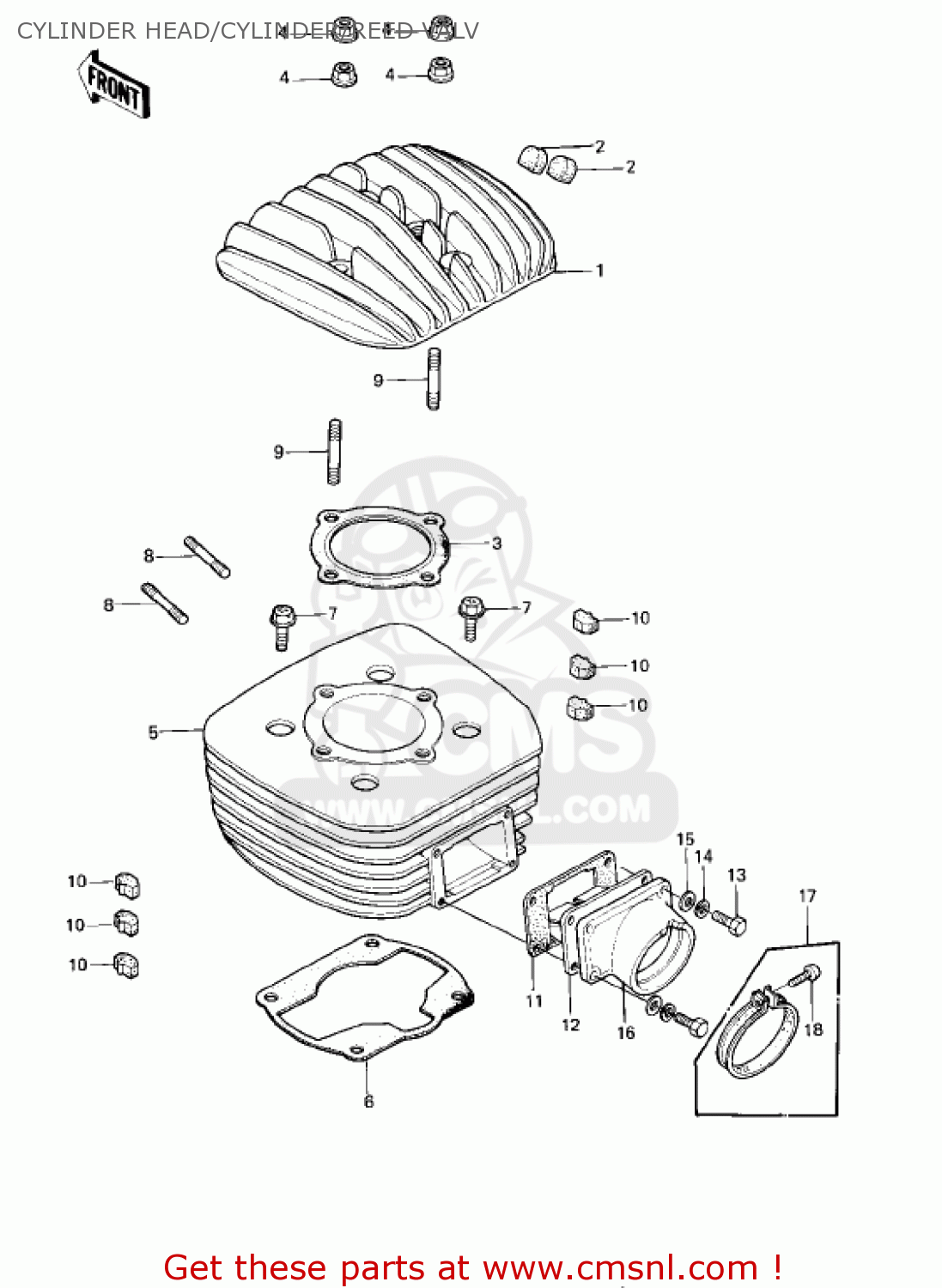

Cylinder head/cylinder/reed valv diagram KE175-D4 KE175 1982 USA CANADA

CYLINDER HEAD/CYLINDER/REED VALV KE175-D4 KE175 1982 USA CANADA
CYLINDER HEAD/CYLINDER/REED VALV KE175-D4 KE175 1982 USA CANADA
CYLINDER HEAD/CYLINDER/REED VALV KE175-D4 KE175 1982 USA CANADA
prices are in EUR
ref
part #
description
quantity
1
110011034
ref: 1
HEAD-CYLINDER
€ 169.00
2
920751176
ref: 2
DAMPER,CYLINDER HEAD
920751176
€ 2.50
3
110041017
ref: 3
GASKET,CYLINDER HEAD (MCA)
110041017
€ 14.50
4
920151014
ref: 4
NUT,8MM
920151014
€ 0.50
5
110051072
ref: 5
CYLINDER-ENGINE,ELECT
110051072
€ 447.00
6
110091060
ref: 6
GASKET,CYLINDER BASE (MCA)
110091060
€ 4.00
7
131G0870
ref: 7
BOLT,FLANGED,8X70
€ 1.50
8
920041008
ref: 8
STUD, 8X25
920041008
€ 3.50
9
920041009
ref: 9
STUD, 8X35
920041009
€ 4.00
10
92075304
ref: 10
DAMPER RUBBER
€ 2.00
11
110091109
ref: 11
GASKET,REED VALVE (MCA)
110091109
€ 3.50
12
120211005
ref: 12
VALVE-ASSY-REED
120211005
€ 90.50
13
112G0625
ref: 13
BOLT-UPSET,6X25
112G0625
€ 4.00
14
461F0600
ref: 14
WASHER-SPRING,6MM
461F0600
€ 0.50
15
411B0600
ref: 15
WASHER-PLAIN,6MM
411B0600
€ 0.50
16
160651025
ref: 16
HOLDER-CARBURETOR
160651025
€ 52.00
17
92037077
ref: 17
CLAMP,HOLDER
92037077
€ 7.00
18
92011037
ref: 18
SCREW,PAN HEAD 5X25
€ 2.50
up
