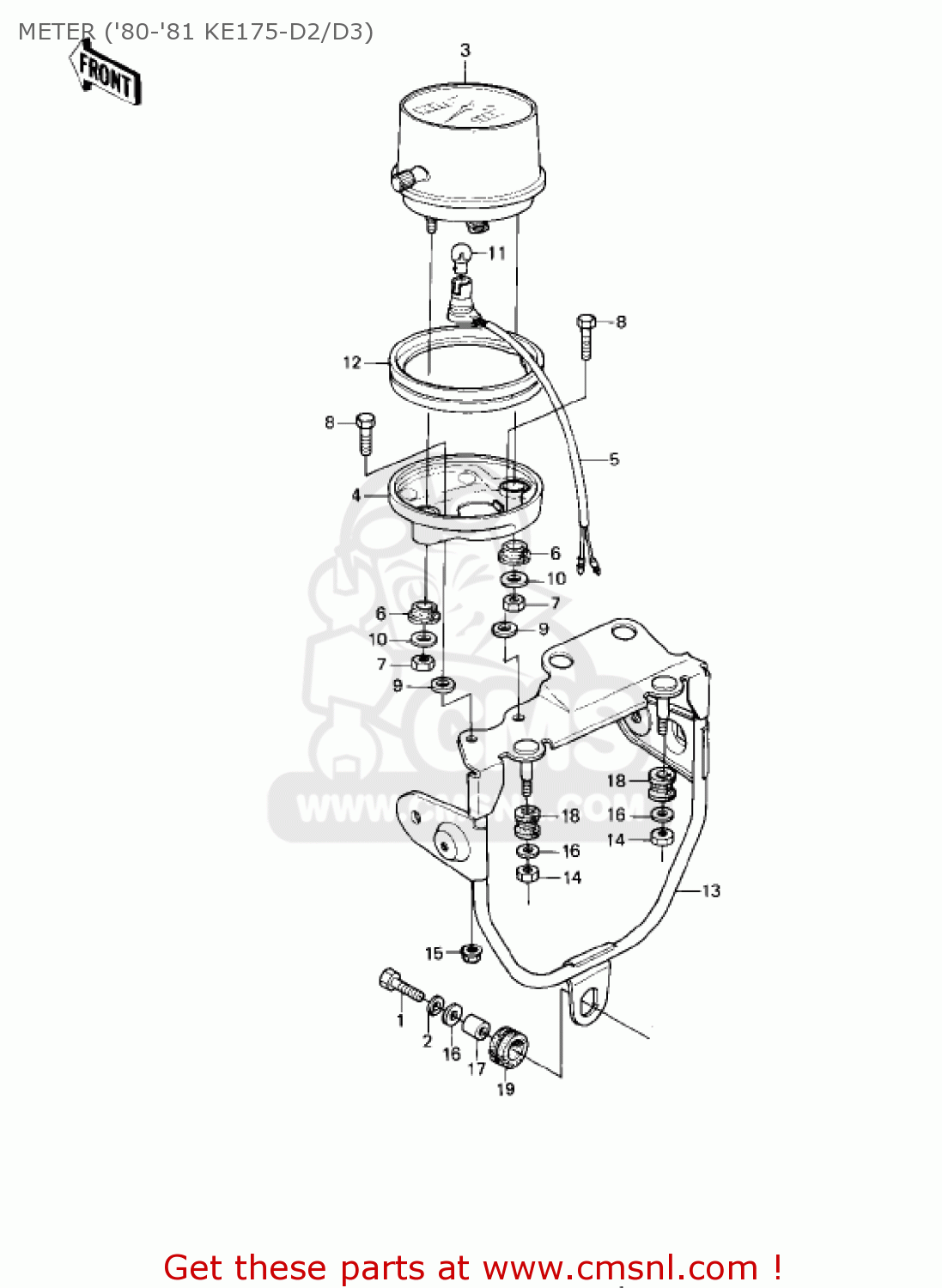

METER ('80-'81 KE175-D2/D3)
KE175-D4 KE175 1982 USA CANADA
Meter ('80-'81 ke175-d2/d3) diagram KE175-D4 KE175 1982 USA CANADA
METER ('80-'81 KE175-D2/D3) KE175-D4 KE175 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
112G0625
ref: 1
BOLT-UPSET,6X25
€ 4.00
2
461F0600
ref: 2
WASHER-SPRING,6MM
€ 0.50
3
250051049
ref: 3
USA
SPEEDOMETER,MPH
€ 221.50
3
250051050
ref: 3
CANADA
SPEEDOMETER,KPH
€ 240.00
4
140251075
ref: 4
COVER,METER
€ 18.50
5
25010021
ref: 5
SOCKET-ASSY,SPEEDOMET
€ 12.00
6
25019023
ref: 6
DAMPER RUBBER,METER
€ 2.50
7
311B0500
ref: 7
NUT-HEX
€ 0.50
8
92003204
ref: 8
BOLT
€ 3.00
9
920221039
ref: 9
WASHER,METER,6MM
€ 2.00
10
92022263
ref: 10
WASHER,PLAIN,6MM
€ 1.50
11
92069053
ref: 11
BULB 6V 3W
€ 3.00
12
920751102
ref: 12
DAMPER,METER
€ 13.00
13
250081009
ref: 13
BRACKET-METER
€ 31.00
14
311B0600
ref: 14
NUT,6MM
€ 0.50
15
920151078
ref: 15
NUT,6M/M
€ 1.50
16
92022125
ref: 16
WASHER,6.5X20X1.6
€ 1.00
17
92027241
ref: 17
COLLAR
€ 4.50
18
92075024
ref: 18
DAMPER
€ 2.50
19
92075209
ref: 19
DAMPER RUBBER
€ 3.00
