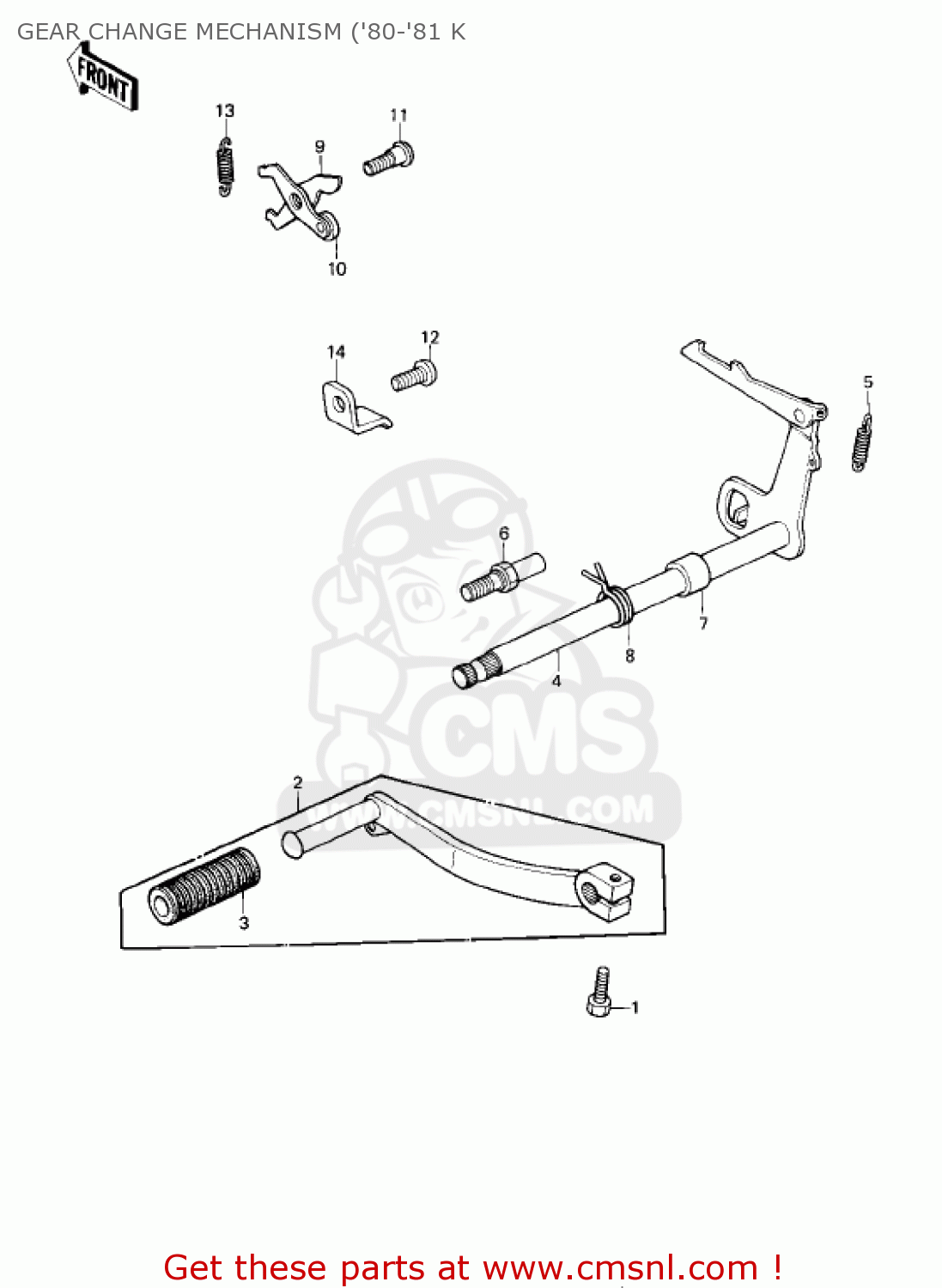

GEAR CHANGE MECHANISM ('80-'81 K

KE175-D4 KE175 1982 USA CANADA

Gear change mechanism ('80-'81 k diagram KE175-D4 KE175 1982 USA CANADA

prices are in EUR

ref

part #

description

quantity

112G0620
ref: 1

BOLT 6X20

€ 1.00

132421273
ref: 2

LEVER-ASSY-CHANGE,PED

€ 25.50

13157004
ref: 3

RUBBER-CHANGE PEDAL

€ 4.00

131611017
ref: 4

LEVER-COMP-CHANGE SHA

€ 40.00

92081156
ref: 5

SPRING,CHANGE LEVER

€ 4.00

920011401
ref: 6

BOLT,RETURN SPRING

€ 3.00

92027189
ref: 7

COLLAR,13X18X11.5

€ 6.00

920811129
ref: 8

SPRING,TENTION

€ 6.50

131681058
ref: 9

LEVER,GEAR SET

€ 3.50

132361004
ref: 10

LEVER-COMP,NEUTRAL

€ 4.00

92011023
ref: 11

SCREW-PAN HEAD

€ 2.50

220B0612
ref: 12

SCREW-PAN HEAD,6X12

€ 1.00

920811237
ref: 13

SPRING,CHANGE LEVER

€ 3.00

131691201
ref: 14

PLATE,DRUM POSITION

€ 1.00

131691253
ref: 14
E/NO.007909~

PLATE,GEAR CHANGE

€ 2.50
