CYLINDER HEAD/CYLINDER/REED VALV

KE175-D4 KE175 1982 USA CANADA

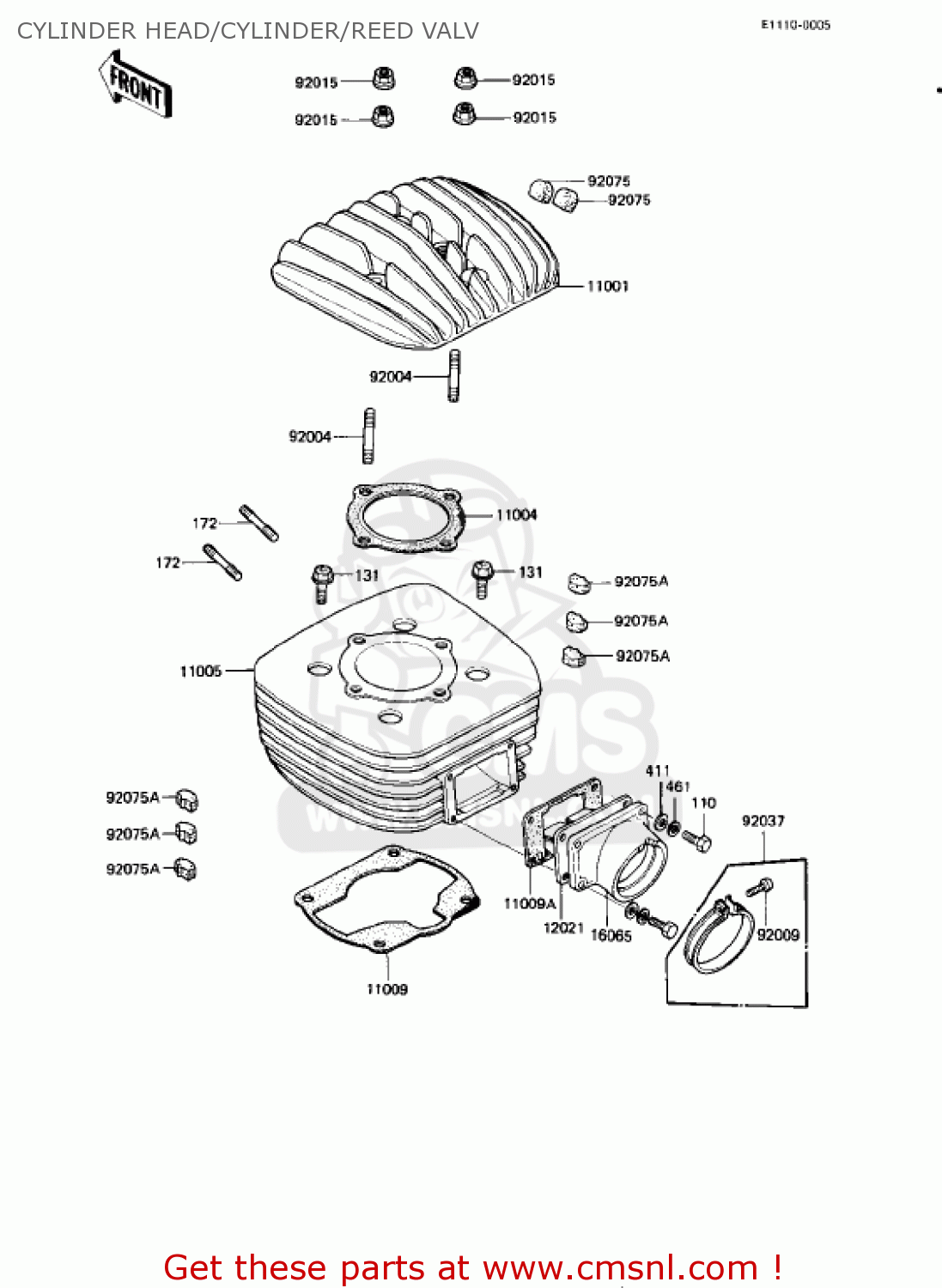

Cylinder head/cylinder/reed valv diagram KE175-D4 KE175 1982 USA CANADA

CYLINDER HEAD/CYLINDER/REED VALV KE175-D4 KE175 1982 USA CANADA
CYLINDER HEAD/CYLINDER/REED VALV KE175-D4 KE175 1982 USA CANADA
CYLINDER HEAD/CYLINDER/REED VALV KE175-D4 KE175 1982 USA CANADA
prices are in EUR
ref
part #
description
quantity
11001
110011034
ref: 11001
HEAD-CYLINDER
€ 169.00
11004
110041017
ref: 11004
GASKET,CYLINDER HEAD (MCA)
110041017
€ 14.50
11005
110051072
ref: 11005
CYLINDER-ENGINE,ELECT
110051072
€ 447.00
11009
110091060
ref: 11009
GASKET,CYLINDER BASE (MCA)
110091060
€ 4.00
11009A
110091109
ref: 11009A
GASKET,REED VALVE (MCA)
110091109
€ 3.50
12021
120211005
ref: 12021
VALVE-ASSY-REED
120211005
€ 90.50
16065
160651025
ref: 16065
HOLDER-CARBURETOR
160651025
€ 52.00
92004
920041009
ref: 92004
STUD, 8X35
920041009
€ 4.00
92009
92011037
ref: 92009
SCREW,PAN HEAD 5X25
€ 2.50
92015
920151014
ref: 92015
NUT,8MM
920151014
€ 0.50
92037
92037077
ref: 92037
CLAMP,HOLDER
92037077
€ 7.00
92075
920751176
ref: 92075
DAMPER,CYLINDER HEAD
920751176
€ 2.50
92075A
92075304
ref: 92075A
DAMPER RUBBER
€ 2.00
110
112G0625
ref: 110
BOLT-UPSET,6X25
112G0625
€ 4.00
131
131G0870
ref: 131
BOLT,FLANGED,8X70
€ 1.50
172
920041008
ref: 172
STUD, 8X25
920041008
€ 3.50
411
411B0600
ref: 411
WASHER-PLAIN,6MM
411B0600
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
461F0600
€ 0.50
