MUFFLER ('80-'81 KE175-D2/D3)
KE175-D4 KE175 1982 USA CANADA

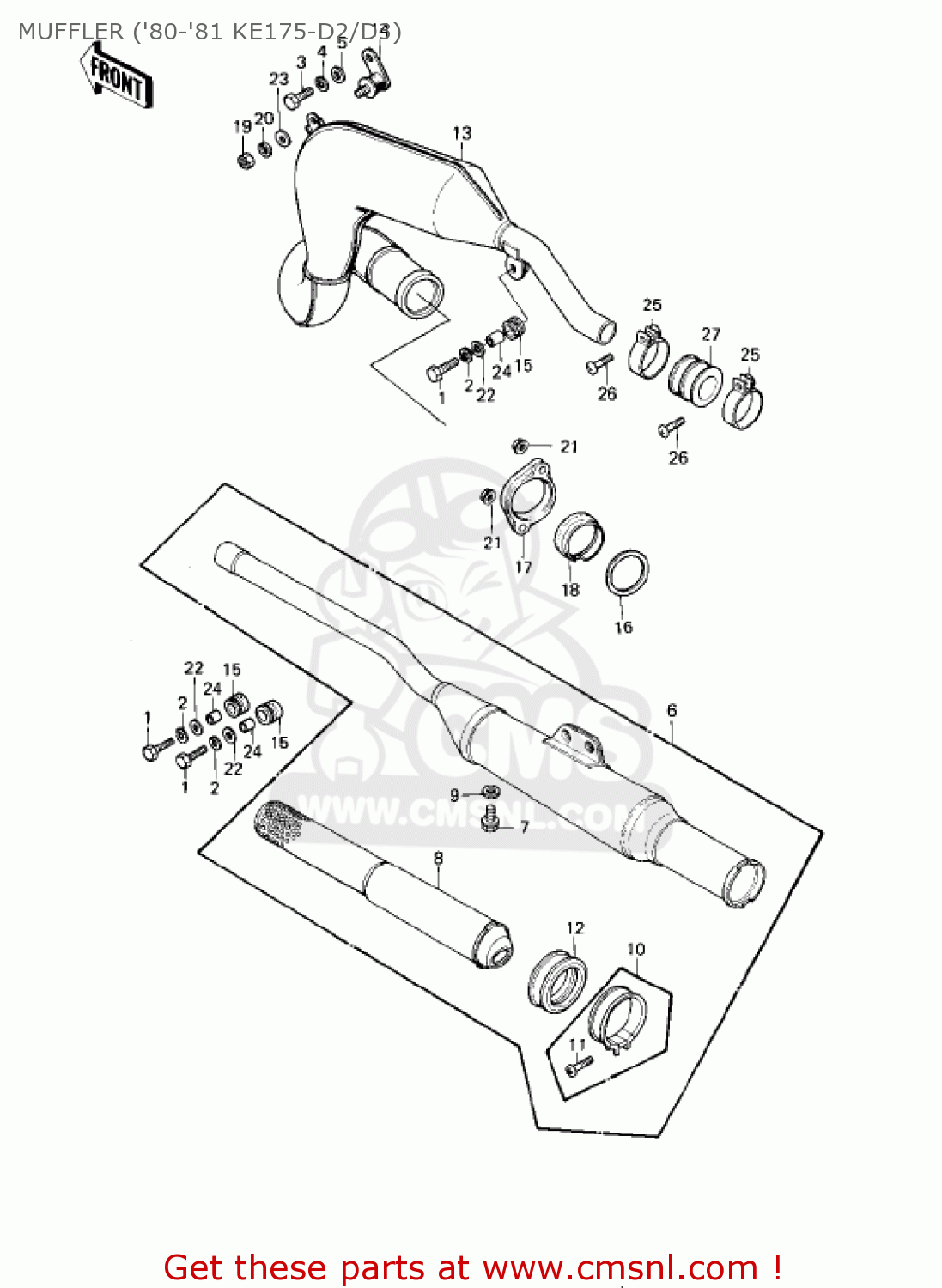

Muffler ('80-'81 ke175-d2/d3) diagram KE175-D4 KE175 1982 USA CANADA
MUFFLER ('80-'81 KE175-D2/D3) KE175-D4 KE175 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
114G0828
ref: 1
BOLT-SMALL,8X28
€ 2.50
2
461F0800
ref: 2
WASHER-SPRING,8MM
€ 0.50
3
115G0816
ref: 3
BOLT-HEX,HEAD 8X16
€ 0.50
4
461F0800
ref: 4
WASHER-SPRING,8MM
€ 0.50
5
410B0800
ref: 5
WASHER-PLAIN-SMALL,8M
€ 0.50
6
180011153
ref: 6
MUFFLER ASSY
€ 223.50
7
110B0608
ref: 7
BOLT-HEX HEAD,6X8
€ 0.50
8
490991006
ref: 8
BAFFLE PIPE,MUFFLER
€ 77.00
9
92022077
ref: 9
WASHER,6.1X12X1
€ 0.50
10
92037171
ref: 10
CLAMP
€ 9.00
11
220B0535
ref: 11
SCREW-PAN-CROS
€ 2.00
12
920931013
ref: 12
SEAL,MUFFLER
€ 7.50
13
180061050
ref: 13
BODY,MUFFLER
€ 215.50
14
18061060
ref: 14
BRACKET,MUFFLER
€ 16.50
15
18063005
ref: 15
DAMPER,MUFFLER
€ 3.00
16
18067008
ref: 16
GASKET-EXHAUST PIPE (NAS)
€ 10.50
17
18069049
ref: 17
HOLDER-EXHAUST PIPE
€ 27.50
18
18070007
ref: 18
COLLAR,EXHAUST PIPE H
€ 6.50
19
317B0800
ref: 19
NUT,8M/M
€ 0.50
20
461F0800
ref: 20
WASHER-SPRING,8MM
€ 0.50
21
920151014
ref: 21
NUT,8MM
€ 0.50
22
920221564
ref: 22
WASHER
€ 2.50
23
920221561
ref: 23
WASHER,8.5X20X1.6
€ 2.50
24
92027102
ref: 24
COLLAR
€ 1.00
25
920371242
ref: 25
CLAMP,CARBURETOR HOLD
€ 6.50
26
220C0635
ref: 26
SCREW-PAN-CROS,6X35,B
€ 3.50
27
920931012
ref: 27
SEAL,EXHAUST PIPE
€ 24.00
